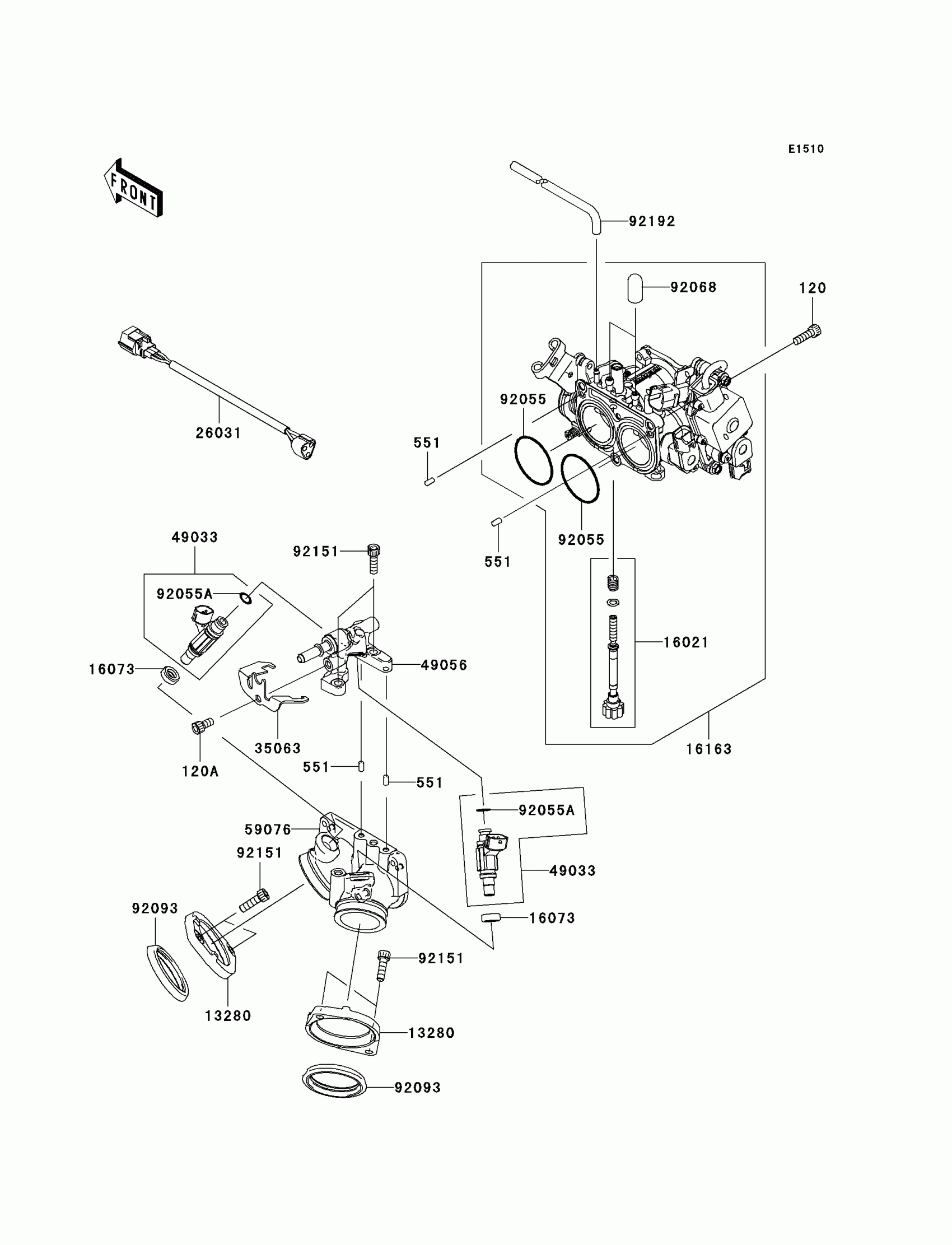

Kawasaki Vulcan 900 Classic LT Throttle(D6F/D7F) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.49

120A

BOLT-SOCKET,6X12

120CB0612

$2.05

551

PIN-DOWEL

551R0408

$4.27

13280

HOLDER

13280-1154

$22.39

16021

SCREW-THROTTLE STOP

16021-0016

$114.27

16073

INSULATOR

16073-3707

$4.90

16163

THROTTLE-ASSY,TTK34

16163-0076

$983.29

26031

HARNESS

26031-0472

$43.08

35063

STAY

35063-0240

$7.42

49033

NOZZLE-INJECTION

49033-0011

$83.76

49056

PIPE-INJECTION

49056-0011

$131.39

59076

MANIFOLD-INTAKE

59076-0003

$162.15

92055

RING-O

92055-0118

$13.35

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92068

PLUG,12X25

92068-006

$3.39

92093

SEAL

92093-0072

$19.01

92151

BOLT,SOCKET,6X20

92151-3774

$1.56

92192

TUBE,SENSOR-THROBO

92192-0308

$7.47
