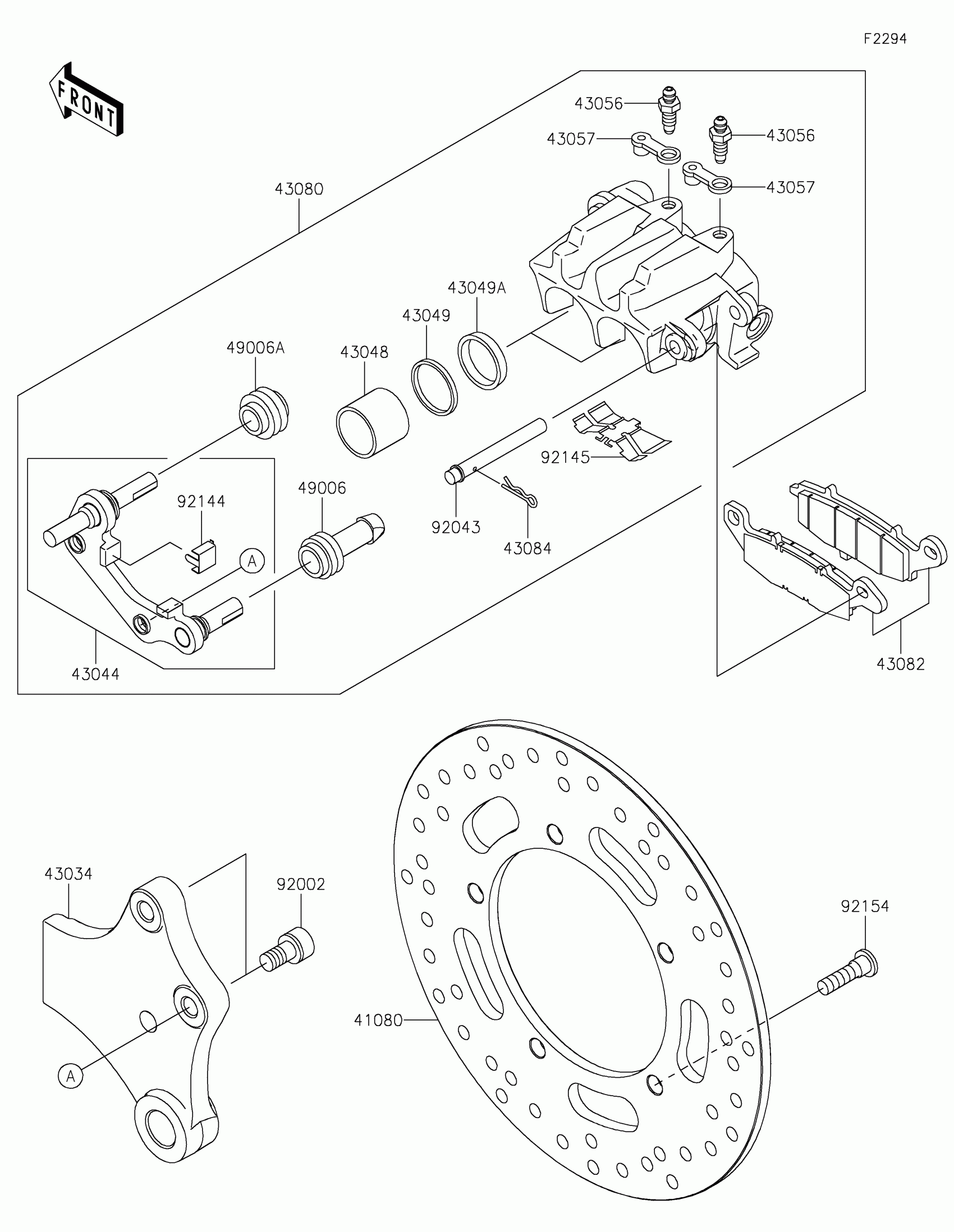

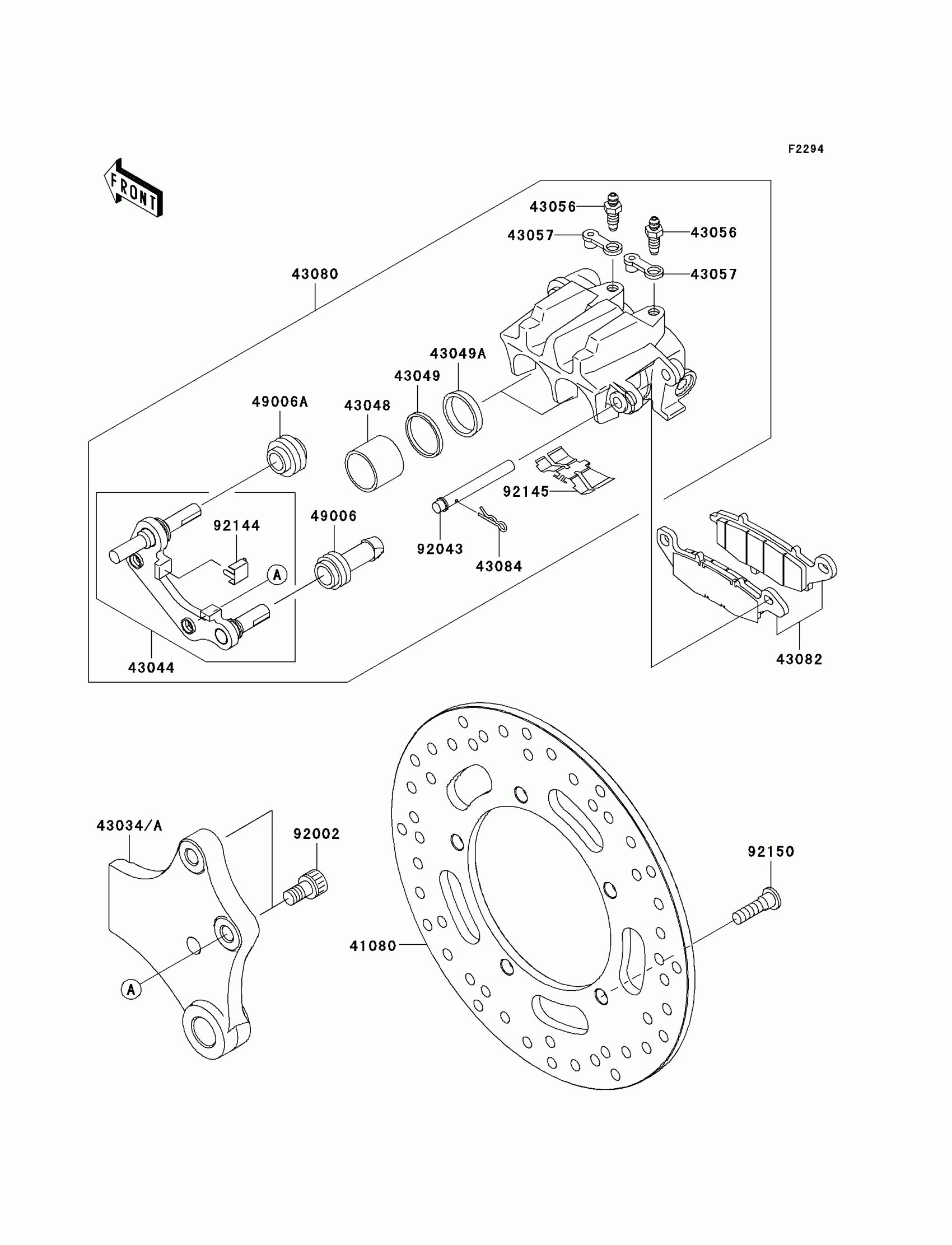

Kawasaki Vulcan® 900 Classic LT Rear Brake Diagram

Description

Price

41080

DISC,RR,SILVER

41080-0093-CM

$376.58

43034A

HOLDER-BRAKE,REAR CALIPER

43034-0061

$112.70

43044

HOLDER-COMP-CALIPER,RR

43044-1134

$179.57

43048

PISTON-CALIPER

43048-1094

$60.55

43049

PACKING

43049-1068

$7.48

43049A

PACKING,PISTON SEAL

43049-1092

$7.91

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5098-DJ

$378.82

43082

PAD-ASSY-BRAKE

43082-0063

$56.63

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92002

BOLT,SOCKET,10X17

92002-1713

$5.61

92043

PIN,PAD

92043-1640

$4.78

92144

SPRING,STOPPER

92144-1831

$4.14

92145

SPRING,PAD

92145-1382

$12.32

92150

BOLT,SOCKET,8X30

92150-1771

$3.57
