2013 Kawasaki Vulcan 900 Classic (Canadian) Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2013 Kawasaki Vulcan 900 Classic (Canadian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

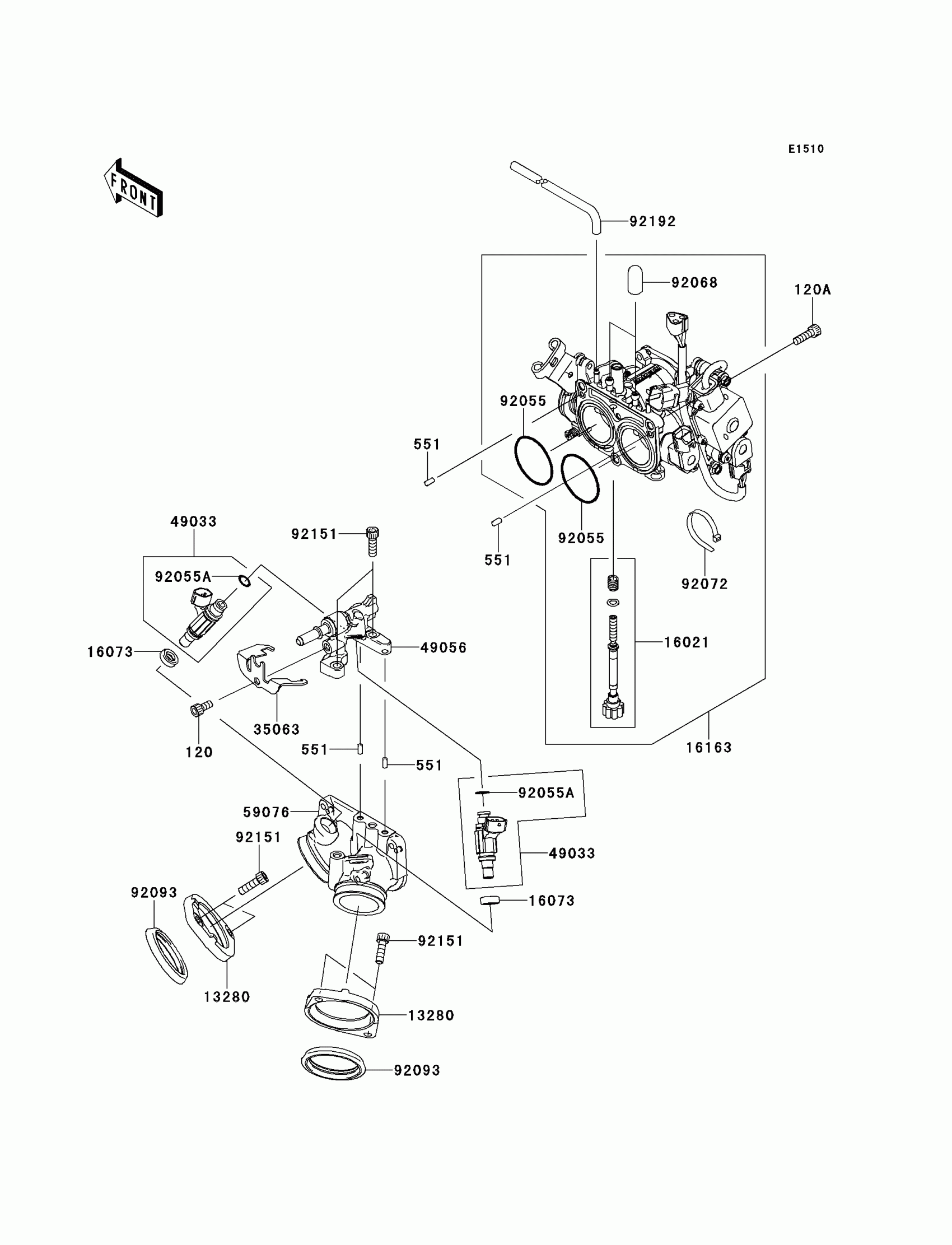

2013 Kawasaki Vulcan 900 Classic (Canadian) Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

120A

BOLT-SOCKET,6X20

120CA0620

1
Out of stock

551

PIN-DOWEL

551R0408

1
Out of stock

13280

HOLDER

13280-1154

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-0016

1
Out of stock

16073

INSULATOR

16073-3707

1
Out of stock

16163

THROTTLE-ASSY,TTK34

16163-0114

1
Out of stock

35063

STAY

35063-0240

1
Out of stock

49033

NOZZLE-INJECTION

49033-0011

1
Out of stock

49056

PIPE-INJECTION

49056-0018

1
Out of stock

59076

MANIFOLD-INTAKE

59076-0003

1
Out of stock

92055

RING-O

92055-0118

1
Out of stock

92055A

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92072

BAND,SUB-HARNESS

92072-0012

1
Out of stock

92093

SEAL

92093-0072

1
Out of stock

92151

BOLT,SOCKET,6X20

92151-3774

1
Out of stock

92192

TUBE,SENSOR-THROBO

92192-0308

1
Out of stock
