2013 Kawasaki Vulcan 900 Classic (Canadian) Generator Diagram

← All diagrams

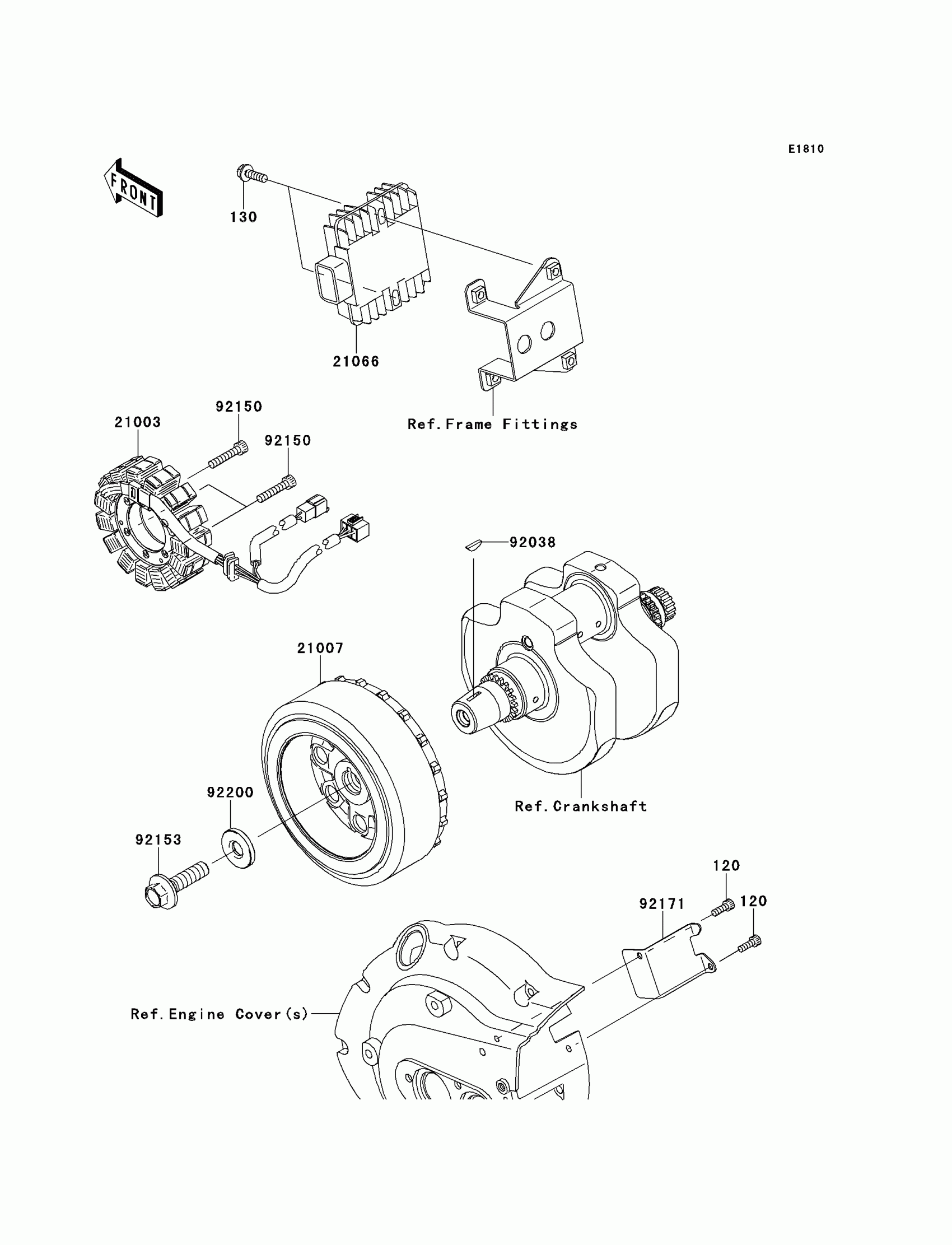

Find the part on the Generator diagram for your 2013 Kawasaki Vulcan 900 Classic (Canadian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Vulcan 900 Classic (Canadian) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X14

120CA0514

1

$4.44

In stock

130

BOLT-FLANGED,6X20

130BB0620

1

$0.50

In stock

21003

STATOR

21003-0053

1

$622.31

In stock

21007

ROTOR

21007-0076

1

$707.67

In stock

21066

REGULATOR-VOLTAGE

21066-0705

1

$162.47

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92150

BOLT,SOCKET,6X30

92150-1433

1

$3.87

In stock

92153

BOLT,FLANGED,12X45

92154-1357

1

$42.83

In stock

92171

CLAMP

92171-0563

1

$5.56

In stock

92200

WASHER,12X33X5

92200-0220

1
Out of stock
