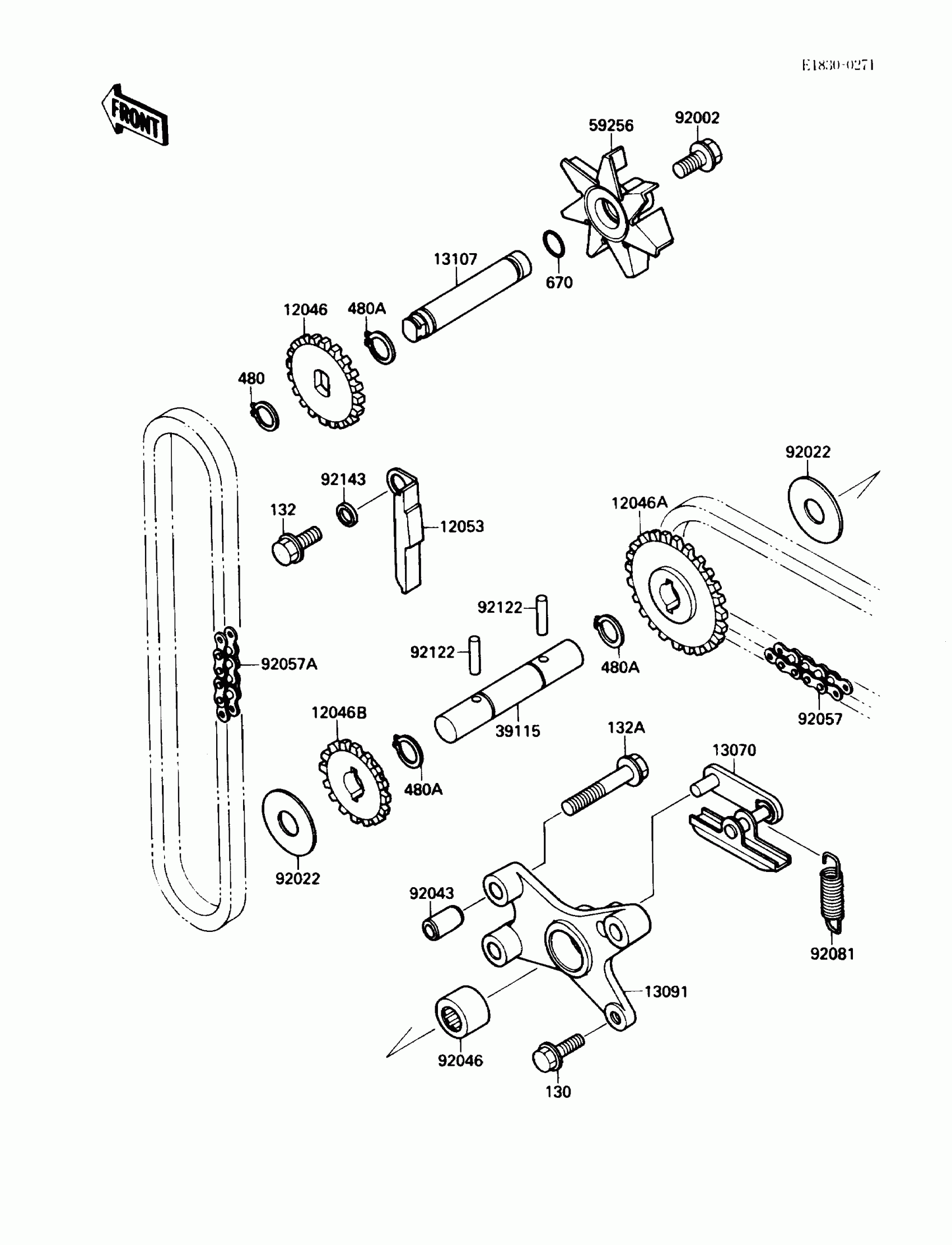

Kawasaki Vulcan 88 SE Water Pump Diagram

#

Description
Price

12046

SPROCKET,OIL PUMP,19T

12046-1079

$18.81

12046A

SPROCKET,CRANK IDLER,25T

12046-1096

$40.17

12046B

SPROCKET,IDLER,17T

12046-1097

$31.35

12053

GUIDE-CHAIN

12053-1227

$16.95

13070

GUIDE

13070-1178

$51.10

13091

HOLDER

13091-1471

$47.75

13107

SHAFT,IMPELLER

13107-1196

Unavailable

39115

SHAFT-IDLER

39115-1058

$29.00

59256

IMPELLER

59256-1066

$46.85

92002

BOLT,6X12

92002-1902

Unavailable

92022

WASHER,12X27.5X1.0

92022-1852

$4.51

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92057

CHAIN,BS25HX46L

92057-1230

$14.93

92057A

CHAIN,BS25HX44L

92057-1231

$11.60

92081

SPRING,IDLER SHAFT

92081-1791

$4.98

92122

ROLLER,3X15.8

92122-1126

$3.53

92143

COLLAR

92143-1123

$4.80

130

BOLT-FLANGED,5X14

130D0514

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132E0635

$4.61

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

480A

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

670

O RING,9MM

670D1509

$3.57
