Description

Price

11012

CAP

11012-1585

$7.73

11045

BRACKET,RESERVOIR

11045-1436

Unavailable

11045A

BRACKET,THERMOSTAT

11045-1437

Unavailable

14024

COVER,RESERVOIR

14024-1406

Unavailable

14024A

COVER,RADIATOR

14024-1516

Unavailable

14037

SCREEN

14037-1090

Unavailable

16160

BODY,THERMOSTAT,UPP

16160-1116

$174.32

26011

WIRE-LEAD

26011-1412

Unavailable

27010

SWITCH,FAN

27010-1167

$119.71

32099

CASE,THERMOSTAT

32099-1093

Unavailable

32102

PIPE,HEAD,FR

32102-1413

Unavailable

32102A

PIPE,HEAD,RR

32102-1414

Unavailable

32102B

PIPE,PUMP COVER-HOSE

32102-1415

Unavailable

39060

RADIATOR

39060-1077

$655.63

39062

HOSE-COOLING

39062-1125

$21.40

39062A

HOSE-COOLING,HEAD,FR

39062-1227

Unavailable

39062B

HOSE-COOLING,HEAD,RR

39062-1228

$49.08

39062C

HOSE-COOLING,THERMO-RADIATOR

39062-1229

$40.92

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1252

Unavailable

39062E

HOSE-COOLING

39062-1255

Unavailable

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1085

Unavailable

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1054

$47.60

53044

TRIM

53044-1199

Unavailable

59502

FAN-ASSY

59502-1071

Unavailable

92009

SCREW,TAPPING,6X16

92009-1436

$2.56

92009A

SCREW,TAPPING,6X30

92009-1481

$3.57

92015

NUT,6MM

92015-1758

$5.15

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92066

PLUG,DRAIN

92066-1293

Unavailable

92071

GROMMET

92071-1115

$4.14

92075

DAMPER

92075-1665

$6.56

92075A

DAMPER

92075-1920

Unavailable

92143

COLLAR,6.8X10X30

92027-209

Unavailable

92143A

COLLAR

92143-1063

$9.15

92170

CLAMP,COOLING HOSE

92170-1032

$24.03

92170A

CLAMP,COOLING HOSE

92170-1034

$16.98

92170B

CLAMP,COOLING HOSE

92170-1035

Unavailable

130

BOLT

130B0612

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132E0610

$3.57

132A

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132C

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

132D

BOLT-FLANGED-SMALL,6X10

132G0610

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

670

O RING,14MM

670B2014

$0.93

670A

O RING,18MM

670B2018

$1.08

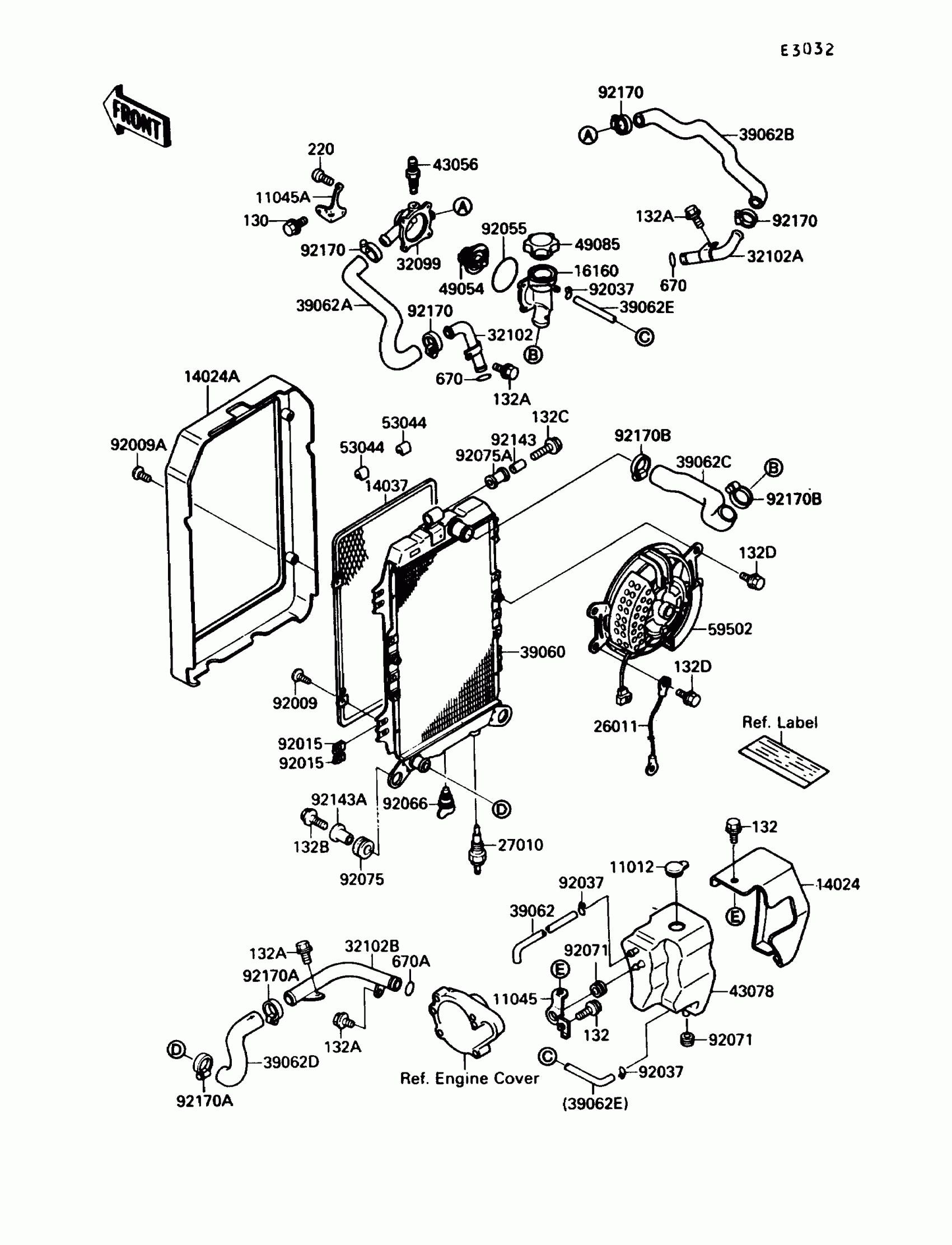

Kawasaki Vulcan 88 SE Radiator Diagram

CAP

BRACKET,RESERVOIR

BRACKET,THERMOSTAT

COVER,RESERVOIR

COVER,RADIATOR

SCREEN

BODY,THERMOSTAT,UPP

WIRE-LEAD

SWITCH,FAN

CASE,THERMOSTAT

PIPE,HEAD,FR

PIPE,HEAD,RR

PIPE,PUMP COVER-HOSE

RADIATOR

HOSE-COOLING

HOSE-COOLING,HEAD,FR

HOSE-COOLING,HEAD,RR

HOSE-COOLING,THERMO-RADIATOR

HOSE-COOLING,RADIATOR-PUMP

HOSE-COOLING

BREATHER

RESERVOIR

THERMOSTAT

CAP-ASSY-PRESSURE

TRIM

FAN-ASSY

SCREW,TAPPING,6X16

SCREW,TAPPING,6X30

NUT,6MM

CLAMP,TUBE

RING-O,53.5X2.6

PLUG,DRAIN

GROMMET

DAMPER

DAMPER

COLLAR,6.8X10X30

COLLAR

CLAMP,COOLING HOSE

CLAMP,COOLING HOSE

CLAMP,COOLING HOSE

BOLT

BOLT-FLANGED-SMALL,6X10

BOLT-FLANGED-SMALL,6X12

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL,6X40

BOLT-FLANGED-SMALL,6X10

SCREW-PAN-CROS,5X14

O RING,14MM

O RING,18MM
