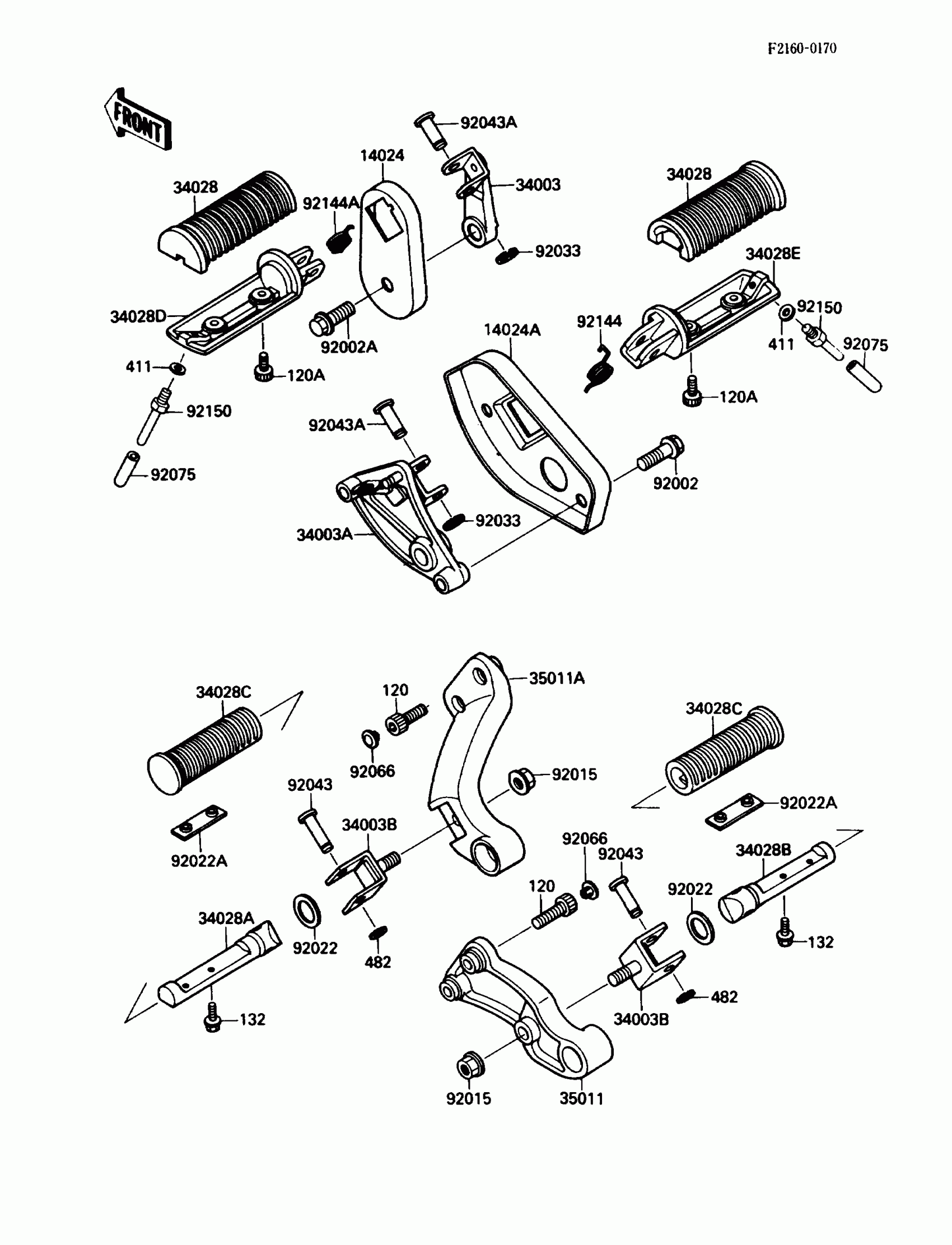

Kawasaki Vulcan 88 SE Footrests Diagram

#

Description
Price

14024

COVER,FRONT STEP,LH

14024-1435

Unavailable

14024A

COVER,FRONT STEP,RH

14024-1436

Unavailable

34003

HOLDER-STEP,FR,LH

34003-1290

$86.76

34003A

HOLDER-STEP,FR,RH

34003-1291

Unavailable

34003B

HOLDER-STEP,RR

34003-1292

$33.77

34028

STEP,FR,RUBBER

34028-1217

$23.19

34028A

STEP,RR,LH

34028-1219

Unavailable

34028B

STEP,RR,RH

34028-1220

$49.59

34028C

STEP,RR,RUBBER

34028-1221

Unavailable

34028D

STEP,FR,LH

34028-1245

$49.48

34028E

STEP,FR,RH

34028-1246

$54.34

35011

STAY,REAR STEP,RH

35011-1347

Unavailable

35011A

STAY,REAR STEP,LH

35011-1389

$68.77

92002

BOLT,FLANGED,10X35

92002-1829

$7.76

92002A

BOLT,FLANGED,12X30

92002-1925

$9.37

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,20X30X2.3

92022-1568

$3.85

92022A

WASHER,STEP

92022-1874

$4.67

92033

RING-SNAP,10MM

92033-1166

$2.97

92043

PIN,8X36.5

92043-1339

$7.71

92043A

PIN,12X37

92043-1358

$6.18

92066

PLUG

92066-1277

$5.09

92075

DAMPER

92075-1980

$4.88

92144

SPRING,STEP RETURN

92144-1126

$4.64

92144A

SPRING,STEP RETURN

92144-1210

Unavailable

92150

BOLT,BANK SENSOR

92150-1047

$15.07

120

BOLT-SOCKET,8X25

120P0825

Unavailable

120A

BOLT-SOCKET,5X12

120S0512

Unavailable

132

BOLT-FLANGED-SMALL,5X10

132J0510

Unavailable

411

WASHER PLAIN

411F0600

$0.95

482

CIRCLIP-TYPE-E

482L7000

$2.99
