1991 Kawasaki Vulcan 88 Carburetor Diagram

← All diagrams

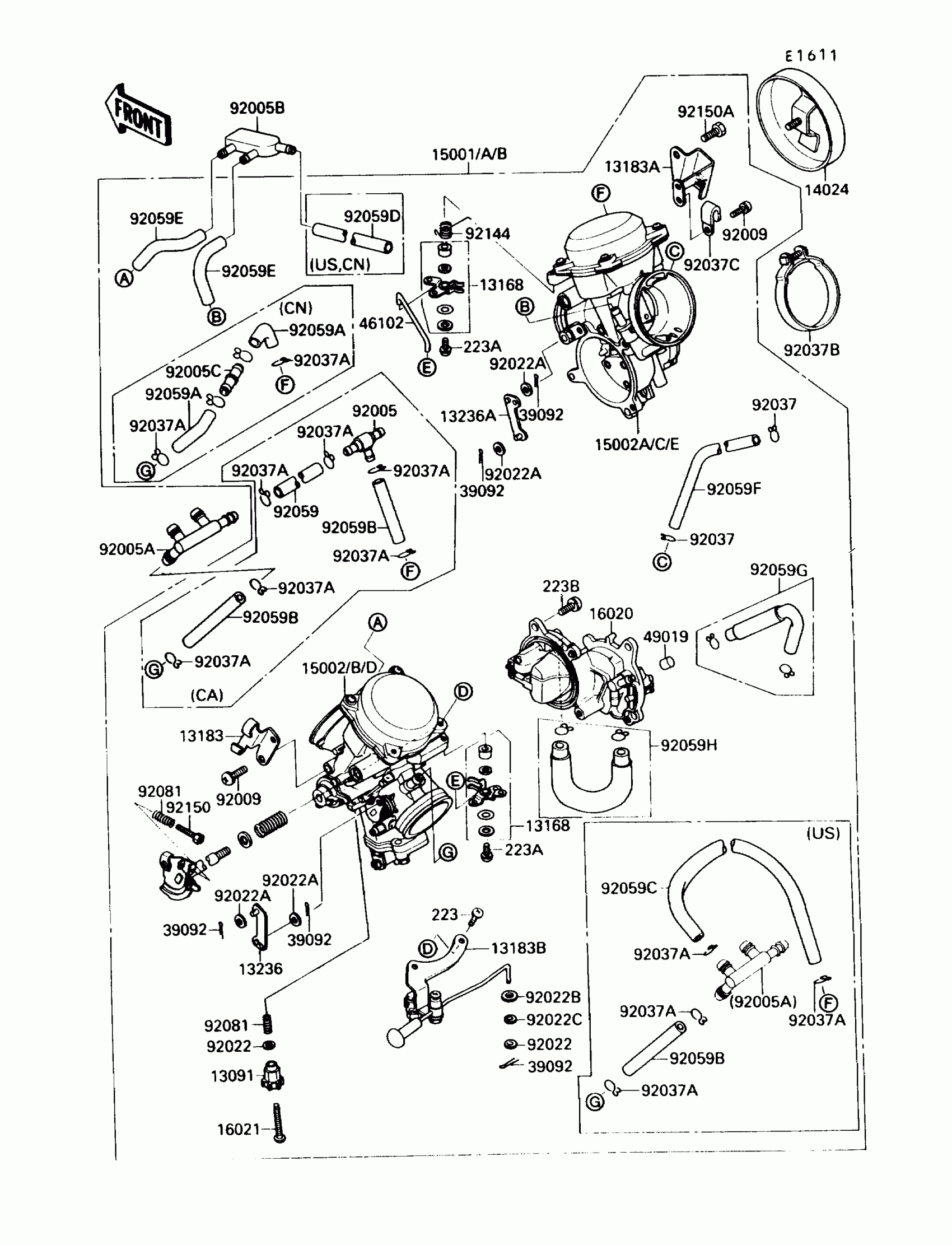

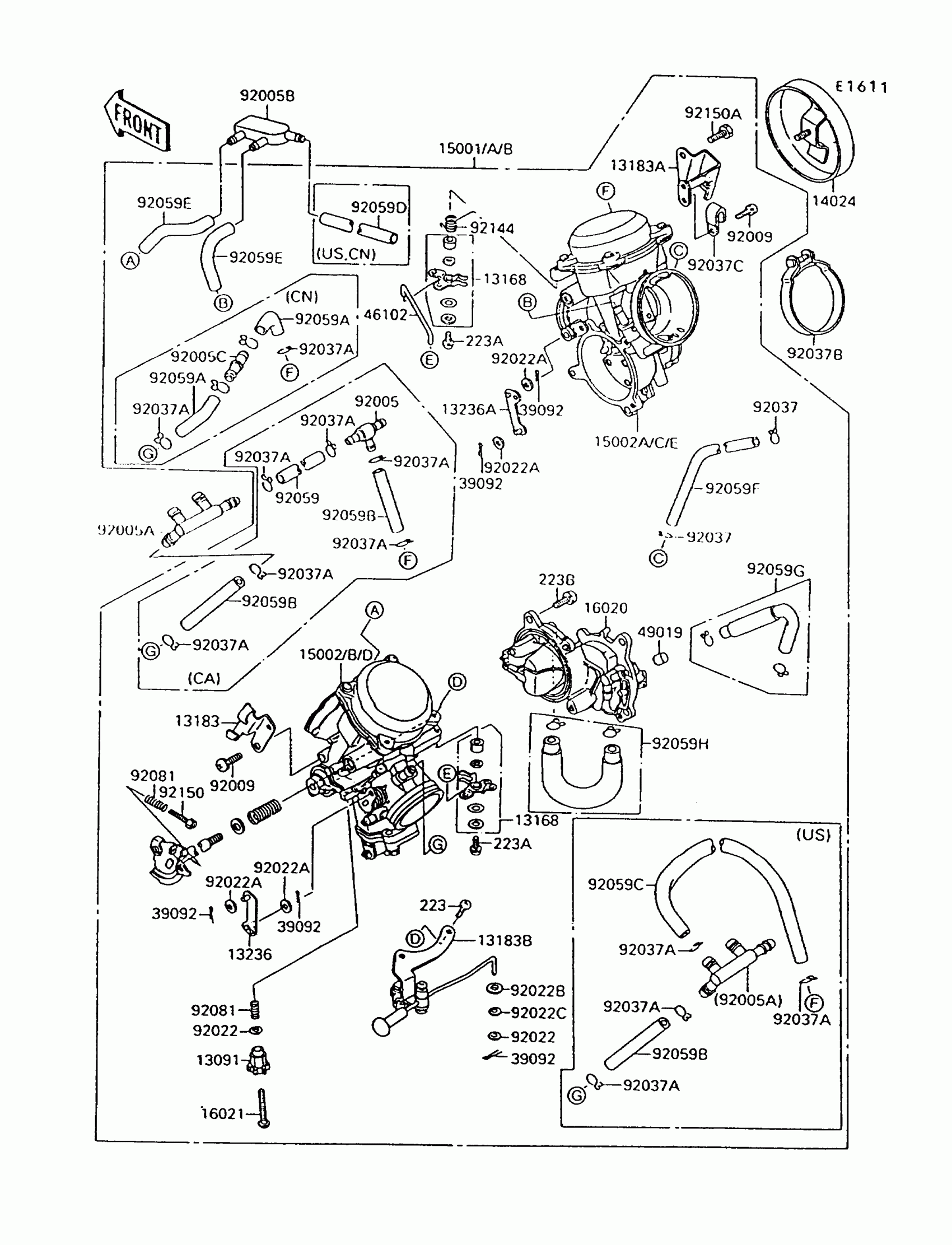

Find the part on the Carburetor diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

1

$16.31

In stock

13168

LEVER,STARTER

13168-1384

1
Out of stock

13183

PLATE,THROTTLE CABLE

13183-1213

1
Out of stock

13183A

PLATE,COVER

13183-1215

1
Out of stock

13183B

PLATE,STARTER

13183-1244

1
Out of stock

13236

LEVER-COMP,LINK,RR

13236-1165

1
Out of stock

13236A

LEVER-COMP,LINK,FR

13236-1166

1
Out of stock

14024

COVER

14024-1586

1
Out of stock

15001

CARBURETOR-ASSY

15001-1336

1

$1,693.85

In stock

15001A

CARBURETOR-ASSY

15001-1354

1

$1,693.85

In stock

15002

CARBURETOR,RR

15002-1565

1

$983.50

In stock

15002A

CARBURETOR,FR

15002-1566

1

$983.50

In stock

15002B

CARBURETOR,RR

15002-1567

1
Out of stock

15002C

CARBURETOR,FR

15002-1568

1
Out of stock

16020

CHAMBER-FLOAT

16020-1059

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1122

1
Out of stock

39092

PIN-HAIR

39092-1051

1

$3.12

In stock

46102

ROD,STARTER

46102-1232

1
Out of stock

49019

FILTER-FUEL

49019-1059

1

$11.27

In stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005A

FITTING

92005-1164

1
Out of stock

92005B

FITTING

92005-1165

1
Out of stock

92009

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$4.42

In stock

92022A

WASHER,3.1X8X0.5,POLYACETAL

92022-1676

1
Out of stock

92022B

WASHER,4.3X9.0X1.0,POLYACETAL

92022-1913

1
Out of stock

92022C

WASHER,5.0X7.5X1.0,POLYACETAL

92022-1914

1
Out of stock

92037

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92037B

CLAMP

92037-1637

1

$8.80

In stock

92037C

CLAMP

92037-1958

1

$15.20

In stock

92059

TUBE,5X9X180

92059-1377

1

$24.51

In stock

92059B

TUBE,5X9X35

92059-1880

1

$20.15

In stock

92059B

TUBE,5X9X35

92059-1880

1

$20.15

In stock

92059C

TUBE,5X9X245

92059-1881

1
Out of stock

92059D

TUBE,7X11X460

92059-1882

1
Out of stock

92059E

TUBE,7X11X160

92059-1883

1

$42.93

In stock

92059F

TUBE,3X7X750

92059-1884

1
Out of stock

92059G

TUBE,5.3X10.5X190

92059-1885

1
Out of stock

92059H

TUBE,5.3X10.5X140

92059-1886

1
Out of stock

92081

1

$5.32

In stock

92144

SPRING

92144-1220

1
Out of stock

92150

BOLT,4X20

92150-1032

1
Out of stock

92150A

BOLT,10X16

92150-1033

1

$7.64

In stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

SCREW-PAN-WS-CROS

223D0425

1
Out of stock

223B

1

$1.63

In stock
