Partiron

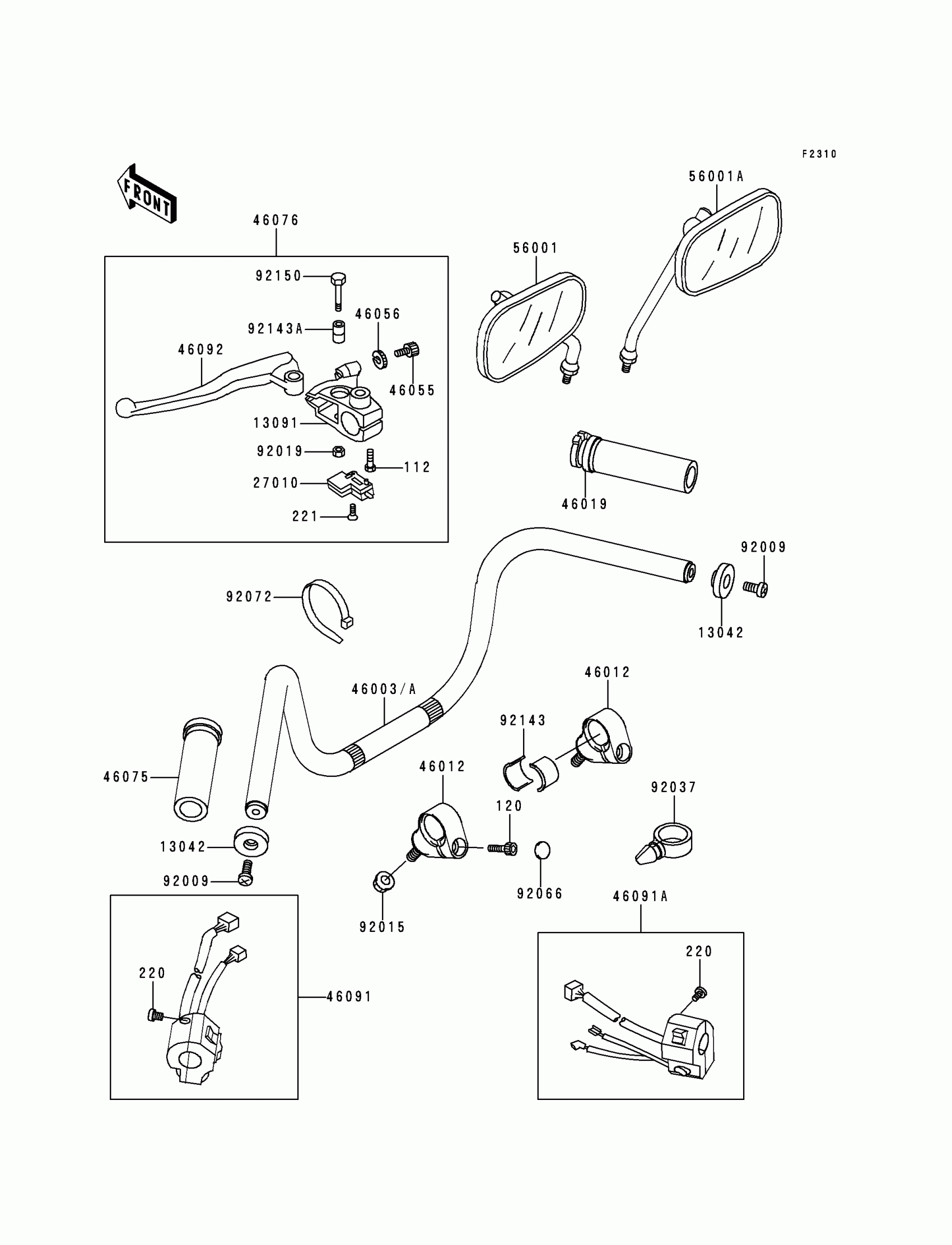

Kawasaki Vulcan 800 Handlebar(VN800-A1/A2) Diagram

#

Description
Price

112

BOLT-UPSET,6X20

112G0620

Unavailable

120

BOLT-SOCKET,10X25

120P1025

Unavailable

220

SCREW-PAN-CROS,5X16

220E0516

$3.68

221

SCREW-CSK-CROS,3X20

221B0320

$4.66

13042

WEIGHT,HANDLE

13042-1068

Unavailable

13091

HOLDER,CLUTCH LEVER,SILVER

13091-1671

$60.25

27010

SWITCH,CLUTCH

27010-1268

$26.29

46003A

HANDLE

46003-1436

$170.08

46012

HOLDER-HANDLE

46012-1171

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1065

$37.74

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

46075

GRIP,LH

46075-1074

$22.67

46076

LEVER-ASSY-GRIP,CLUTCH,SILVER

46076-1174

$89.65

46091

HOUSING-ASSY-CONTROL,LH

46091-1618

$236.94

46091A

HOUSING-ASSY-CONTROL,RH,BUFF

46091-1621

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1164

$25.53

56001

MIRROR-ASSY,LH

56001-1407

Unavailable

56001A

MIRROR-ASSY,RH

56001-1408

$91.83

92009

SCREW,8X20

92009-1484

$4.92

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.86

92019

NUT,LOCK,6MM

92019-008

$3.36

92037

CLAMP,HOSE

92037-1827

$5.93

92066

PLUG

92066-1285

$6.18

92072

BAND,L=202

92072-1195

$1.34

92143

COLLAR,HANDLE HOLDER

92143-1098

$9.44

92143A

COLLAR

92143-1351

$16.78

92150

BOLT,LEVER SET

92150-1330

$13.03
