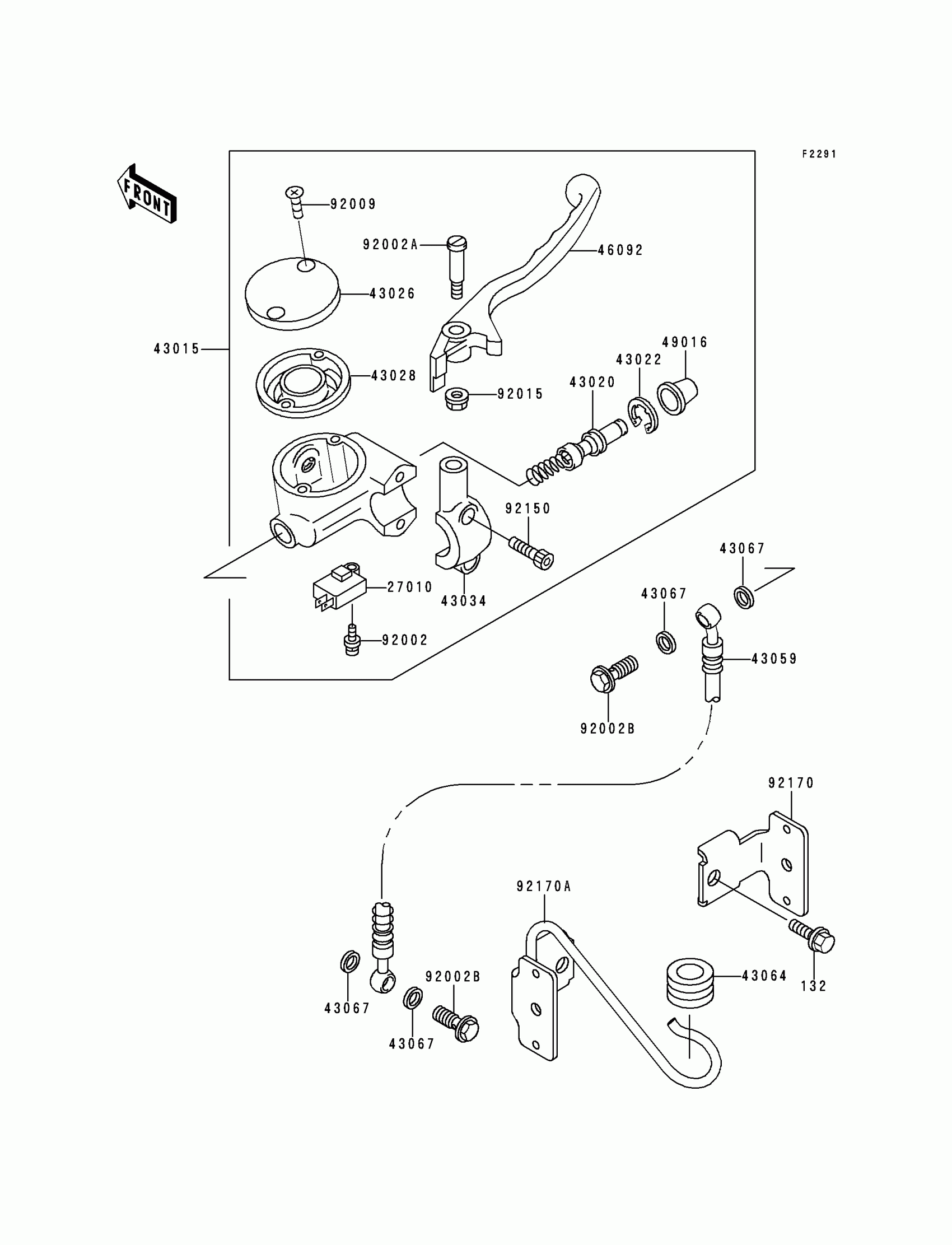

1999 Kawasaki Vulcan 800 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.72

In stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$466.60

In stock

43020

PISTON-COMP-BRAKE

43020-1098

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,SILVER

43026-1078

1

$65.13

In stock

43028

1

$22.44

In stock

43034

HOLDER-BRAKE,SILVER

43034-1102

1

$48.08

In stock

43059

HOSE-BRAKE,FR

43059-1894

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

46092

1

$32.95

In stock

49016

1

$6.90

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,5MM

92009-1440

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92150

BOLT,SOCKET,6MM

92150-1025

1

$7.56

In stock

92170

CLAMP,HOSE

92170-1554

1

$12.19

In stock

92170A

CLAMP,HOSE

92170-1611

1

$10.02

In stock
