1999 Kawasaki Vulcan 800 Fenders Diagram

← All diagrams

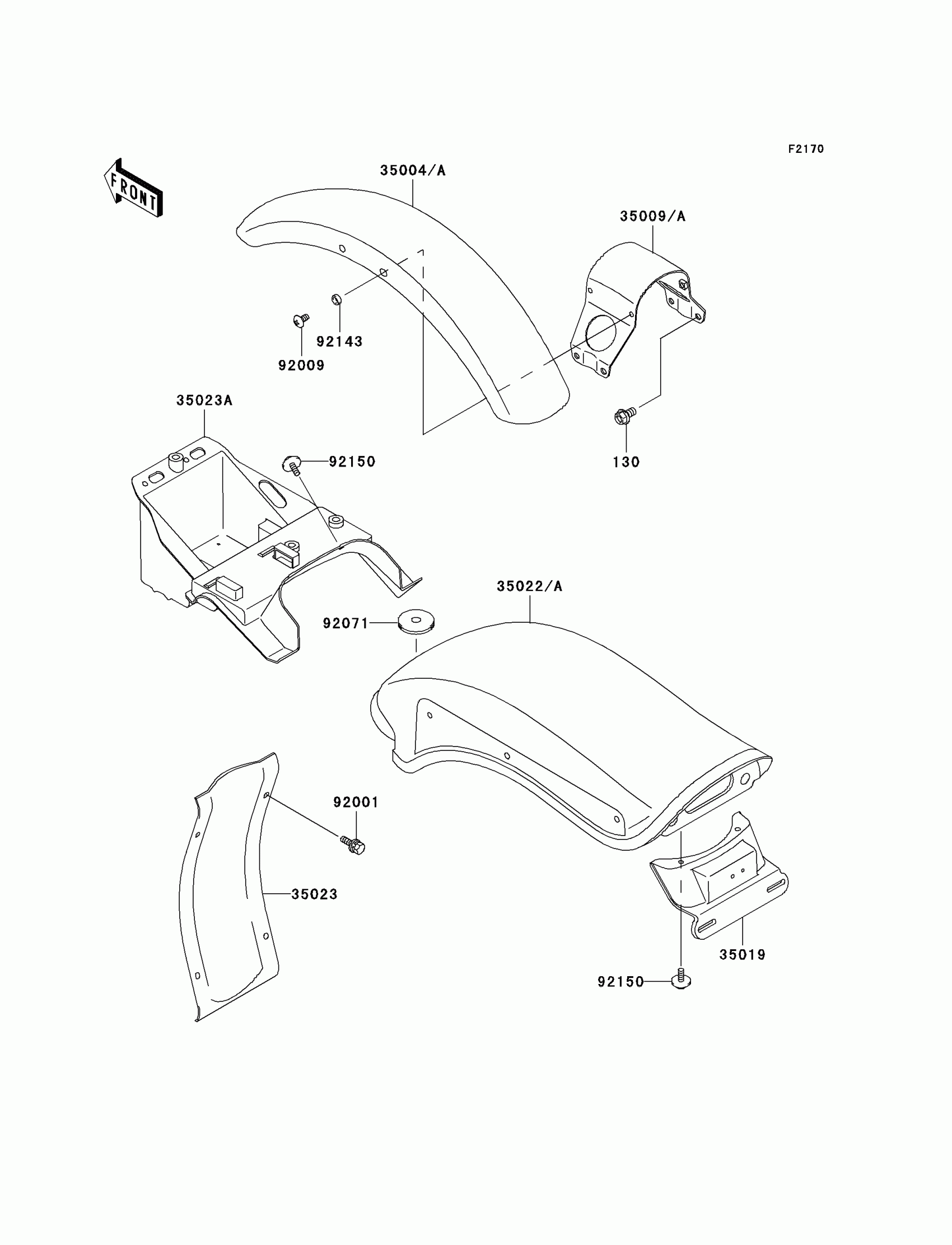

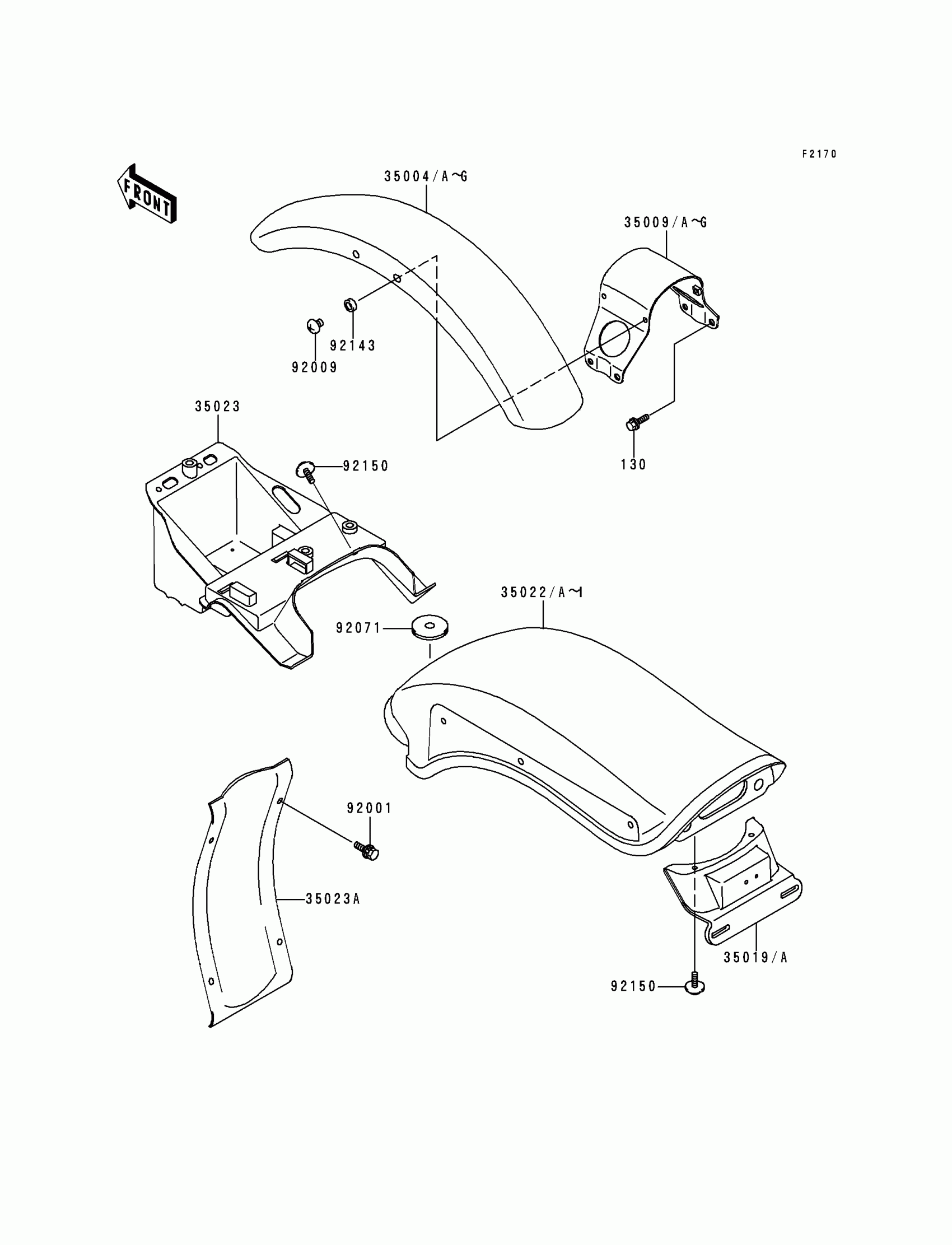

Find the part on the Fenders diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X14

130J0814

1
Out of stock

35004A

FENDER-FRONT,F.RED

35004-1329-B1

1
Out of stock

35009A

BRACE,FRONT FENDER,F.RED

35009-1106-B1

1
Out of stock

35019A

FLAP,RR

35019-1340

1
Out of stock

35022E

FENDER-COMP-REAR,RR,F.RED

35022-1318-B1

1
Out of stock

35023

FENDER-REAR,FR

35023-1407

1
Out of stock

35023A

FENDER-REAR

35023-1417

1
Out of stock

92001

BOLT,6X20

92001-1765

1
Out of stock

92009

SCREW,6X12

92009-1744

1
Out of stock

92071

GROMMET

92071-1228

1
Out of stock

92143

COLLAR

92143-1307

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

35004C

FENDER-FRONT,EBONY

35004-1329-H8

1
Out of stock

35009C

BRACE,FRONT FENDER,EBONY

35009-1106-H8

1
Out of stock

35022F

FENDER-COMP-REAR,RR,EBONY

35022-1318-H8

1
Out of stock
