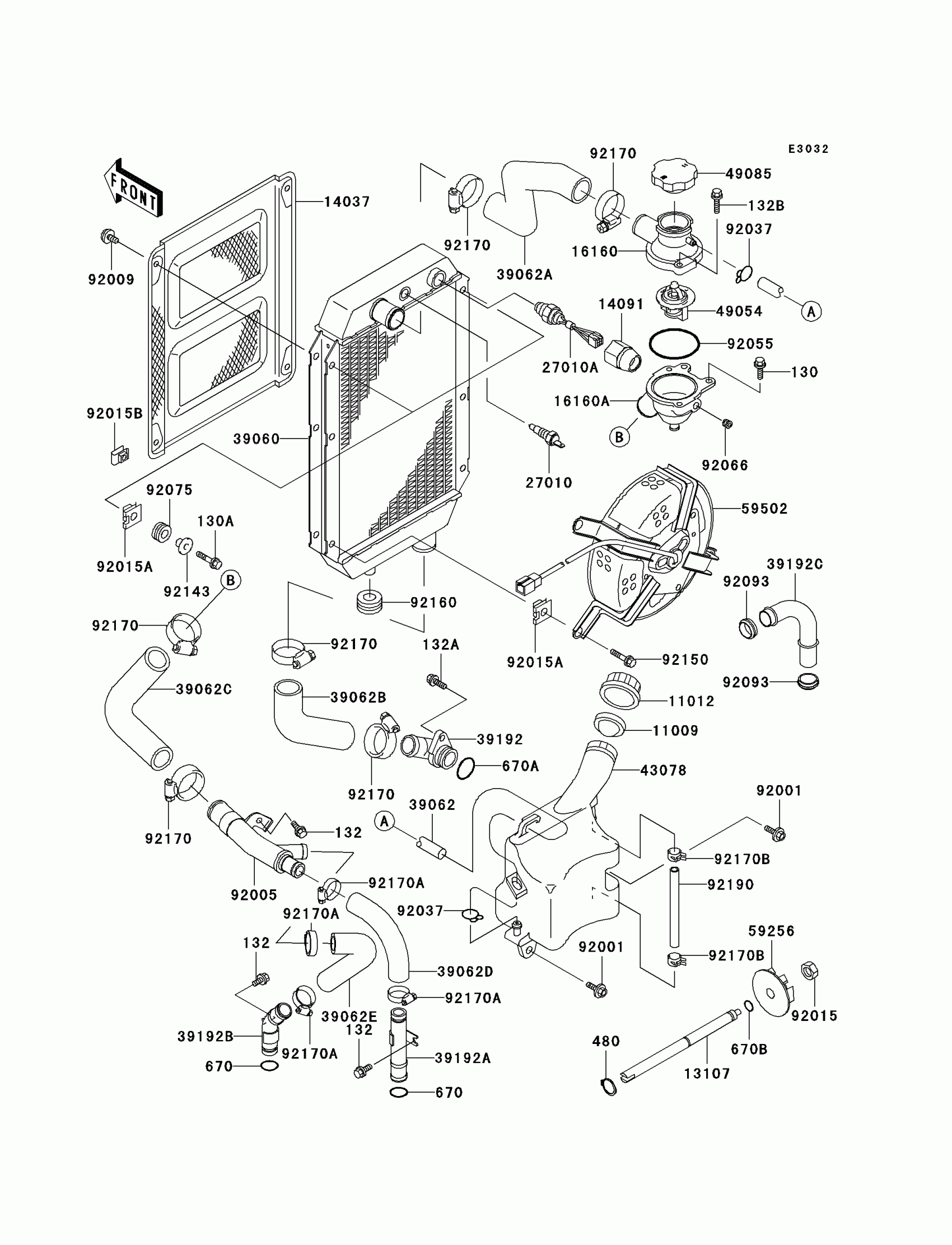

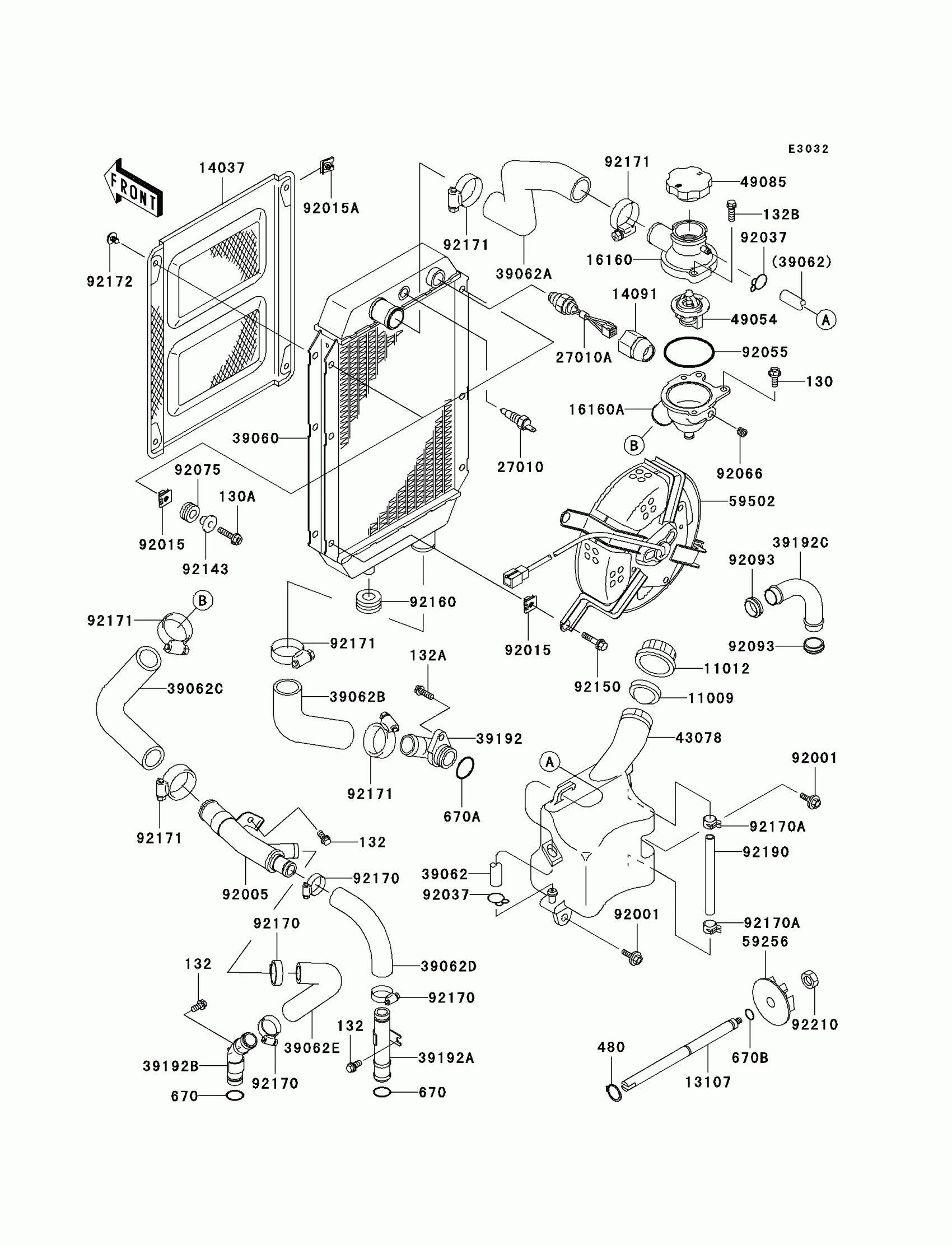

Kawasaki Vulcan 800 Drifter Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

13107

SHAFT,IMPELLER

13107-1155

Unavailable

14037

SCREEN,RADIATOR

14037-1200

$98.73

14091

COVER

14091-1094

$7.71

16160

BODY,UPP

16160-1152

$69.01

16160A

BODY

16160-1242

$74.16

27010

SWITCH,WARNING

27010-1305

$85.57

27010A

SWITCH,THERMOSTAT

27010-1403

$87.01

39060

RADIATOR

39060-1164

$614.82

39062

HOSE-COOLING

39062-1124

$21.40

39062A

HOSE-COOLING,THERMO-RADIATOR

39062-1646

$39.58

39062B

HOSE-COOLING,RADIATOR-COVER

39062-1647

$18.53

39062C

HOSE-COOLING,THERMO-FITTING

39062-1648

$21.78

39062D

HOSE-COOLING,HEAD,RR-FITTING

39062-1649

Unavailable

39062E

HOSE-COOLING,HEAD,FR-FITTING

39062-1650

$15.88

39192

PIPE-WATER,INLET

39192-1078

$51.97

39192A

PIPE-WATER,HEAD,RR

39192-1079

$31.36

39192B

PIPE-WATER,HEAD,FR

39192-1080

$34.92

39192C

PIPE-WATER,OUTLET

39192-1106

Unavailable

43078

RESERVOIR

43078-1149

$57.48

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$47.60

59256

IMPELLER

59256-1058

$47.04

59502

FAN-ASSY

59502-1132

$788.30

92001

BOLT,6X16

92001-1950

$3.29

92005

FITTING

92005-1281

Unavailable

92009

SCREW,TAPPING,6MM

92009-1261

$2.29

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT

92015-1487

$3.64

92015B

NUT,6MM

92015-1758

$5.15

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92066

PLUG,PT1/8X7

92066-1227

$5.15

92075

DAMPER

92075-1901

Unavailable

92093

SEAL

92093-1427

$3.54

92143

COLLAR

92143-1353

$6.54

92150

BOLT,6X12

92150-1186

$2.56

92160

DAMPER

92160-1007

$4.18

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X18

132J0618

Unavailable

132B

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

670

O RING,14MM

670B2014

$0.93

670A

O RING,21MM

670B2021

$3.57

670B

O RING,9MM

670D1509

$3.57

92170A

CLAMP,COOLING HOSE

92170-1285

$16.99

92170B

CLAMP

92170-1493

$3.81

92190

TUBE,7X10X106

92190-1603

$3.92
