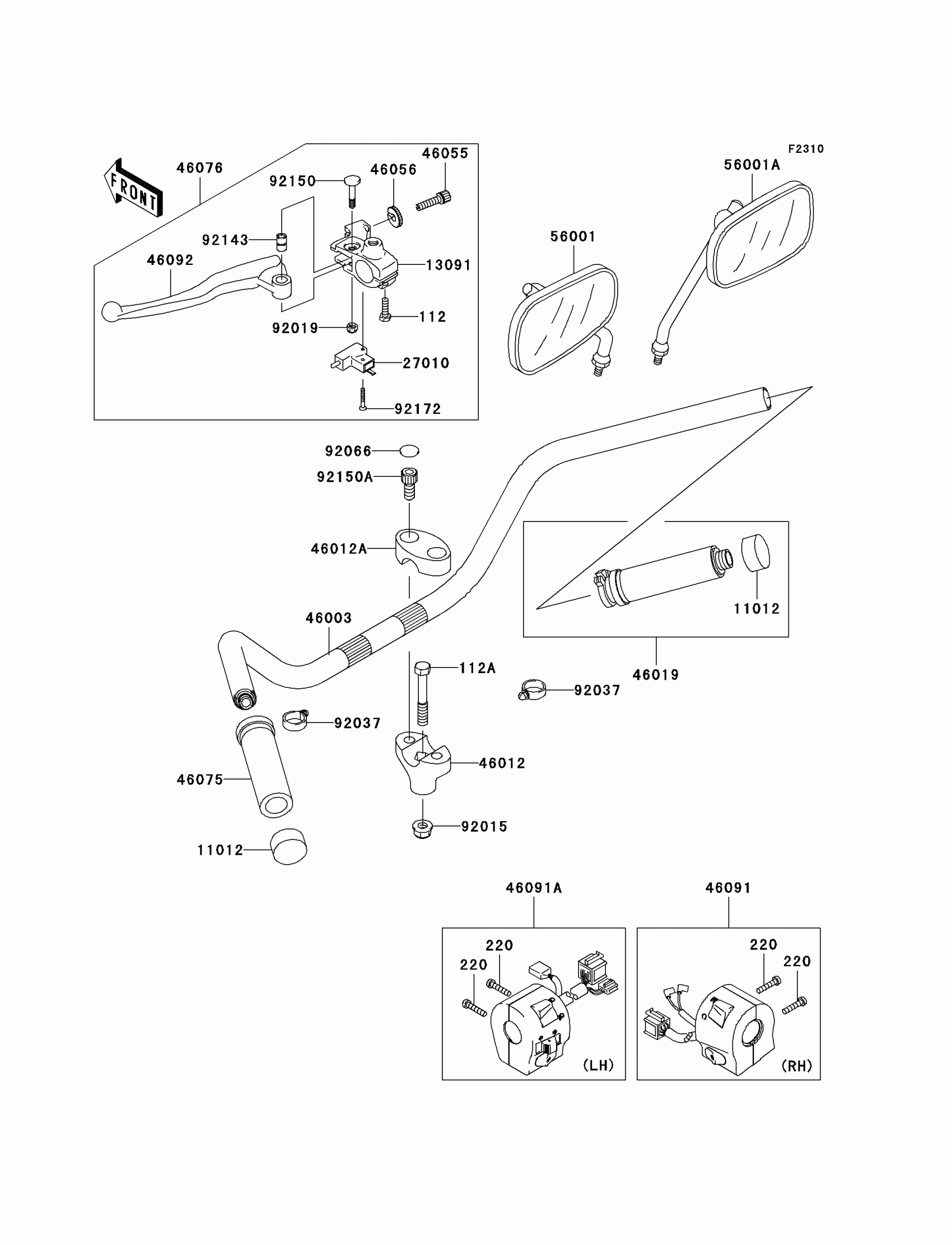

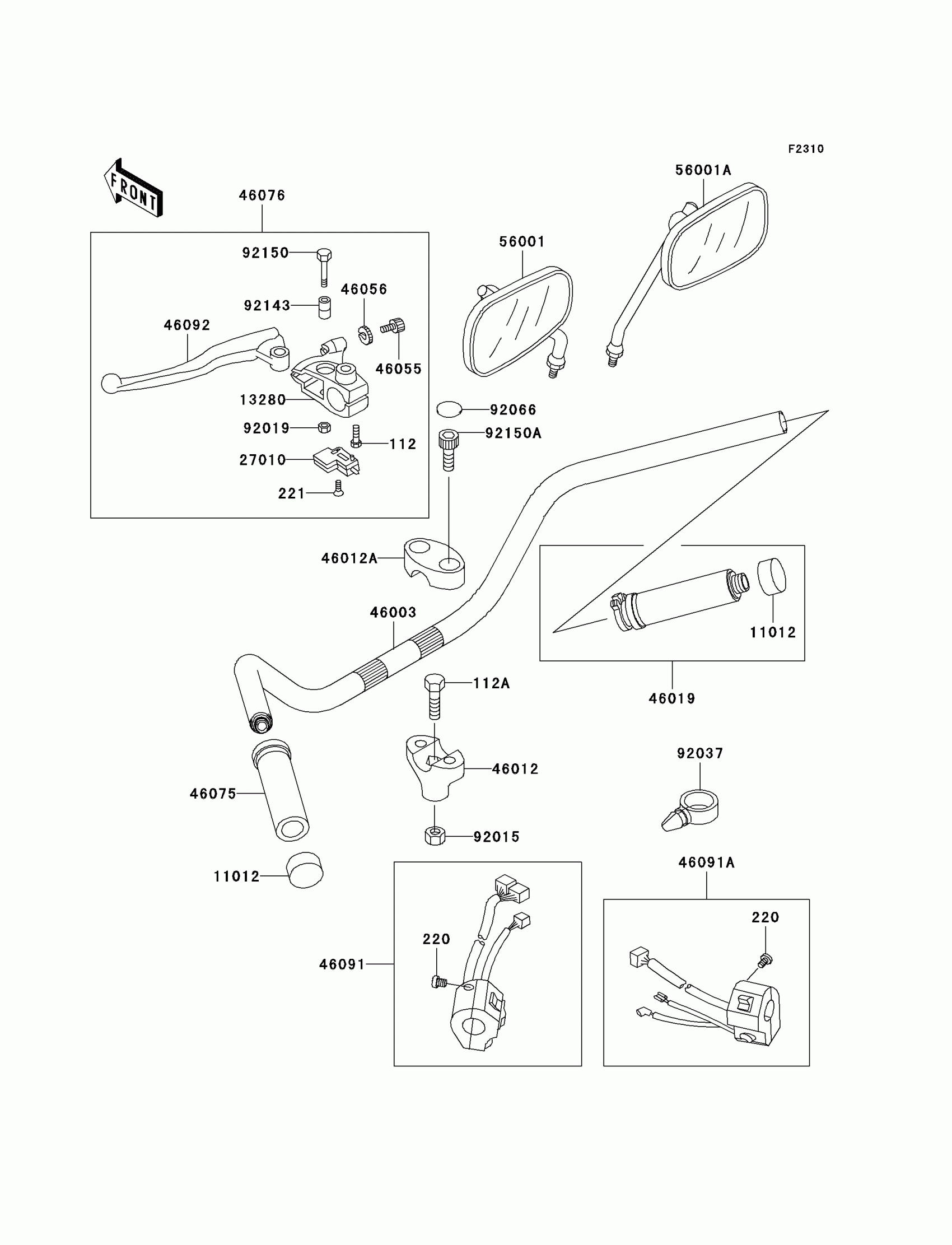

Kawasaki Vulcan 800 Drifter Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X20

112G0620

Unavailable

112A

BOLT-UPSET,10X65

112H1065

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

221

SCREW-CSK-CROS,3X20

221B0320

$4.66

11012

CAP,GRIP END

11012-1975

$16.55

13280

HOLDER,CLUTCH LEVER

13280-1101

$59.58

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003

HANDLE

46003-1512

Unavailable

46012

HOLDER-HANDLE,LWR

46012-1291

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1292

$80.71

46019

GRIP-ASSY,THROTTLE

46019-1109

$62.08

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1074

$19.86

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1220

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-1752

Unavailable

46091A

HOUSING-ASSY-CONTROL,RH

46091-1759

Unavailable

46092

LEVER-GRIP,CLUCTH

46092-1204

$23.22

56001

MIRROR-ASSY,LH

56001-1451

$85.41

56001A

MIRROR-ASSY,RH

56001-1452

$85.41

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92019

NUT,LOCK,6MM

92019-008

$3.12

92037

CLAMP,HOSE

92037-1827

$5.69

92066

PLUG

92066-1285

$5.93

92143

COLLAR

92143-1351

$16.78

92150

BOLT,LEVER SET

92150-1330

$13.03

92150A

BOLT,SOCKET,10X23

92150-1942

$5.61
