2000 Kawasaki Vulcan 800 Drifter Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

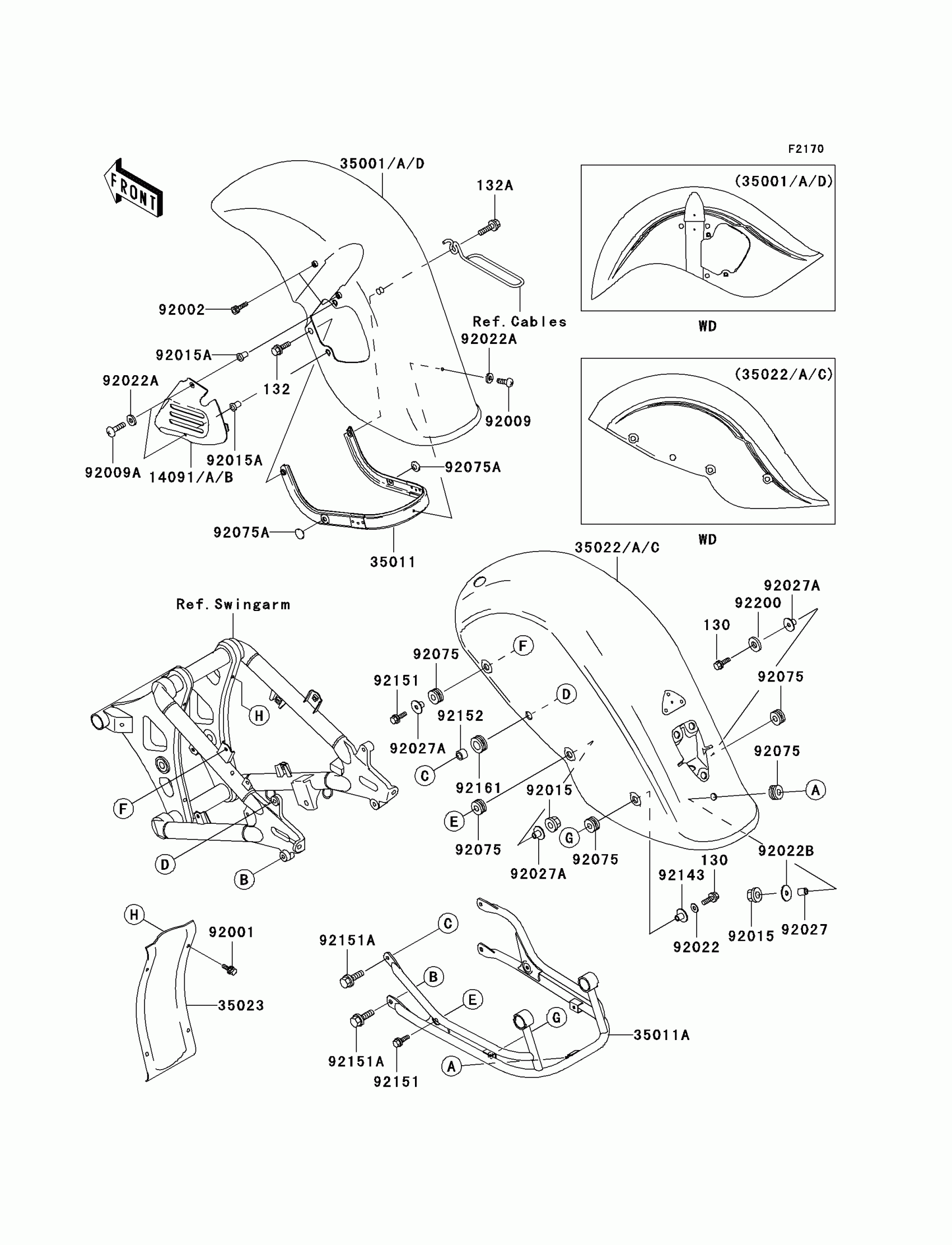

2000 Kawasaki Vulcan 800 Drifter Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,8X20

132E0820

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X25

132E0825

1
Out of stock

14091A

COVER,FRONT CALIPER,S.BLUE

14091-1059-Q5

1
Out of stock

14091B

COVER,FRONT CALIPER,P.B.BEIGE

14091-1059-X8

1
Out of stock

35001A

FENDER-ASSY-FRONT,P.B.BEIGE

35001-5045-X8

1
Out of stock

35001D

FENDER-ASSY-FRONT,S.BLUE

35001-5048-Q5

1
Out of stock

35011

STAY,FRONT FENDER

35011-1962

1
Out of stock

35011A

STAY,REAR FENDER

35011-1971

1
Out of stock

35022A

FENDER-COMP-REAR,P.B.BEIGE

35022-5057-X8

1
Out of stock

35022C

FENDER-COMP-REAR,S.BLUE

35022-5060-Q5

1
Out of stock

35023

FENDER-REAR

35023-1417

1
Out of stock

92001

BOLT,6X20

92001-1765

1
Out of stock

92002

BOLT,SOCKET,8X30

92002-1179

1
Out of stock

92009

SCREW,5X12

92009-1652

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1386

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92022B

WASHER,7X24X1.6

92022-228

1
Out of stock

92027

COLLAR,6.3X10X12

92027-1143

1
Out of stock

92027A

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92075A

DAMPER,RUBBER

92075-261

1
Out of stock

92143

COLLAR

92143-1960

1
Out of stock

92151

BOLT,FLANGED,6X25

92151-1488

1
Out of stock

92151A

BOLT,FLANGED,10X34

92151-1509

1
Out of stock

92152

COLLAR,11X18X11.5

92152-1165

1
Out of stock

92161

DAMPER

92161-1051

1
Out of stock

92200

WASHER,6.5X13X4

92200-1380

1
Out of stock
