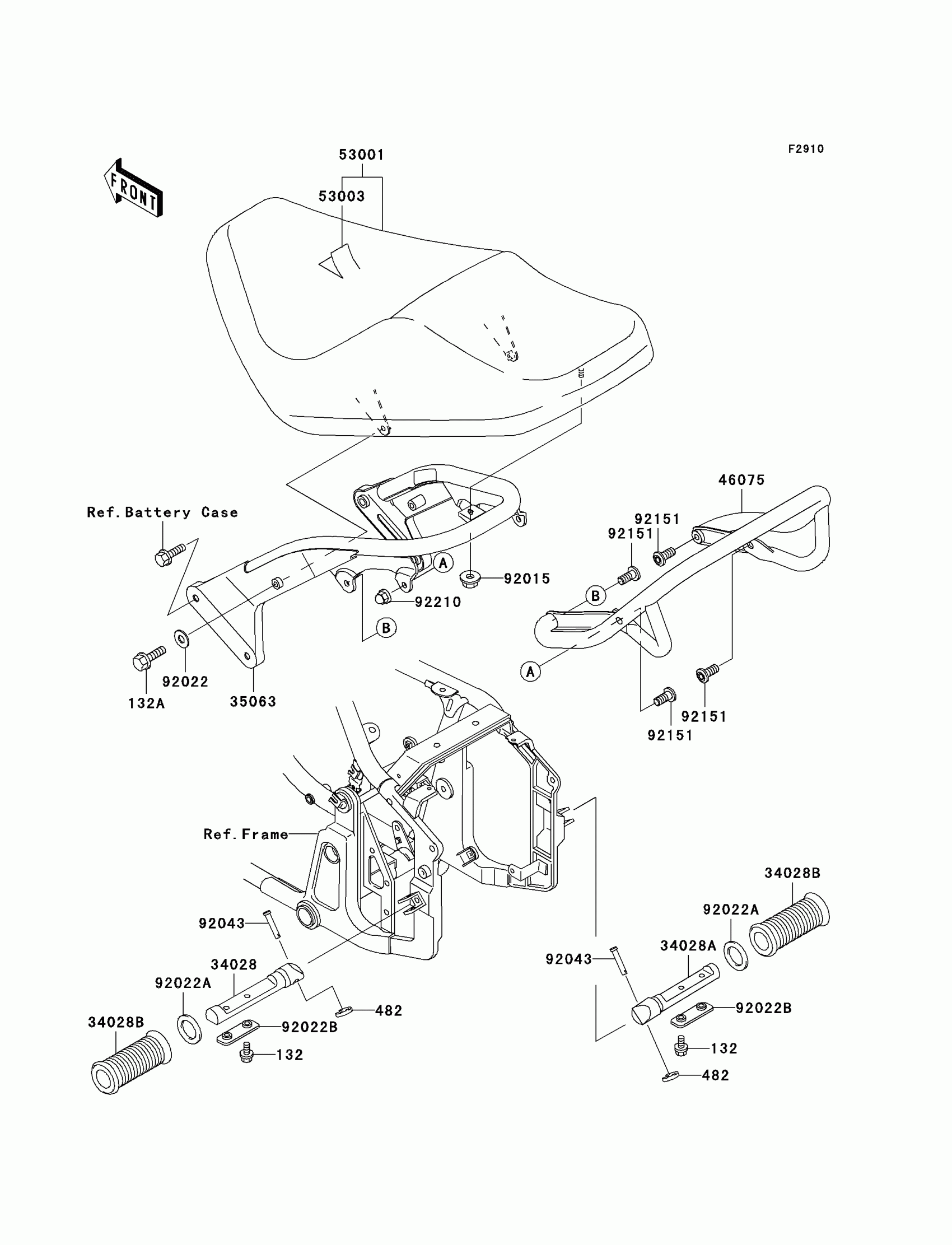

Kawasaki Vulcan 800 Drifter Accessory Diagram

Description

Price

132

BOLT-FLANGED-SMALL,5X10

132J0510

Unavailable

132A

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

482

CIRCLIP-TYPE-E

482L7000

$2.99

34028

STEP,RR,LH

34028-1219

Unavailable

34028A

STEP,RR,RH

34028-1220

$49.59

34028B

STEP,RR,RUBBER

34028-1221

Unavailable

35063

STAY,SEAT

35063-1084

$490.79

46075

GRIP

46075-1186

$210.26

53001

SEAT-ASSY,DUAL,BLACK

53001-1898-MA

$629.75

53003

LEATHER,SEAT,BLACK

53003-1432-MA

$391.01

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92022

WASHER,7X16X1.2

92022-1344

$2.99

92022A

WASHER,20X30X2.3

92022-1568

$3.85

92022B

WASHER,STEP

92022-1874

$4.67

92043

PIN,8X36.5

92043-1339

$7.71

92151

BOLT,SOCKET,10X22

92151-1577

$2.42

92210

NUT,CAP,10MM

92210-1189

$11.25
