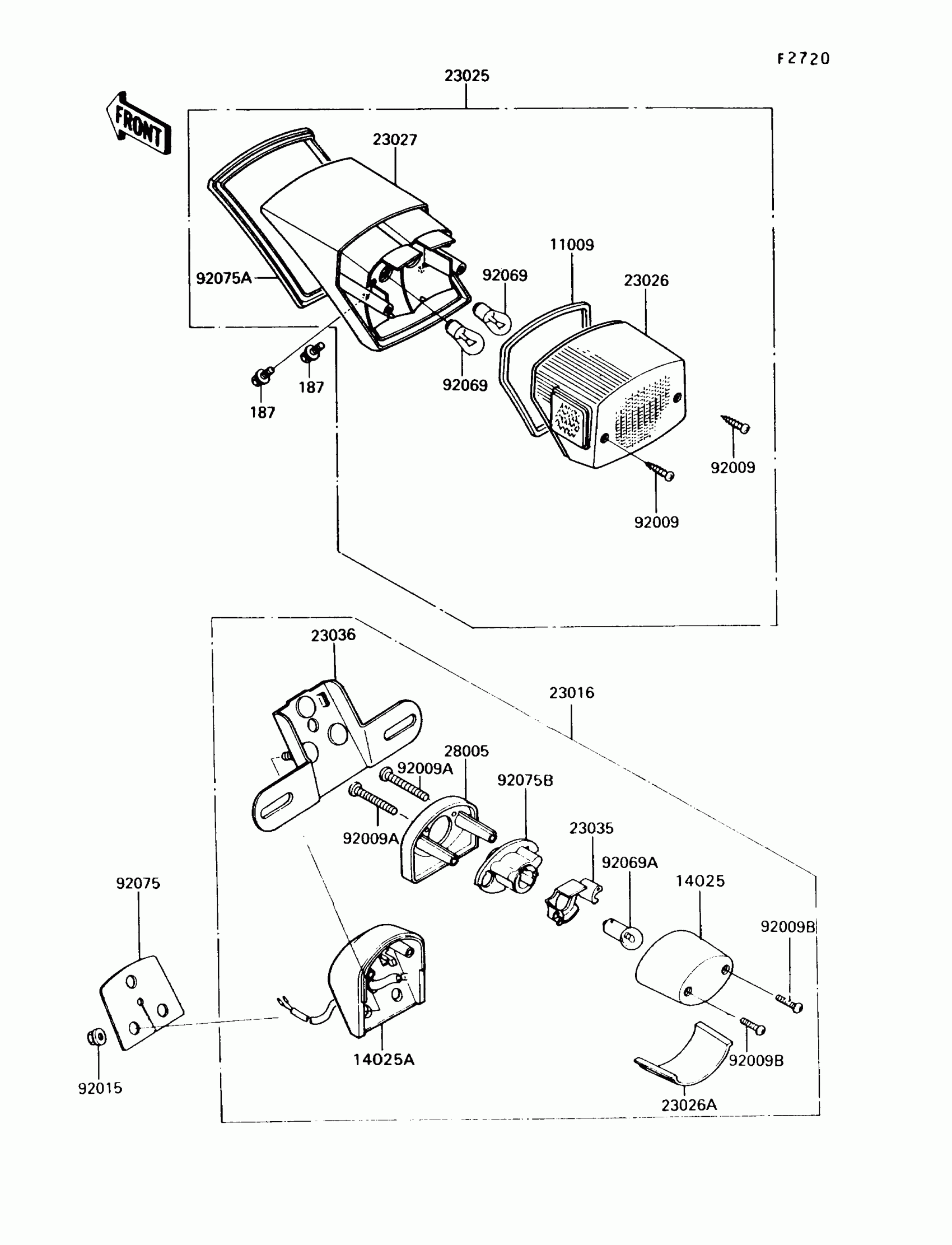

Kawasaki Vulcan 750 Tail Lamp Diagram

#

Description
Price

187

BOLT-UPSET-WSP,6X14

187D0614

Unavailable

11009

GASKET,TAIL LAMP

11009-1496

$16.31

14025

COVER,LICENSE LAMP

14025-1725

$17.20

14025A

COVER,LICENSE LAMP

14025-1728

$59.51

23016

LAMP-ASSY,LICENSE

23016-1061

$193.50

23025

LAMP-TAIL

23025-1116

$256.24

23026

LENS,TAIL LAMP

23026-1063

$48.45

23026A

LENS,LICENSE LAMP

23026-1064

$24.51

23027

BODY-COMP-TAIL LAMP

23027-1060

$156.78

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

23036

BRACKET-TAIL LAMP

23036-1104

$81.32

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

92009

SCREW,TAPPING,4X25

92009-1069

$3.53

92009A

SCREW,TAPPING,5X40

92009-1263

$3.53

92009B

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92069

BULB,12V 27/8W

92069-059

$6.45

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER,LICENSE LAMP

92075-1676

$9.56

92075A

DAMPER,TAIL LAMP

92075-1692

$30.52

92075B

DAMPER,LICENSE LAMP

92075-1694

$23.12
