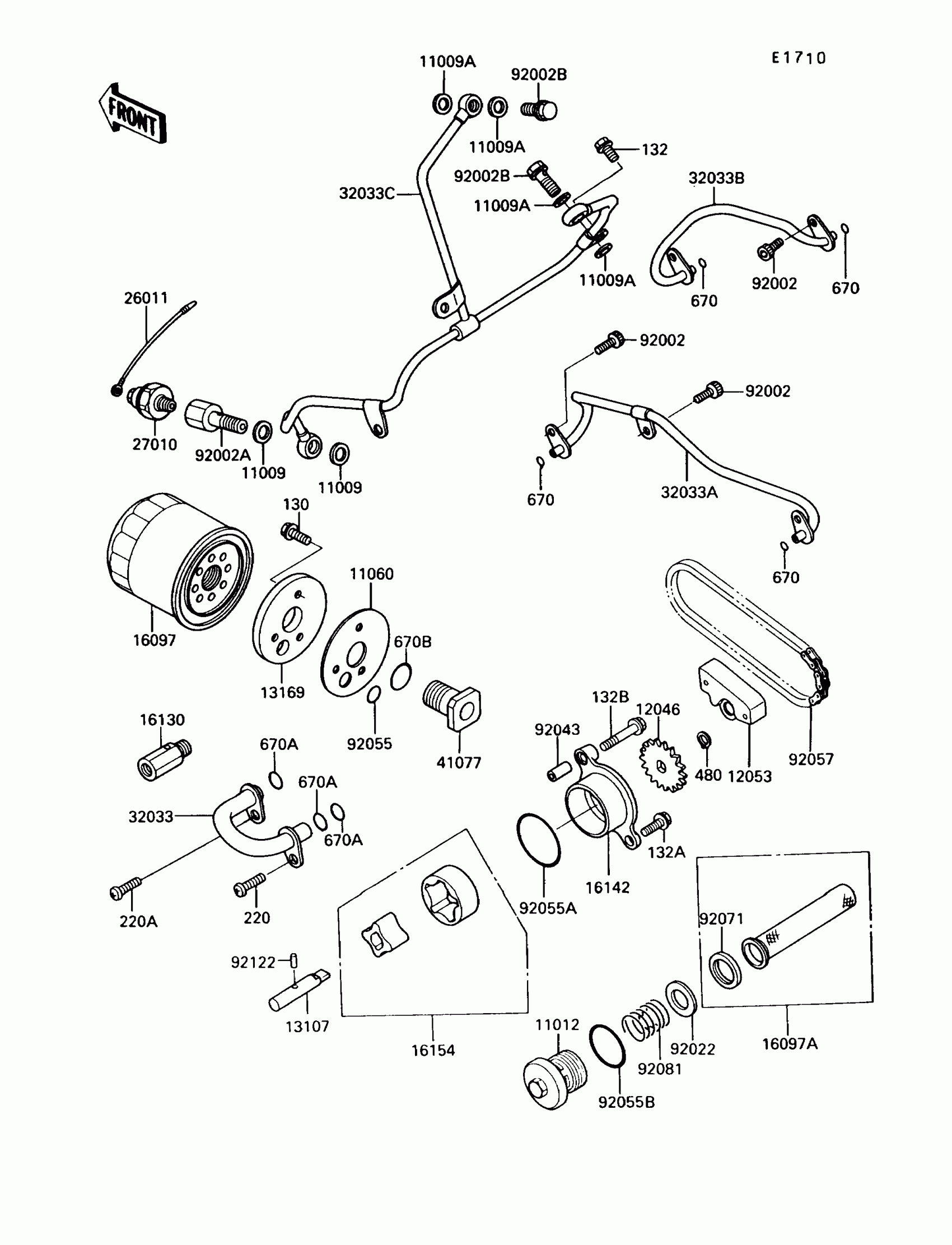

Kawasaki Vulcan 750 Oil Pump Diagram

#

Description
Price

130

BOLT-FLANGED,5X14

130P0514

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.99

670

O RING,6MM

670D1506

$1.42

11009

GASKET,10X14.5X1.5

11009-1105

$5.15

11009A

GASKET,8.2X14X1.0

11009-1344

$2.44

11012

CAP,OIL FILTER

11012-1483

Unavailable

11060

GASKET,OIL FILTER

11060-1092

$8.31

12046

SPROCKET,OIL PUMP,19T

12046-1079

$18.81

12053

GUIDE-CHAIN

12053-1187

$23.95

13107

SHAFT,OIL PUMP

13107-1131

$33.86

13169

PLATE,OIL FILTER

13169-1921

Unavailable

16097

FILTER-ASSY-OIL

16097-1054

$11.46

16097A

FILTER-ASSY-OIL

16097-1058

$11.38

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP,OIL

16142-1061

$64.81

16154

ROTOR-PUMP,40.56X18

16154-1056

$69.01

26011

WIRE-LEAD

26011-1295

$7.15

27010

SWITCH,OIL PRESSURE

27010-1155

$36.57

32033

PIPE,OIL,PUMP-FILTER

32033-1479

$46.87

32033A

PIPE,OIL,FILTER-TRANSMISSION

32033-1741

$58.47

32033B

PIPE,OIL,FILTER-CRANKSHAFT

32033-1742

$40.75

32033C

PIPE,FILTER-HEAD

32033-1863

$162.38

41077

ADAPTER

41077-1052

$32.48

92002

BOLT,SOCKET,6X14

92002-1592

$3.85

92002A

BOLT,OIL SWITCH

92002-1617

$24.46

92002B

BOLT,BANJO,8X20

92002-1618

$10.59

92022

WASHER,16.5X28X0.5

92022-169

$3.97

92043

PIN,6.2X8X14

92043-1263

$0.49

92055

RING-O,13X1.9

92055-1021

$6.06

92055A

RING-O,44.7X2.4

92055-1279

$5.84

92055B

RING-O,35.2X2.4

92055-1358

$5.84

92057

CHAIN,PUMP,BS25HX50L

92057-1183

$43.93

92071

GROMMET,OIL STRAINER

92071-100

$4.34

92081

SPRING,OIL FILTER

92081-1862

$12.36

92122

ROLLER,3X15.8

92122-1126

$3.53

670A

O RING,12MM

670D2012

$2.19

670B

O RING,20MM

670D2020

$4.93
