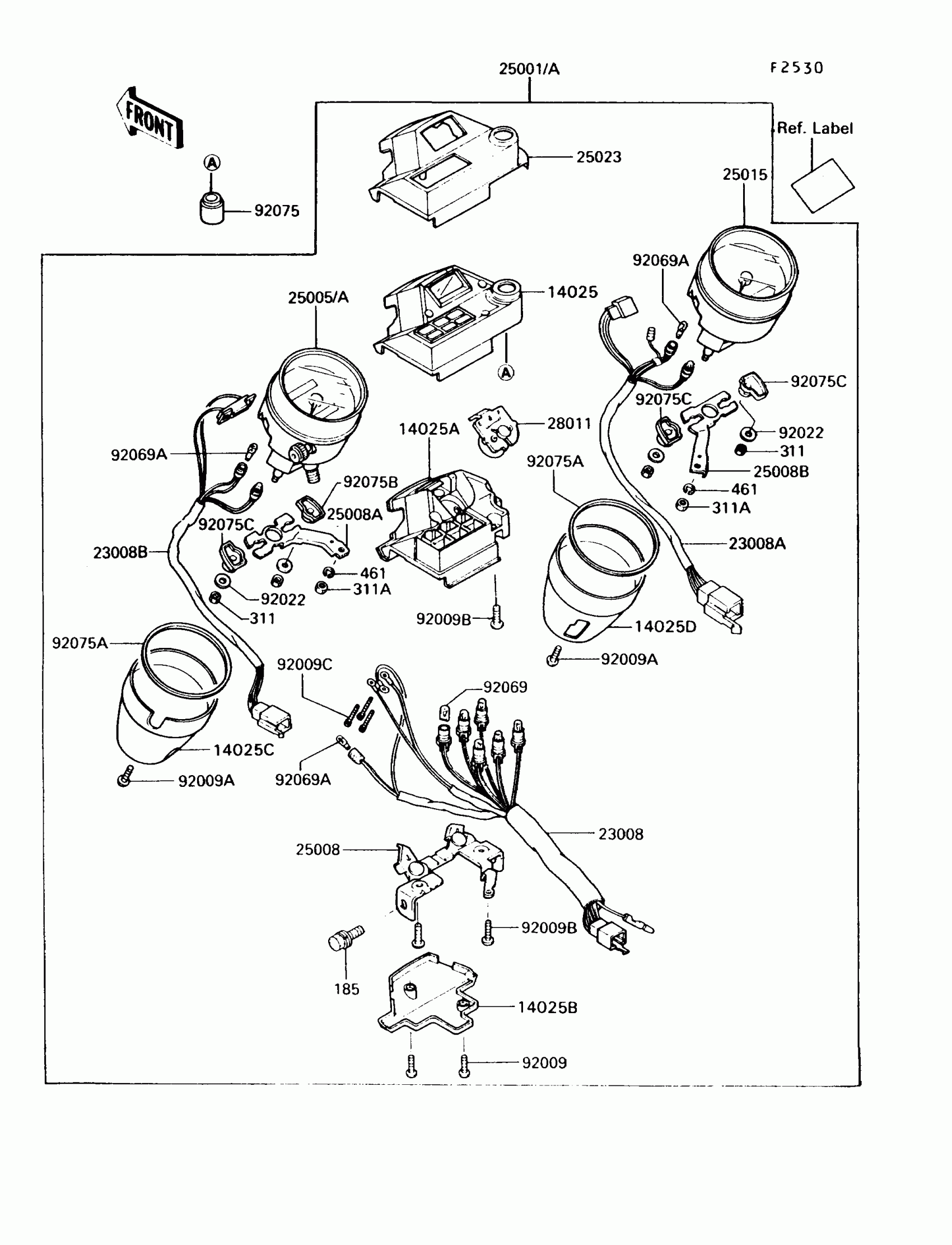

Kawasaki Vulcan 750 Meter Diagram

#

Description
Price

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

$4.10

311

NUT-HEX

311B0500

$0.51

311A

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

14025

COVER,PILOT BOX,UPP

14025-1742

$81.38

14025A

COVER,PILOT BOX,INNER

14025-1743

$48.45

14025B

COVER,PILOT BOX,LWR

14025-1744

$20.08

14025C

COVER,SPEEDOMETER

14025-1745

Unavailable

14025D

COVER,TACHOMETER

14025-1746

$53.13

23008

SOCKET-ASSY,PILOT BOX

23008-1255

$120.83

23008A

SOCKET-ASSY,TACHOMETER

23008-1257

$51.79

23008B

SOCKET-ASSY,SPEEDOMETER

23008-1398

$51.79

25008

BRACKET-METER,PILOT BOX

25008-1115

$52.27

25008A

BRACKET-METER,SPEEDOMETER

25008-1116

$30.56

25008B

BRACKET-METER,TACHOMETER

25008-1117

$30.56

25015

TACHOMETER,(X1000R/MIN)

25015-1235

$523.59

25023

COVER-METER CASE,PILOT BOX

25023-1125

$72.58

28011

METER,FUEL

28011-1071

$128.17

92009

SCREW,TAPPING,4X14

92009-1034

$4.49

92009A

SCREW,TAPPING,4X16

92009-1063

$3.25

92009B

SCREW,TAPPING,4X16

92009-1163

$3.26

92009C

SCREW,3X22

92009-1293

$3.53

92022

WASHER,5.2X16X1.2

92022-263

$1.41

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92069A

BULB,12V 3W,T7

92069-1020

Unavailable

92075

DAMPER,TRIP METER

92075-1286

$9.29

92075A

DAMPER,METER

92075-1712

$7.90

92075B

DAMPER,METER

92075-1713

$12.20

92075C

DAMPER,METER

92075-1714

$12.71

25001

METER-ASSY,MPH

25001-1753

$1,106.09

25001A

METER-ASSY,KPH

25001-1754

Unavailable

25005

SPEEDOMETER,MPH

25005-1408

$365.59

25005A

SPEEDOMETER,KPH

25005-1409

Unavailable
