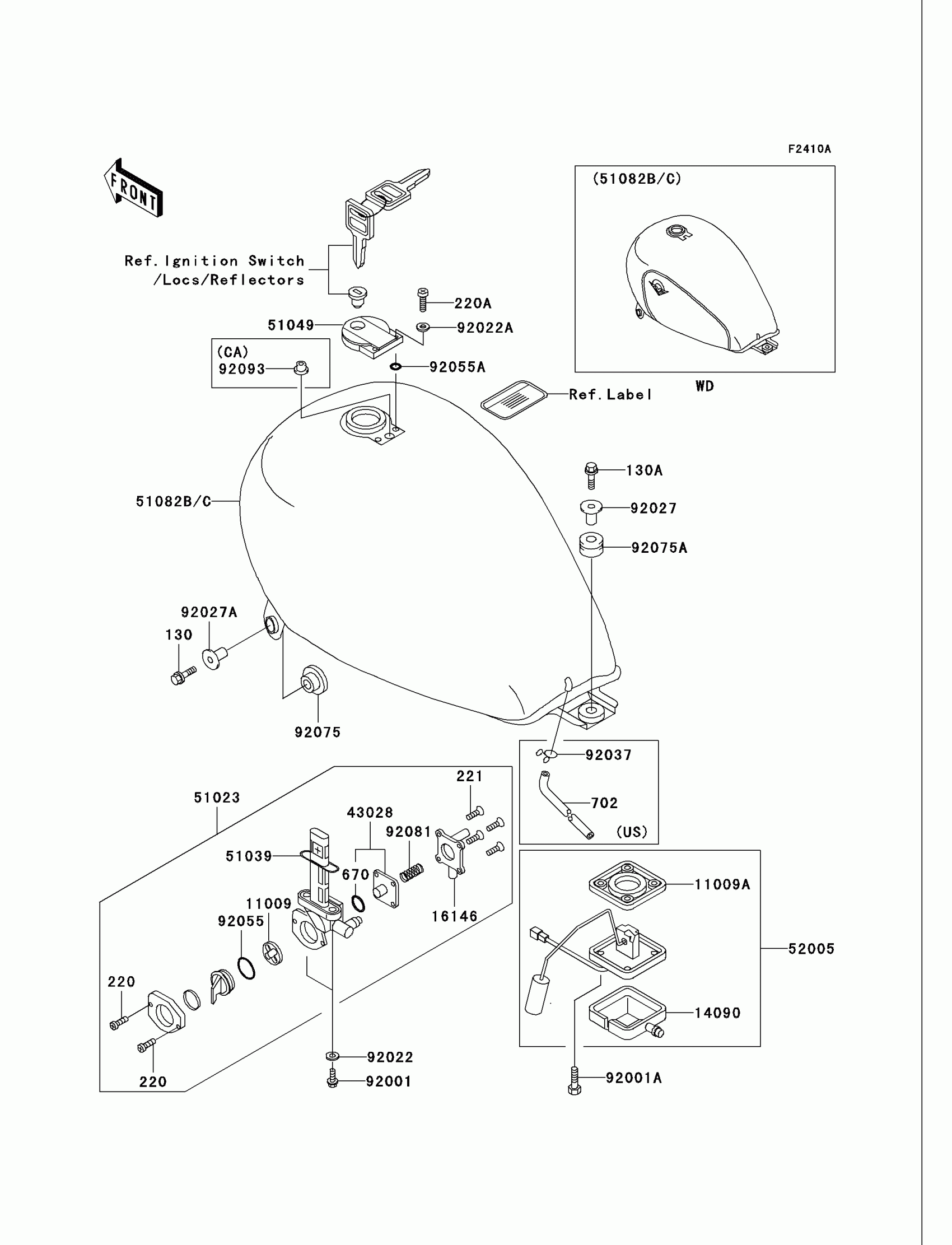

Kawasaki Vulcan 750 Fuel Tank(VN750-A19) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.54

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$23.78

43028

DIAPHRAGM

43028-1033

$21.24

51023

TAP-ASSY,FUEL

51023-1308

$129.77

51039

RING,TAP FLANGED

51039-003

$4.97

51049

CAP-TANK,FUEL

51049-1139

$121.28

52005

GAUGE,FUEL

52005-1070

$132.21

92001

BOLT,6X20

92001-1091

$3.12

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$3.12

92022A

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,L=19.3

92027-1780

$5.21

92027A

COLLAR

92027-1929

$8.70

130

BOLT-FLANGED,8X25

130C0825

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.27

92055

RING-O,TAP LEVER

92055-1085

$4.01

92055A

RING-O,ID=9

92055-1552

$2.80

92075

DAMPER,FUEL TANK

92075-1677

$6.06

92075A

DAMPER

92075-1736

$5.21

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.10

51082B

TANK-COMP-FUEL,RED/GRAYSTONE

51082-5324-364

Unavailable

51082C

TANK-COMP-FUEL,RED/GRAYSTONE

51082-5325-364

Unavailable

92037

CLAMP,TUBE

92037-1461

$3.08

702

TUBE-RUBBER,5X8X630

702A05630

$29.70

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18
