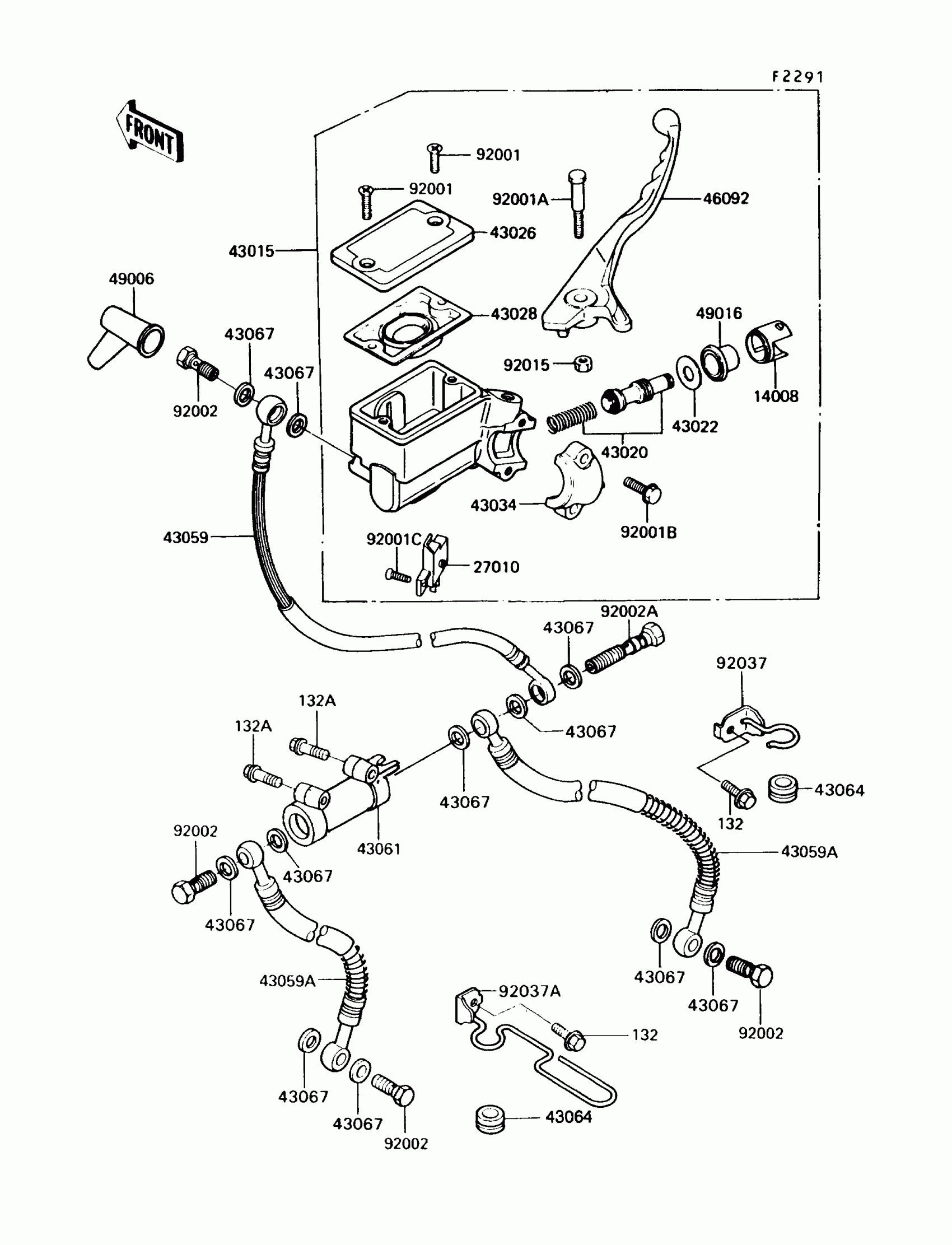

Kawasaki Vulcan 750 Front Master Cylinder(VN750-A6) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

14008

LINER,PISTON

14008-1035

$12.34

27010

SWITCH,BRAKE

27010-1056

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1313

$424.38

43020

PISTON-COMP-BRAKE

43020-1079

$92.31

43022

STOPPER-BRAKE,PISTON

43022-1009

$5.20

43026

CAP-BRAKE

43026-1056

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1029

$25.99

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

43059

HOSE-BRAKE

43059-1293

Unavailable

43059A

HOSE-BRAKE

43059-1310

$125.11

43061

JOINT-BRAKE

43061-1002

$73.52

43064

GROMMET,HOSE CLAMP

43064-006

$3.43

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092

LEVER-GRIP,FRONT BRAKE

46092-1150

Unavailable

49006

BOOT,DUST

49006-1040

$9.11

49016

COVER-SEAL,BRAKE PISTON

49016-1041

$8.83

92001

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$4.84

92001A

BOLT,6X37.3,BLACK

92001-1512

$9.97

92001B

BOLT,6X25,W/WASHER,BLACK

92001-1513

Unavailable

92001C

SCREW-CSK-CROS,4X10,BLACK

92001-1532

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.35

92002A

BOLT,OIL,L=37

92002-1909

$9.38

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1218

$21.22

92037A

CLAMP,BRAKE HOSE,LH

92037-1367

Unavailable
