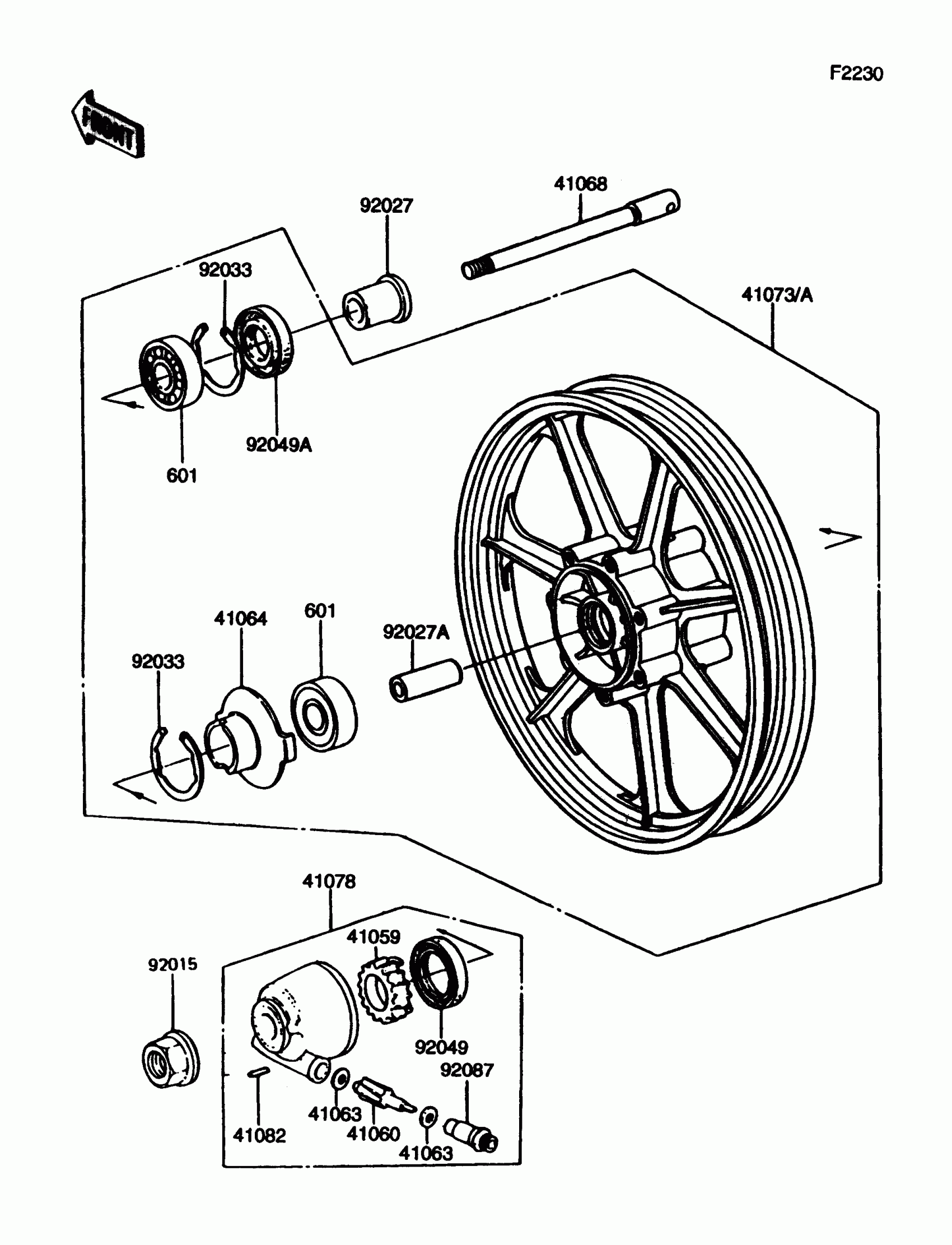

Kawasaki Vulcan 750 Front Hub Diagram

Description

Price

601

BEARING-BALL,#6302UG

601B6302UG

$38.63

41059

GEAR-METER SCREW,26T

41059-026

$43.35

41060

GEAR-METER SCREW,9T

41060-1016

Unavailable

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.81

41068

AXLE,FR

41068-1189

$74.19

41073

WHEEL-ASSY,FR,SILVER NO.1

41073-1425-CX

$1,131.07

41078

CASE-ASSY-METER GEAR,F.BLACK

41078-1024

Unavailable

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,14MM

92015-1407

$7.86

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,L=70

92027-1866

$20.88

92033

RING-SNAP,42MM

92033-1041

$4.88

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

92049A

SEAL-OIL,BJN22425

92049-1058

$7.72

92087

BUSHING-METER GEAR

92087-1002

$22.34
