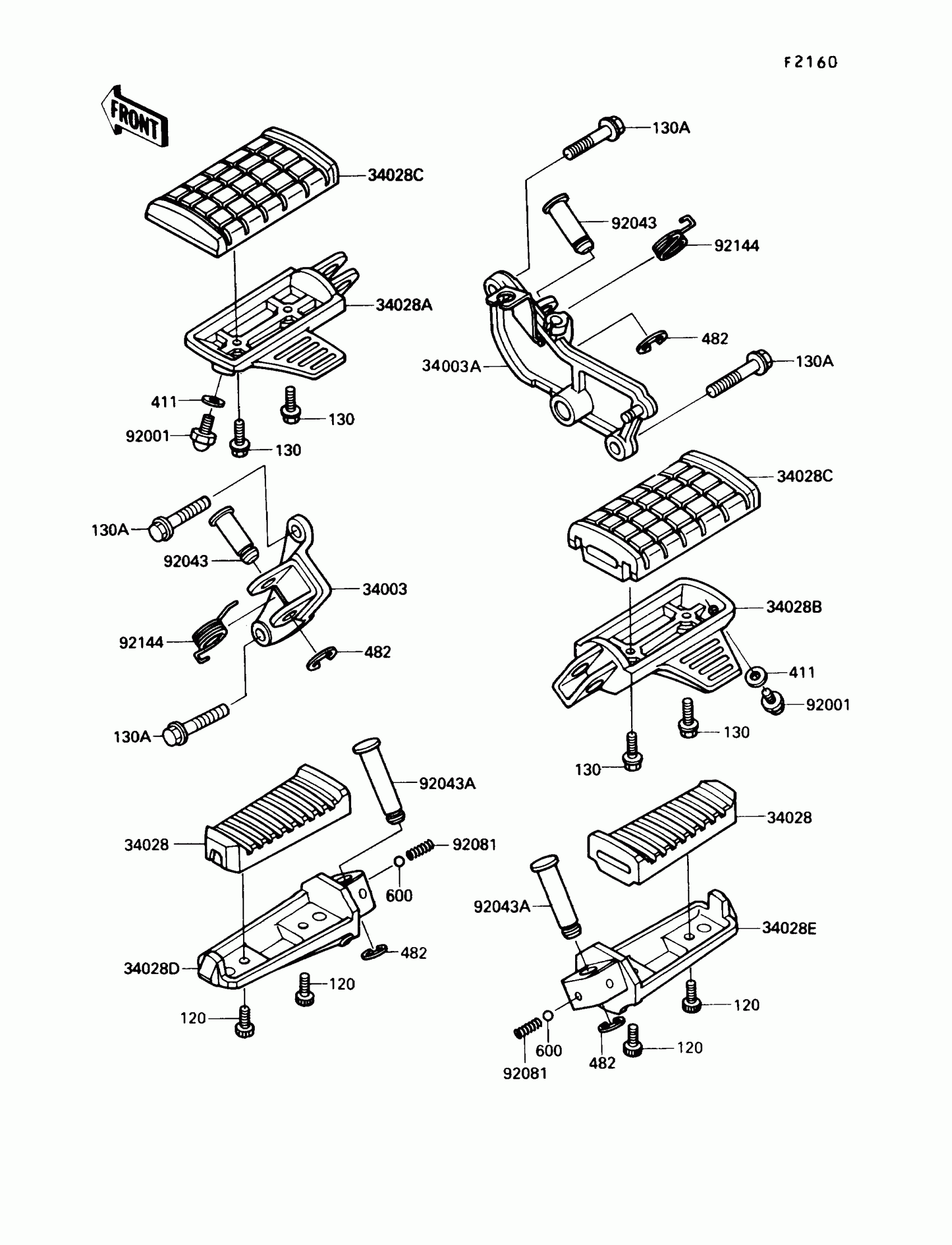

Kawasaki Vulcan 750 Footrest Diagram

#

Description
Price

120

BOLT-SOCKET,5X14

120Z0514

Unavailable

130

BOLT-FLANGED,5X12

130D0512

Unavailable

130A

BOLT-FLANGED,10X30

130J1030

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.98

600

BALL-STEEL,1/4

600A0800

$0.67

34003

HOLDER-STEP,FR,LH

34003-1225

$89.46

34003A

HOLDER-STEP,FR,RH

34003-1226

$243.23

34028

STEP,RR,RUBBER

34028-1060

$21.98

34028A

STEP,FR,LH

34028-1147

$74.26

34028B

STEP,FR,RH

34028-1148

$53.48

34028C

STEP,FR,RUBBER

34028-1149

$22.45

34028D

STEP,RR,LH

34028-1175

$83.98

34028E

STEP,RR,RH

34028-1176

$83.98

92001

BOLT,BANK SENSOR

92001-1905

$7.22

92043

PIN,12X37

92043-1144

$8.90

92043A

PIN,12X42.5

92043-1145

$9.27

92081

SPRING,COIL,STEP,RR

92081-1588

Unavailable

92144

SPRING,STEP RETURN

92144-1568

$5.15
