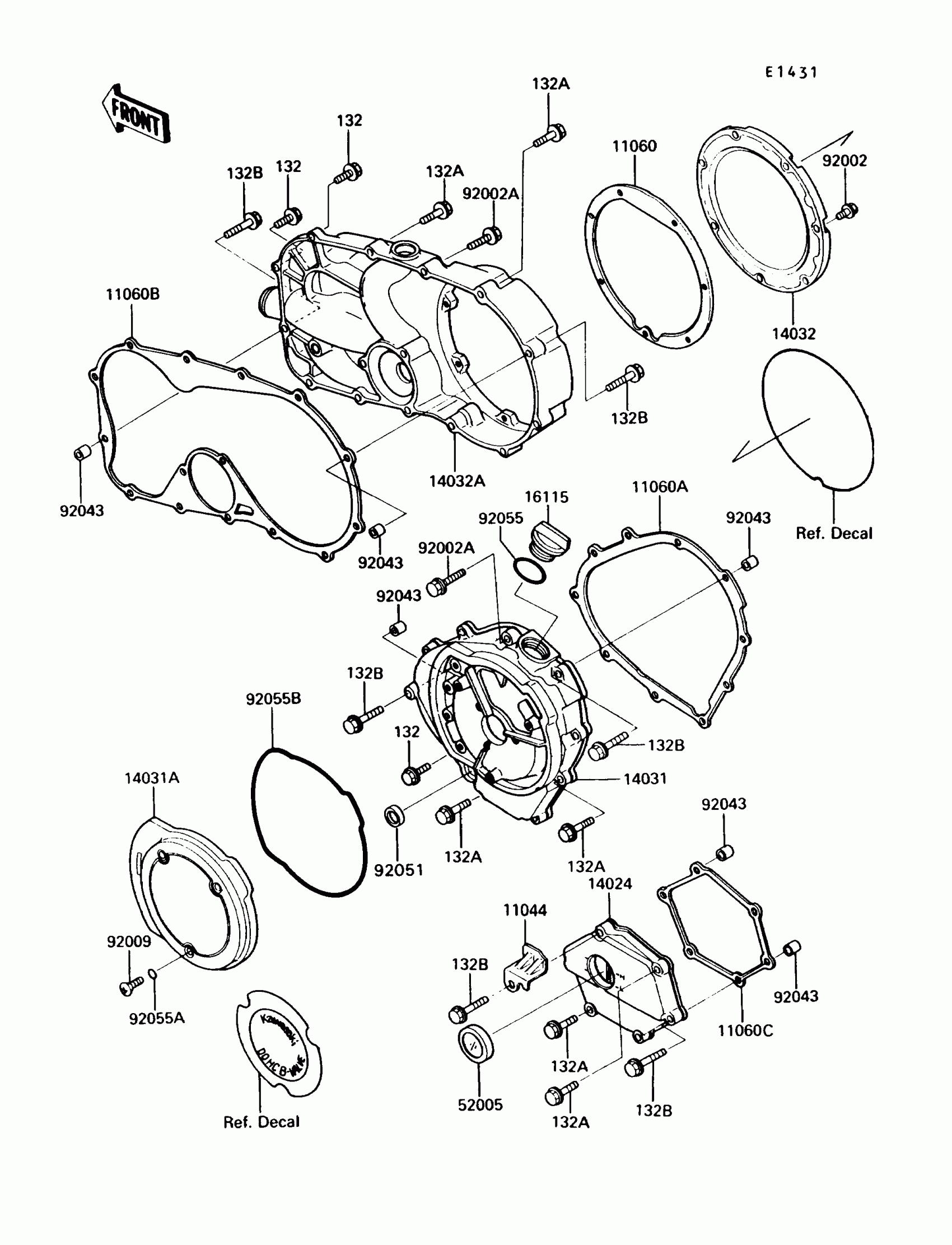

Kawasaki Vulcan 750 Engine Cover Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

132B

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

11044

BRACKET,LEAD WIRE

11044-1474

$9.19

11060

GASKET,CLUTCH OUTSIDE COVER

11060-1088

$12.44

11060A

GASKET,GENERATOR COVER

11060-1089

$27.63

11060B

GASKET,CLUTCH COVER

11060-1090

$32.98

11060C

GASKET,TRANSMISSION COVER

11060-1091

$10.26

14024

COVER,TRANSMISSION

14024-1175

$129.00

14031

COVER-GENERATOR

14031-1187

$250.77

14031A

COVER-GENERATOR,OUTSIDE

14031-1188

$136.85

14032

COVER-CLUTCH,OUTSIDE

14032-1207

$138.23

14032A

COVER-CLUTCH

14032-1211

$449.74

16115

CAP-OIL FILLER

16115-1055

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$14.45

92002

BOLT,6X16

92002-1439

$3.72

92002A

BOLT,6X30

92002-1622

$7.15

92009

SCREW,6X20

92009-1156

$3.92

92043

PIN,6.2X8X14

92043-1263

$0.49

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,31.5X2.6

92055-049

$3.43

92055A

RING-O,5.28X1.78

92055-109

$3.49

92055B

RING-O,GENERATOR COVER

92055-1319

Unavailable
