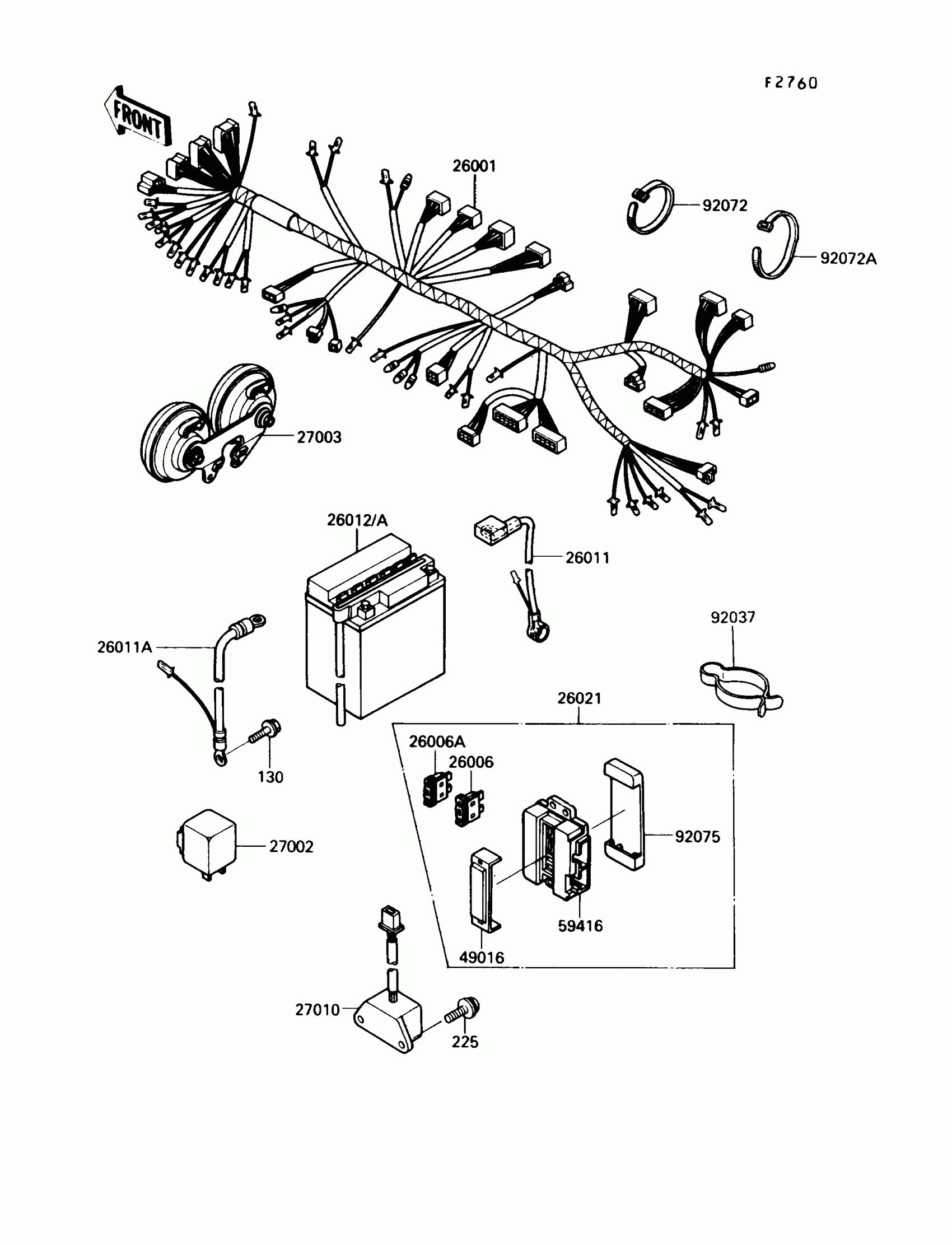

Kawasaki Vulcan 750 Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable

26001

HARNESS,MAIN

26001-1961

$379.94

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1310

$38.93

26011A

WIRE-LEAD,BATTERY(-)

26011-1311

$32.75

26012A

BATTERY,12V 14AH,YB14L-A2

26012-1238

$84.21

26021

JUNCTION BOX

26021-1073

$222.22

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

$96.83

27003

HORN,DOUBLE

27003-1218

$221.24

27010

SWITCH,RESERVE LIGHTING

27010-1069

$228.55

49016

COVER-SEAL,FUSE

49016-1106

$9.10

59416

CASE-ELECTRIC,FUSE & RELAY BOX

59416-1052

$193.84

92037

CLAMP

92037-093

$10.92

92072

BAND,L=149

92072-031

$3.97

92072A

BAND,L=186

92072-056

$3.97

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64
