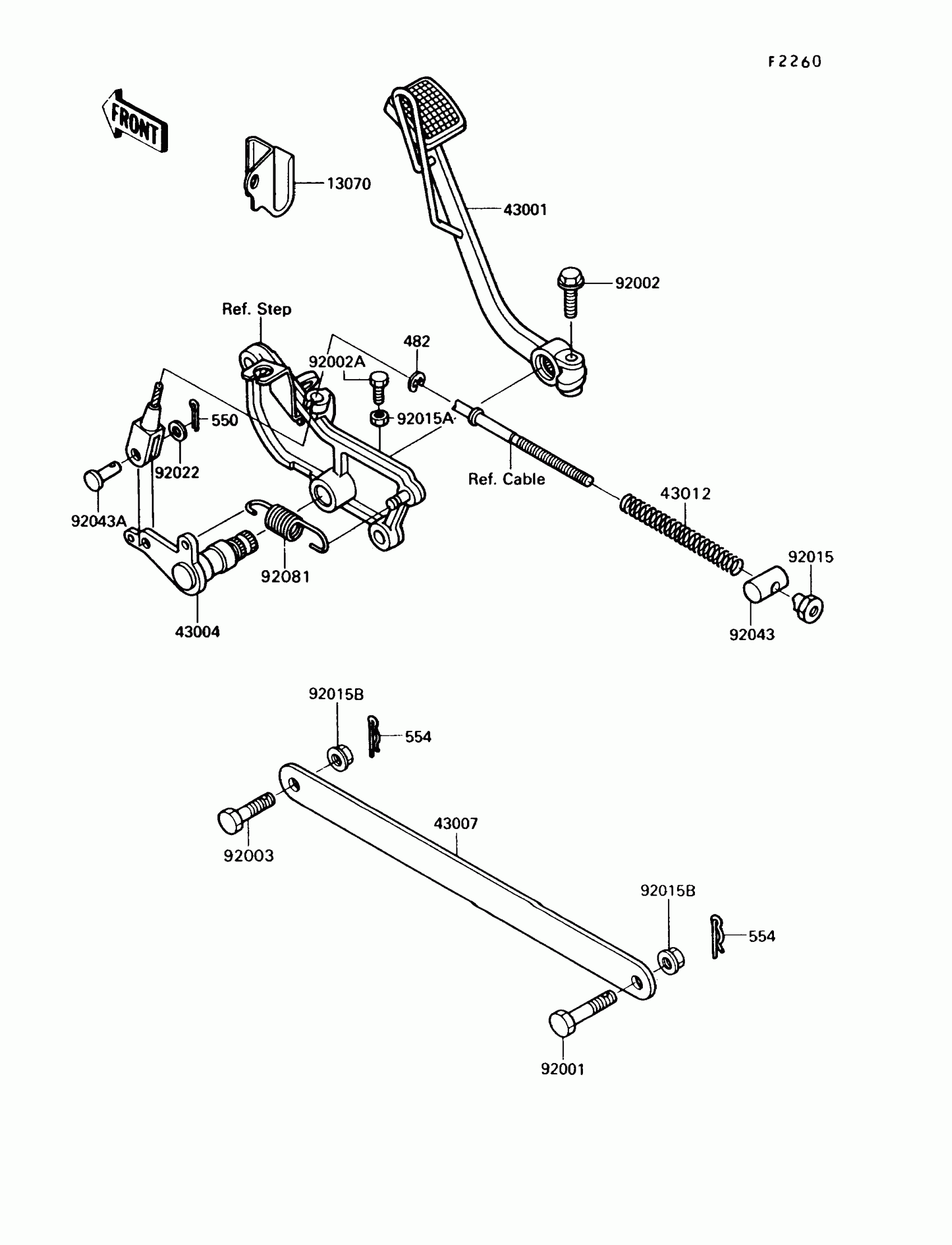

Kawasaki Vulcan 750 Brake Pedal Diagram

Description

Price

482

CIRCLIP-TYPE-E,6MM

482K6000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

13070

GUIDE,CABLE

13070-1134

$13.78

43001

LEVER-BRAKE,PEDAL

43001-1178

$129.54

43004

SHAFT-BRAKE

43004-1109

$62.23

43007

ROD-TORQUE

43007-1132

$40.50

43012

SPRING,BRAKE ROD

43012-001

$3.69

92001

BOLT,10X37

92001-1519

$7.49

92002

BOLT,FLANGED,8X25

92002-1201

$4.17

92002A

BOLT,6X20

92002-1373

$3.92

92003

BOLT,10X29

92003-096

Unavailable

92015

NUT,BRAKE ROD

92015-042

$4.93

92015A

NUT,6MM

92015-1391

$2.05

92015B

NUT,FLANGED,10MM

92015-1428

$3.97

92022

WASHER,8.5X16X1.2

92022-1582

$0.84

92043

PIN,BRAKE ROD

92043-065

$4.42

92043A

PIN,8X16

92043-1013

Unavailable

92081

SPRING,BRAKE PEDAL

92081-1845

Unavailable
