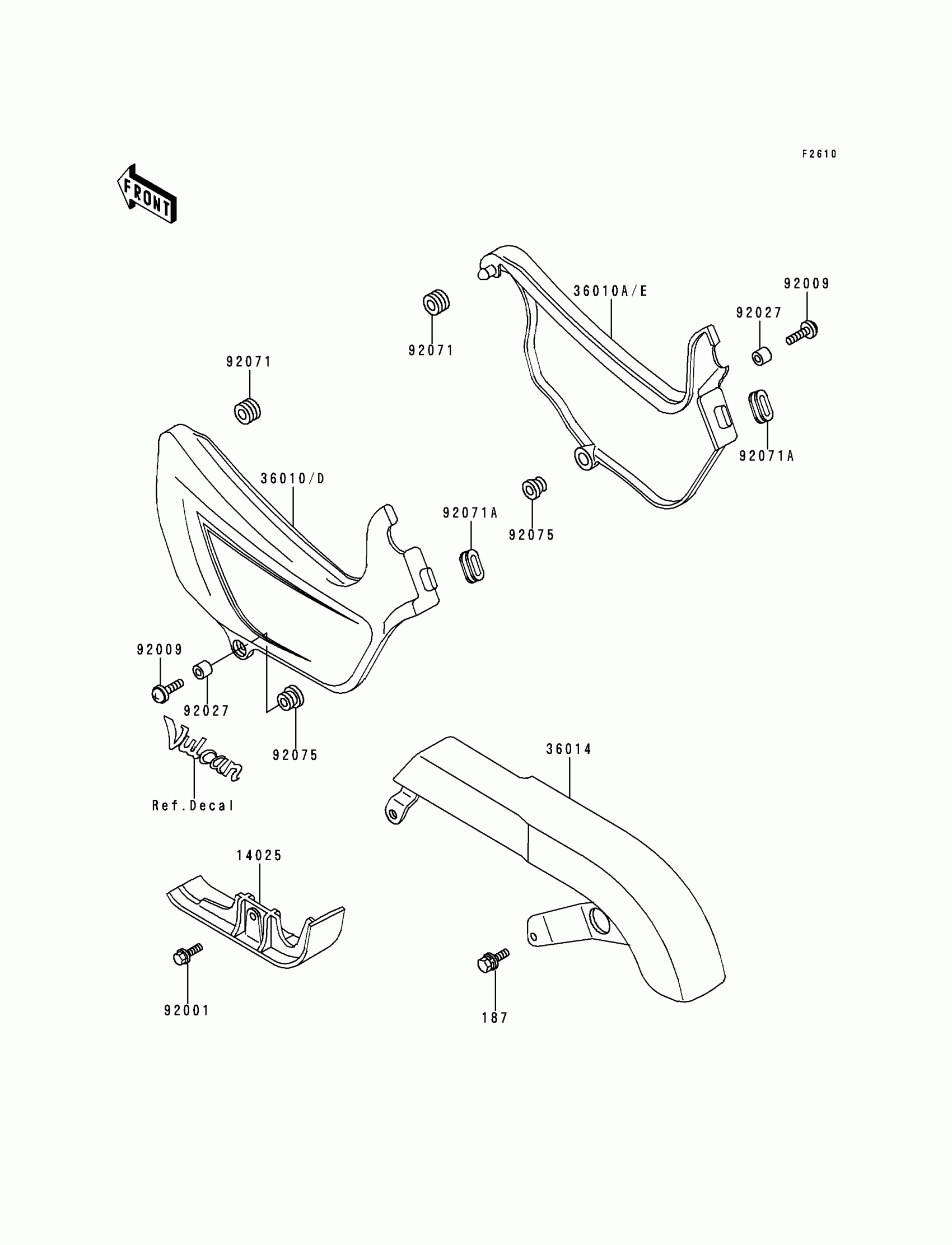

Kawasaki Vulcan 500 Side Covers/Chain Cover(EN500-A1/A2/A3) Diagram

Description

Price

187

BOLT-UPSET-WSP

187B0616

Unavailable

14025

COVER,DRIVE BELT

14025-1381

Unavailable

36010D

COVER-SIDE,LH,C.A.BLUE

36010-5342-FC

$125.81

36010E

COVER-SIDE,RH,C.A.BLUE

36010-5343-FC

$125.81

36014

CASE-CHAIN

36014-1163

Unavailable

92001

BOLT,6X16

92001-1772

$3.68

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92027

COLLAR,6.8X10X12

92027-162

$4.93

92071

GROMMET

92071-056

$3.25

92071A

GROMMET

92071-1190

$4.58

92075

RUBBER,FENDER COVER

92075-174

$3.65

36010

COVER-SIDE,LH,C.S.RED

36010-5338-GV

Unavailable

36010A

COVER-SIDE,RH,C.S.RED

36010-5339-GV

Unavailable
