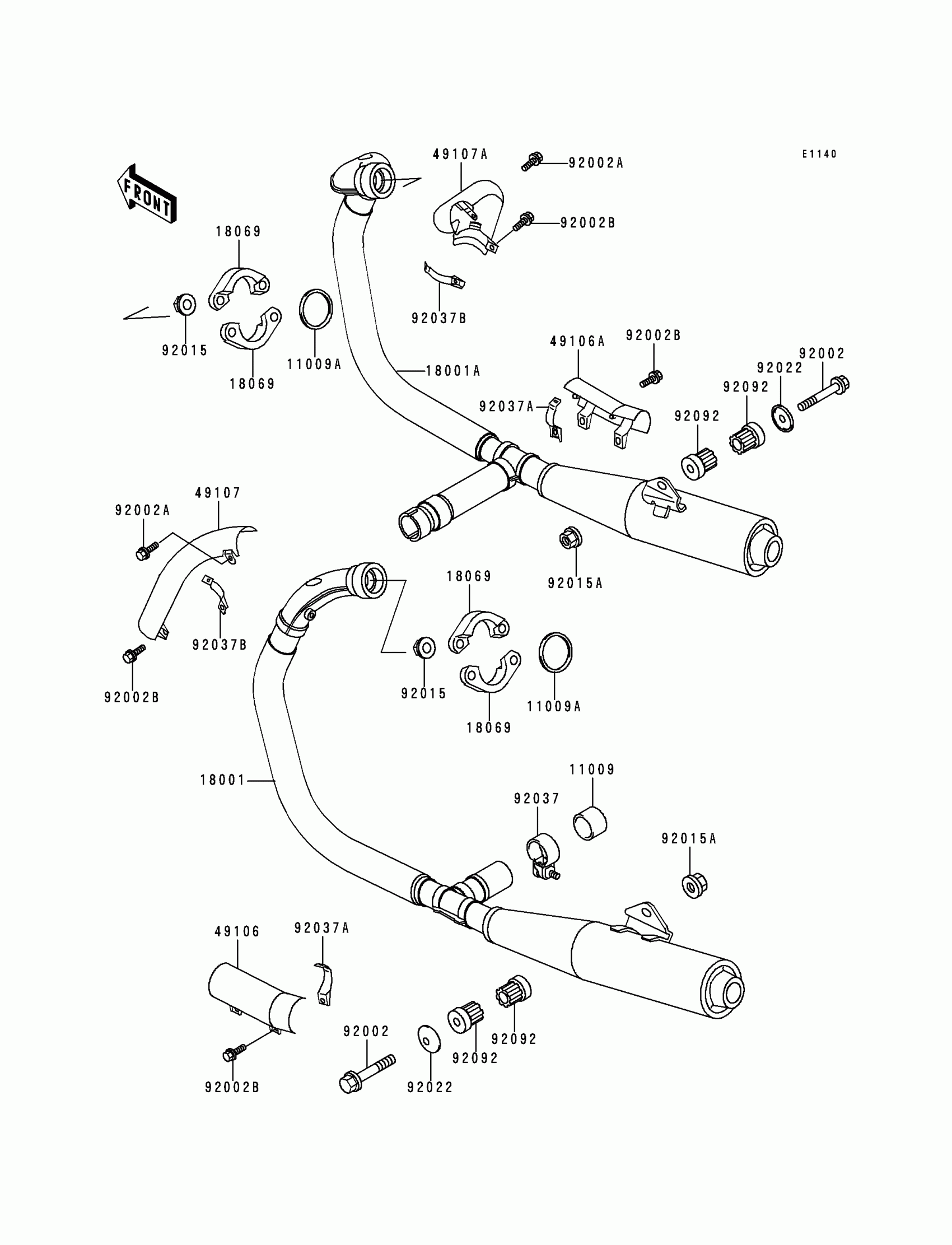

Kawasaki Vulcan 500 Mufflers Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$21.24

11009A

GASKET,EXHAUST PIPE H

11009-1840

$6.49

18001

MUFFLER,LH

18001-1743

$576.07

18001A

MUFFLER,RH

18001-1744

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1064

$34.29

49106

COVER-MUFFLER,LH

49106-1115

$98.10

49106A

COVER-MUFFLER,RH

49106-1116

Unavailable

49107

COVER-EXHAUST PIPE,LH

49107-1062

Unavailable

49107A

COVER-EXHAUST PIPE,RH

49107-1063

Unavailable

92002

BOLT,10X55

92002-1127

$9.27

92002A

BOLT,6X8

92002-1604

Unavailable

92002B

BOLT,6X20

92002-1607

$4.24

92015

NUT,CAP,8MM

92015-1371

$3.97

92015A

NUT,FLANGED,10MM

92015-1387

$3.43

92022

WASHER

92022-289

$12.92

92037

CLAMP,42MM

92037-1349

$10.26

92037A

CLAMP,EXHAUST PIPE COVER

92037-1671

$14.22

92037B

CLAMP,EXHAUST PIPE COVER

92037-1699

$12.39

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.70
