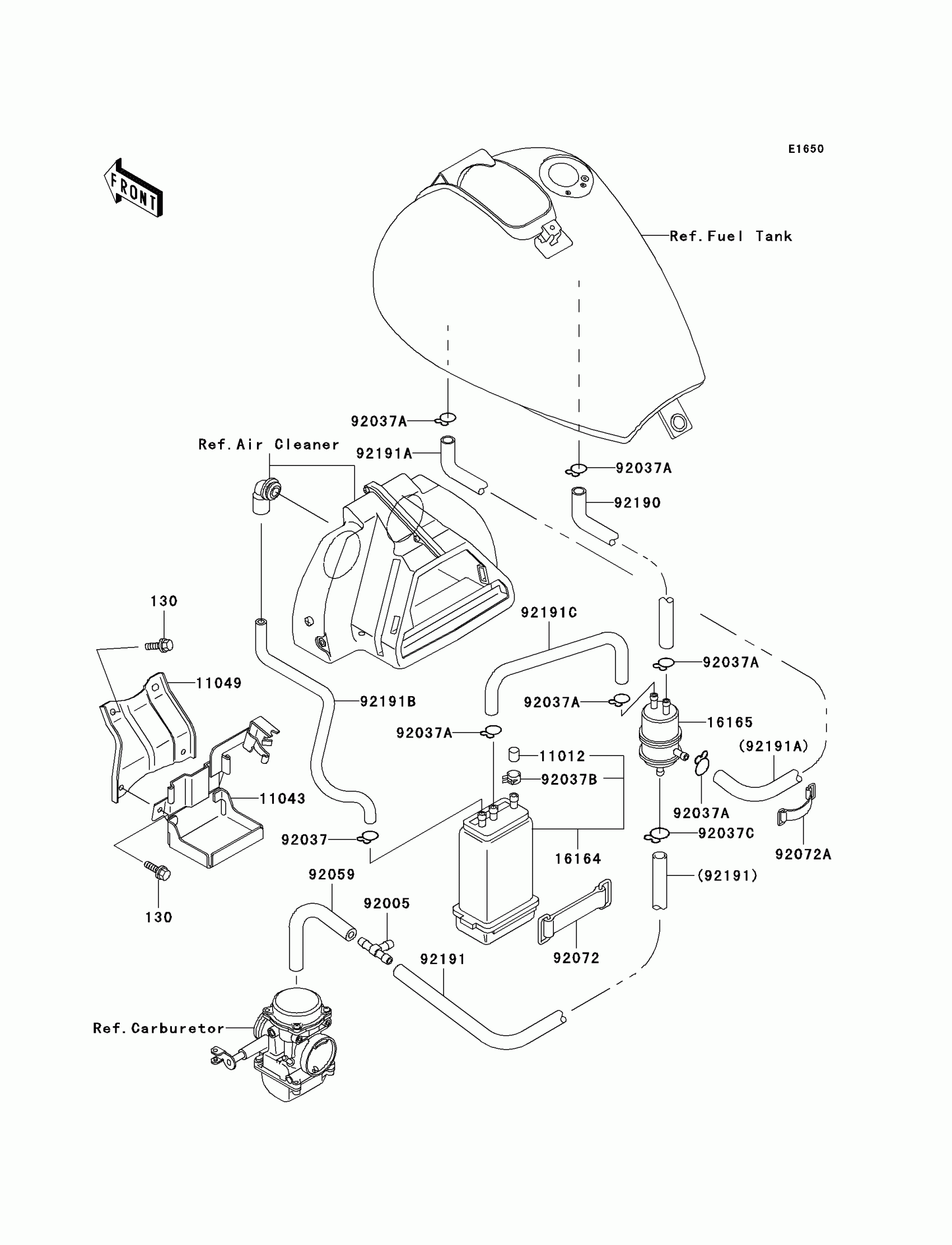

Kawasaki Vulcan 500 LTD Fuel Evaporative System(CA) Diagram

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

11012

CAP,CANISTER

11012-1388

$8.31

11043

BRACKET,CANISTER

11043-1184

$61.73

11049

BRACKET

11049-1663

$32.46

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.97

92059

TUBE,4X9X100,WHITE

92059-1591

Unavailable

92072

BAND,L=142.1

92072-006

$10.11

92072A

BAND,L=50

92072-1419

$12.72

92190

TUBE,SEPA-TANK

92190-1620

$40.83

92191

TUBE,WHITE

92191-1062

$19.86

92191A

TUBE,RED

92191-1063

$32.70

92191B

TUBE,GREEN

92191-1065

$23.53

92191C

TUBE,BLUE

92191-1076

$8.24
