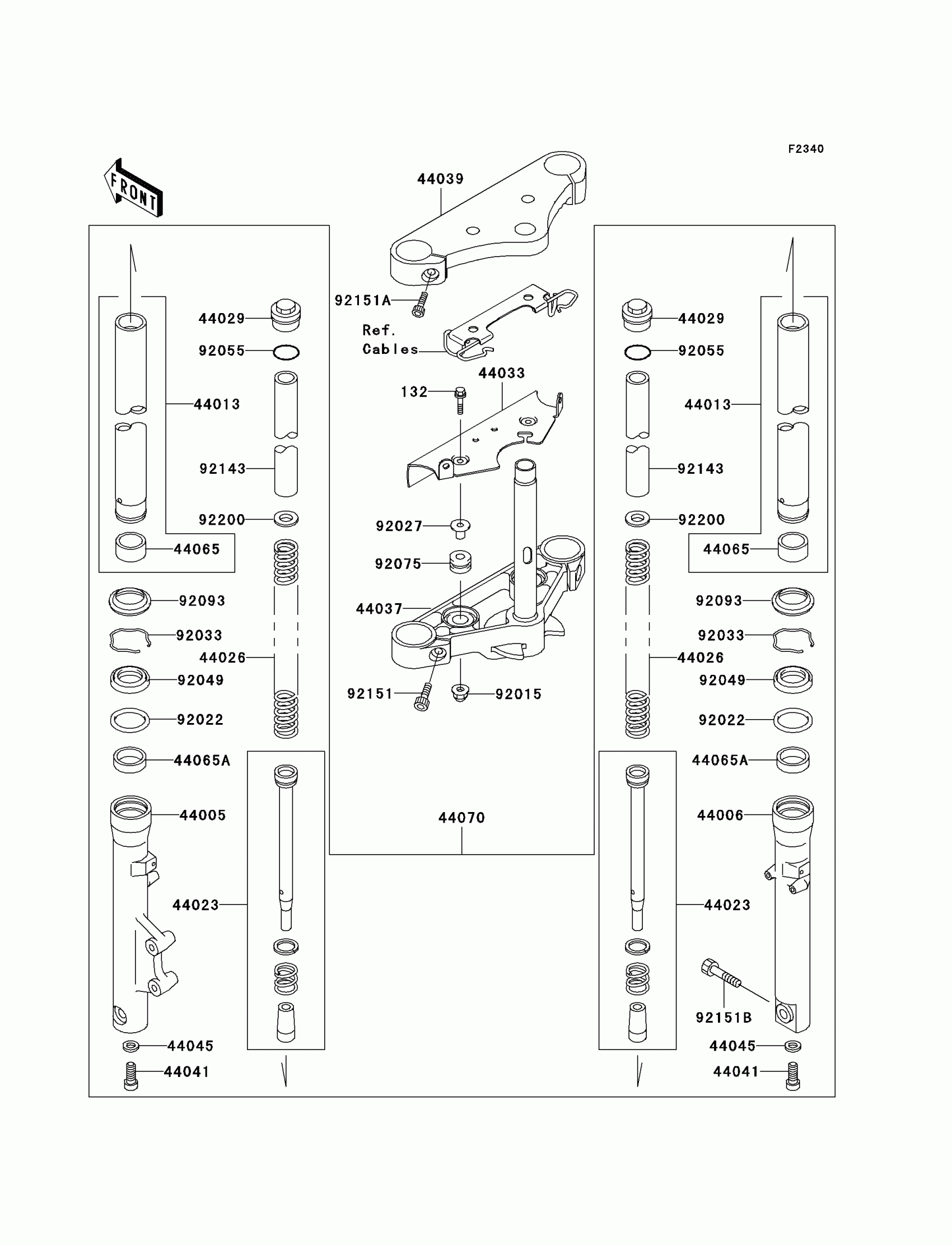

Kawasaki Vulcan 500 LTD Front Fork(C6F) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

44005

PIPE-LEFT FORK OUTER

44005-1365

$458.21

44006

PIPE-RIGHT FORK OUTER

44006-1364

$458.21

44013

PIPE-FORK INNER

44013-1422

$339.21

44023

CYLINDER-COMP-FORK

44023-1099

$205.74

44026

SPRING-FRONT FORK

44026-1606

Unavailable

44029

SEAT-FORK SPRING

44029-1147

$46.64

44033

COVER-FORK

44033-1213

$83.11

44037

HOLDER-FORK UNDER

44037-1341

$395.48

44039

HOLDER-FORK UPPER

44039-1265

$287.47

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

44045

GASKET

44045-057

$3.86

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1114

$19.99

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$26.35

44070

DAMPER-ASSY,FORK

44070-1482

$1,280.02

92015

NUT,CAP,6MM

92015-1385

$3.43

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92027

COLLAR,L=16.1

92027-1847

$4.93

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL,FORK OUTER TUBE

92049-1494

$19.82

92055

RING-O

92055-1321

$1.19

92075

DAMPER

92075-1035

$4.58

92093

SEAL,FORK OUTER TUBE

92093-1472

$22.03

92143

COLLAR,FORK,L=250

92143-1861

$25.19

92151

BOLT,SOCKET,10X25

92151-1080

$7.49

92151A

BOLT,SOCKET,8X25

92151-1081

$4.80

92151B

BOLT,SOCKET,10X40

92151-1082

$8.42

92200

WASHER

92200-1302

$4.32
