2000 Kawasaki Vulcan 500 LTD Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

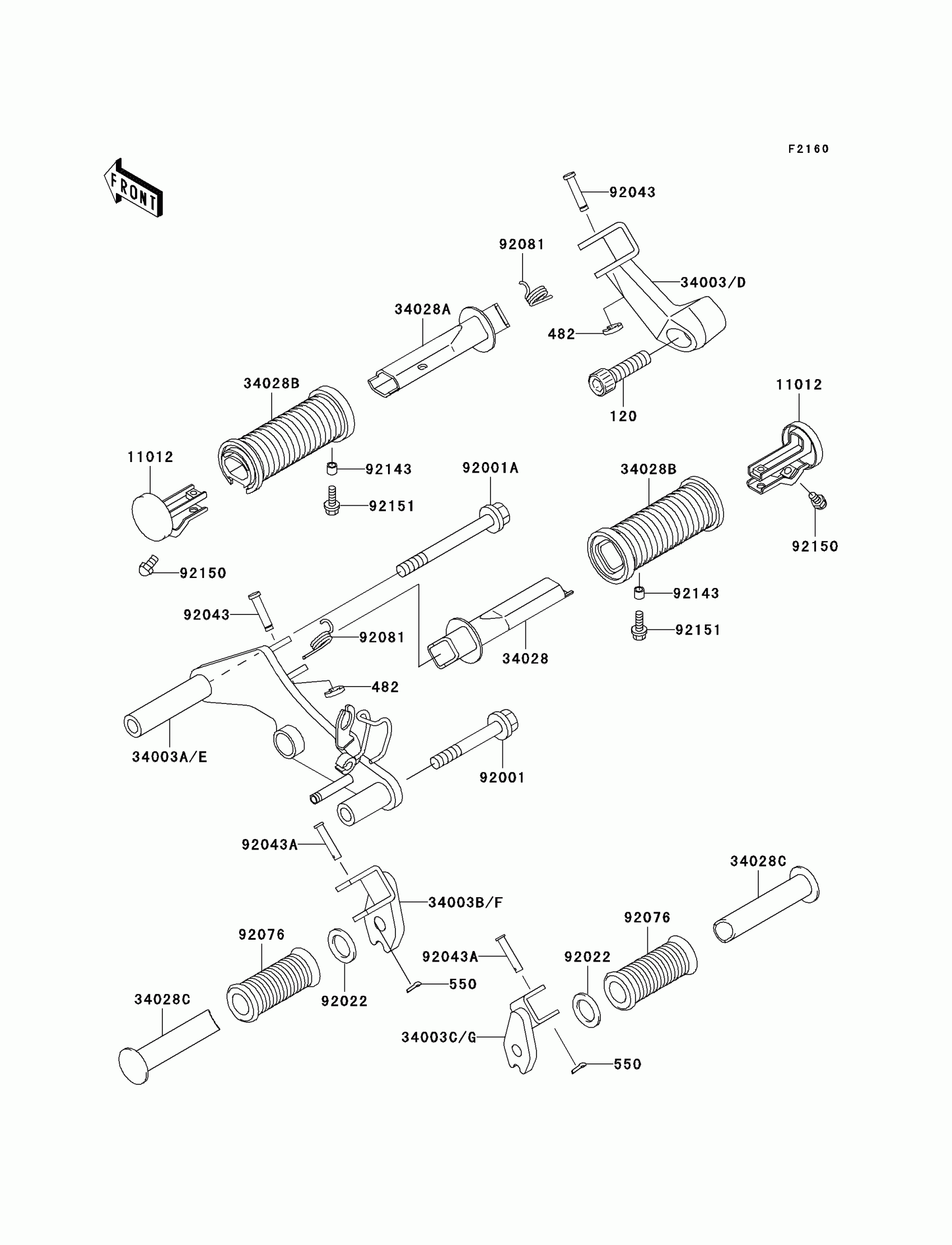

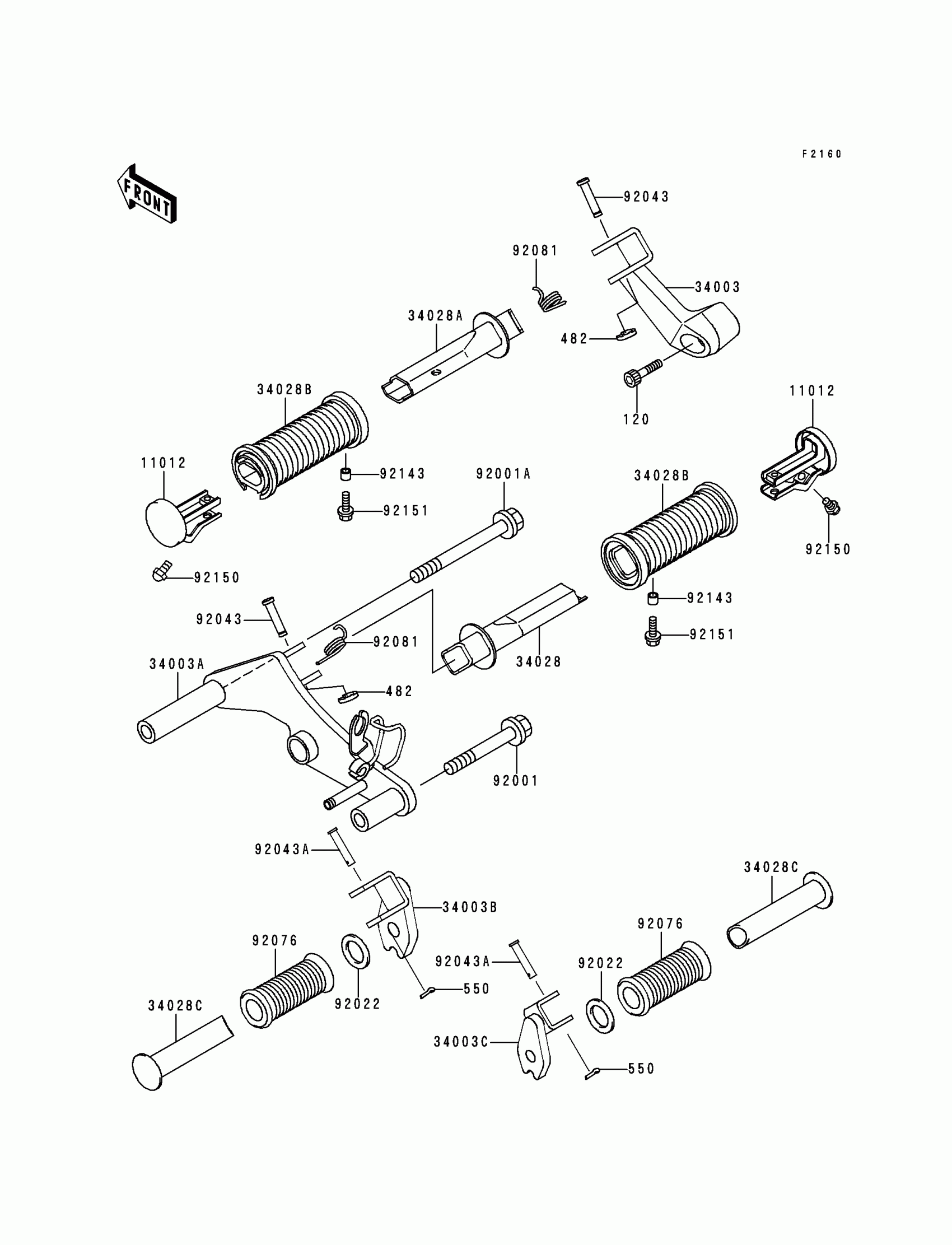

2000 Kawasaki Vulcan 500 LTD Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,12X45

120S1245

1
Out of stock

482

CIRCLIP-TYPE-E

482L7000

1

$3.12

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

11012

CAP,FRONT STEP

11012-1957

1

$46.85

In stock

34003

HOLDER-STEP,FR,LH

34003-1437

1

$89.46

In stock

34003A

HOLDER-STEP,FR,RH

34003-1438

1

$159.72

In stock

34003B

HOLDER-STEP,RR,LH

34003-1439

1

$37.15

In stock

34003C

HOLDER-STEP,RR,RH

34003-1440

1

$37.15

In stock

34028

STEP,FR,RH

34028-1412

1

$46.56

In stock

34028A

STEP,FR,LH

34028-1413

1

$46.56

In stock

34028B

STEP,FR,RUBBER

34028-1414

1

$25.12

In stock

34028C

STEP,RR

34028-1420

1
Out of stock

92001

BOLT,FLANGED,10X70

92001-1618

1

$8.23

In stock

92001A

1

$8.44

In stock

92022

WASHER,20X30X2.3

92022-1568

1

$3.85

In stock

92043

PIN,8X36.5

92043-1339

1

$7.71

In stock

92043A

PIN,6X28

92043-1464

1

$6.44

In stock

92076

DAMPER

92076-020

1

$22.91

In stock

92081

SPRING,STEP

92081-1133

1

$5.95

In stock

92143

COLLAR,5.6X8X7

92143-1336

1

$1.12

In stock

92150

BOLT,BANK SENSOR

92150-1114

1

$10.93

In stock

92151

BOLT,SOCKET,5X20

92151-1096

1

$2.36

In stock
