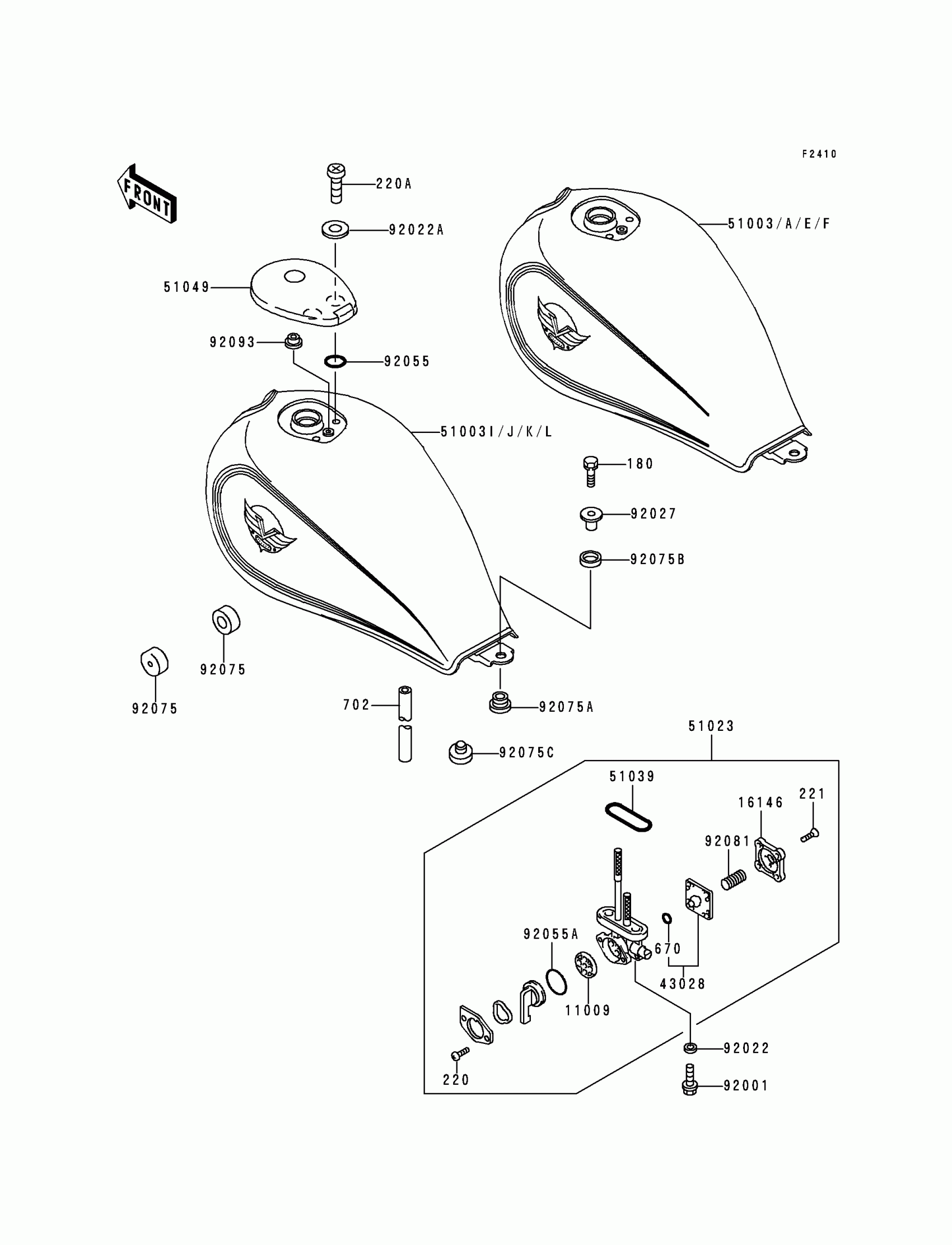

Kawasaki Vulcan 500 Fuel Tank(EN500-A1/A2/A3) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.33

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$23.78

43028

DIAPHRAGM

43028-1033

$18.50

180

BOLT-UPSET-WS,6X25

180D0625

$3.25

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

51023

TAP-ASSY,FUEL

51023-1142

$118.03

51039

RING,TAP FLANGED

51039-003

$4.71

51049

CAP-TANK,FUEL

51049-1088

$112.77

92001

BOLT,6X20

92001-1091

$2.99

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=13.1

92027-251

Unavailable

92055

RING-O

92055-1023

$2.99

92055A

RING-O,TAP LEVER

92055-1085

$3.85

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

RUBBER,FENDER COVER

92075-174

$3.65

92075B

DAMPER,FEMALE

92075-175

$3.35

92075C

DAMPER,9X24X14

92075-281

$4.67

92081

SPRING,TAP DIAPHRAGM

92081-1240

$2.97

51003I

TANK-COMP-FUEL,RED/GRAY

51003-5213-JL

$1,214.32

51003J

TANK-COMP-FUEL,BLUE/GRAY

51003-5214-JM

Unavailable

51003K

TANK-COMP-FUEL,RED/GRAY

51003-5215-JL

$1,137.15

51003L

TANK-COMP-FUEL,BLUE/GRAY

51003-5216-JM

Unavailable

702

TUBE-RUBBER,5X8X620

702A05620

$29.70

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
