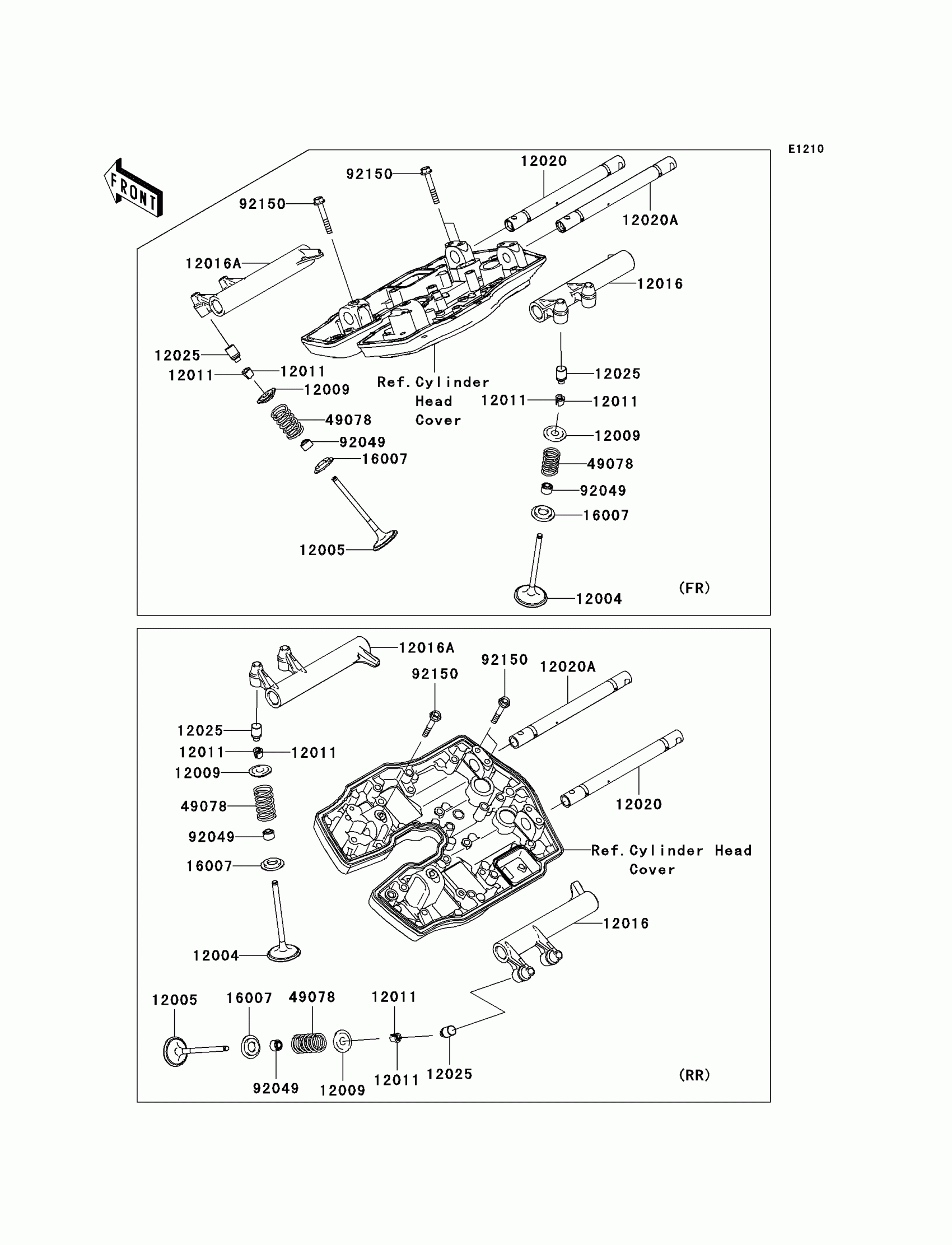

Kawasaki Vulcan 2000 Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0001

$72.66

12005

VALVE-EXHAUST

12005-0001

$79.77

12009

RETAINER-VALVE SPRING

12009-0002

$13.54

12011

COLLET

12011-0001

$4.61

12016

ARM-ROCKER

12016-0015

$275.20

12016A

ARM-ROCKER

12016-0016

$262.53

12020

SHAFT-ROCKER,EXHAUST

12020-0001

$73.41

12020A

SHAFT-ROCKER,INTAKE

12020-0002

$70.11

12025

ADJUSTER-LASH

12025-1053

$105.34

16007

SEAT-SPRING

16007-0001

$4.14

49078

SPRING-ENGINE VALVE

49078-0001

$15.20

92049

SEAL-OIL,RVC2 6 10.5 9.4

92049-0009

$11.73

92150

BOLT,6X38

92150-1301

$3.29
