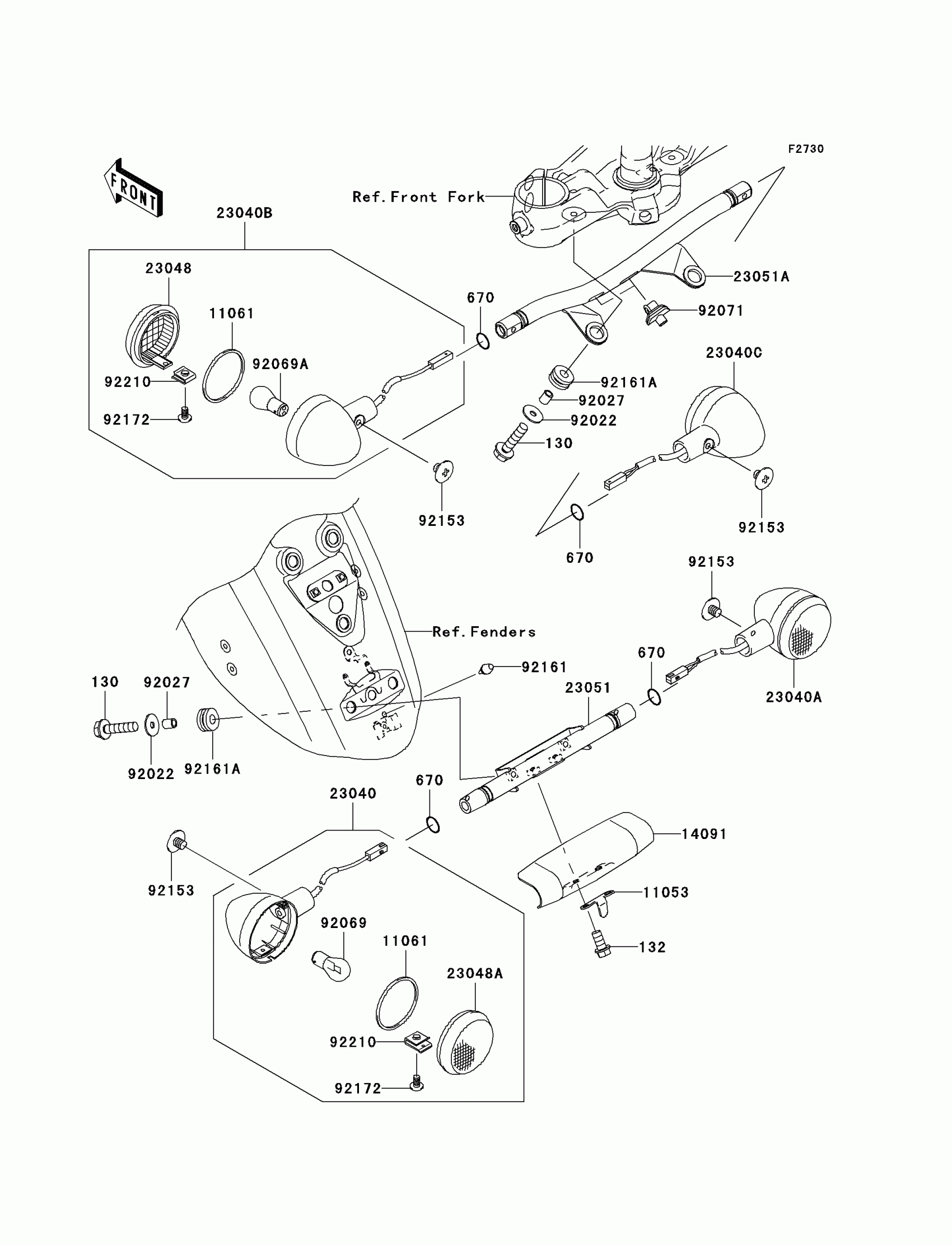

Kawasaki Vulcan 2000 Turn Signals Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130L0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

670

O RING,16MM

670B2016

$1.49

11053

BRACKET,REAR SIGNAL LAMP

11053-0929

$8.03

11061

GASKET,SIGNAL LAMP

11061-0005

$6.85

14091

COVER,REAR SIGNAL LAMP

14091-1572

$73.74

23040

LAMP-SIGNAL,RR,LH

23040-0036

$88.36

23040A

LAMP-SIGNAL,RR,RH

23040-0037

$88.36

23040B

LAMP-SIGNAL,FR,LH

23040-0038

$88.02

23040C

LAMP-SIGNAL,FR,RH

23040-0039

$88.02

23048

LENS-SIGNAL LAMP,FR

23048-0001

$10.57

23048A

LENS-SIGNAL LAMP,RR

23048-0002

$10.57

23051

BRACKET-SIGNAL LAMP,RR

23051-0002

$183.64

23051A

BRACKET-SIGNAL LAMP,FR

23051-0003

$95.84

92022

WASHER,7X24X1.6

92022-1160

$2.99

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

Not Available As Spare Part - Friction Washer

Unavailable

92069A

BULB,12V 21/5W

92069-1084

$7.33

92071

GROMMET,SIGNAL LAMP

92071-0007

$5.54

92153

BOLT,6MM

92153-0396

$4.67

92161

DAMPER

92161-0091

$4.43

92161A

DAMPER

92161-0163

$5.79

92172

SCREW,4X8

92172-0146

$3.43

92210

NUT,4MM

92210-0155

$3.98
