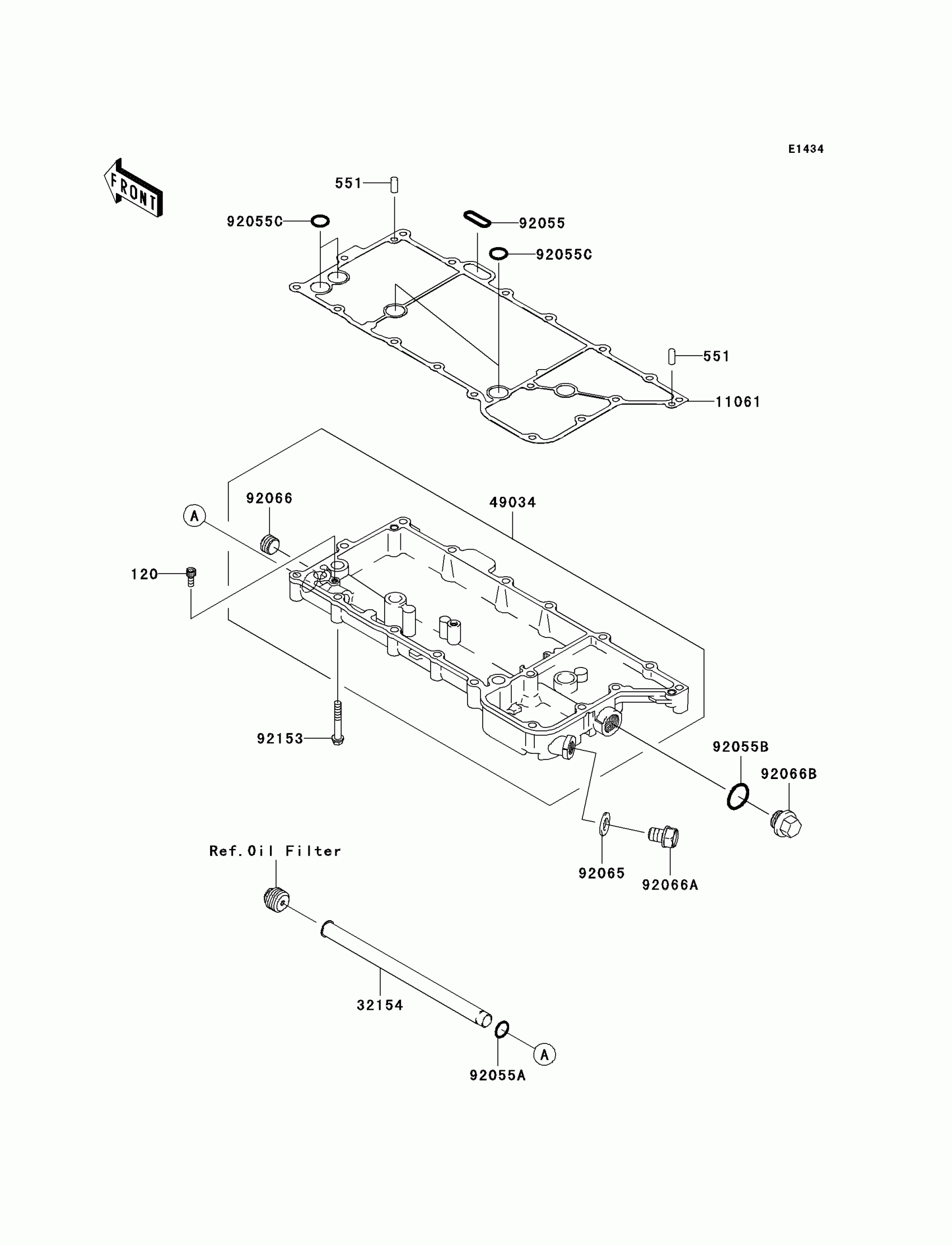

Kawasaki Vulcan 2000 Oil Pan Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

551

PIN-DOWEL,6X14

551A0614

$3.53

11061

GASKET,OIL PAN

11061-0021

$61.52

32154

PIPE

32154-0065

$11.86

49034

PAN-OIL

49034-0012

$254.48

92055

RING-O

92055-0009

Unavailable

92055A

RING-O,ID=13.8

92055-1141

$2.99

92055B

RING-O,20X2

92055-1146

$6.55

92055C

RING-O,13.2X2.4

92055-1373

$3.59

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG

92066-0042

$7.80

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066B

PLUG,MAIN GALLERY,18X9

92066-1394

$8.34

92153

BOLT,6X40

92153-0710

$2.84
