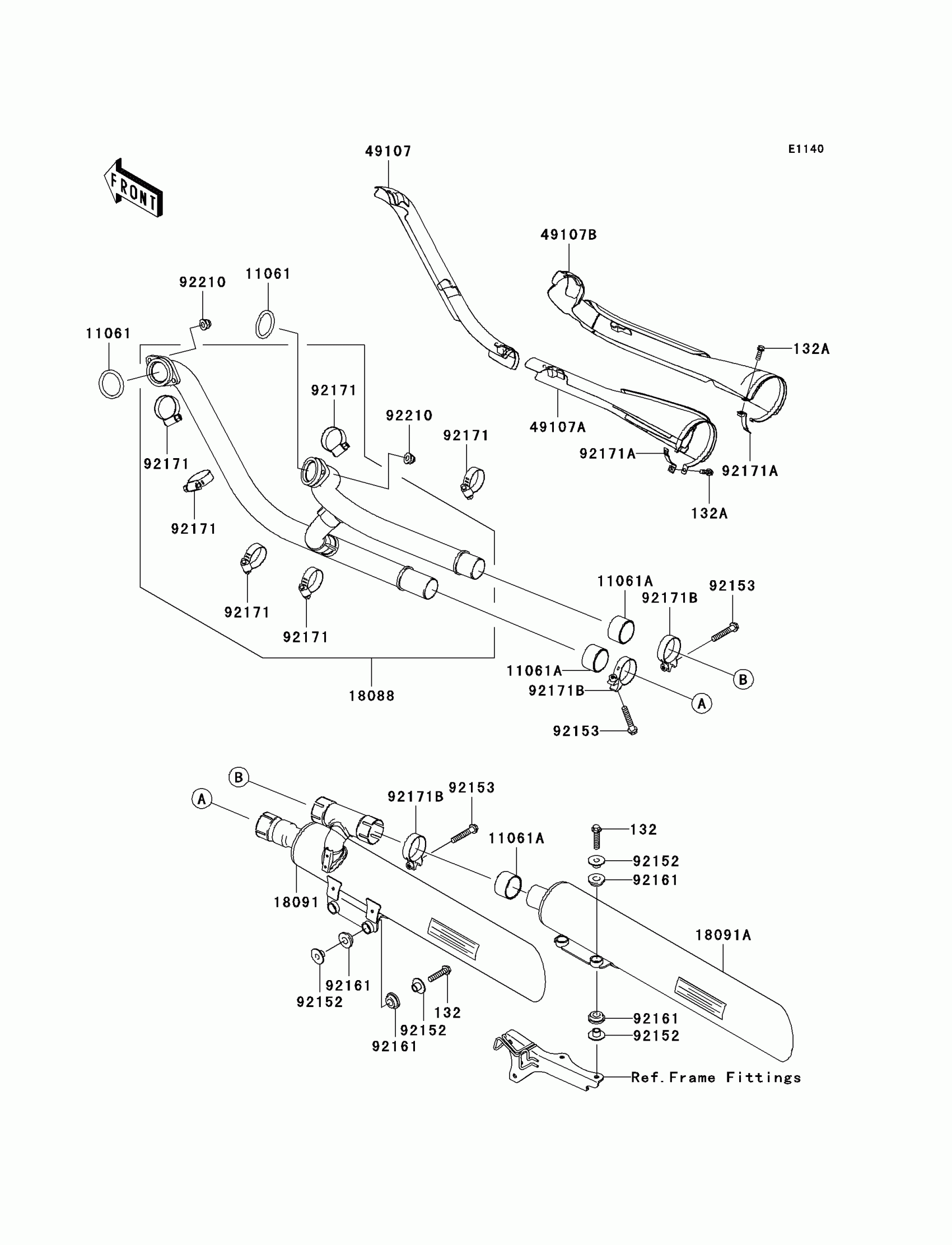

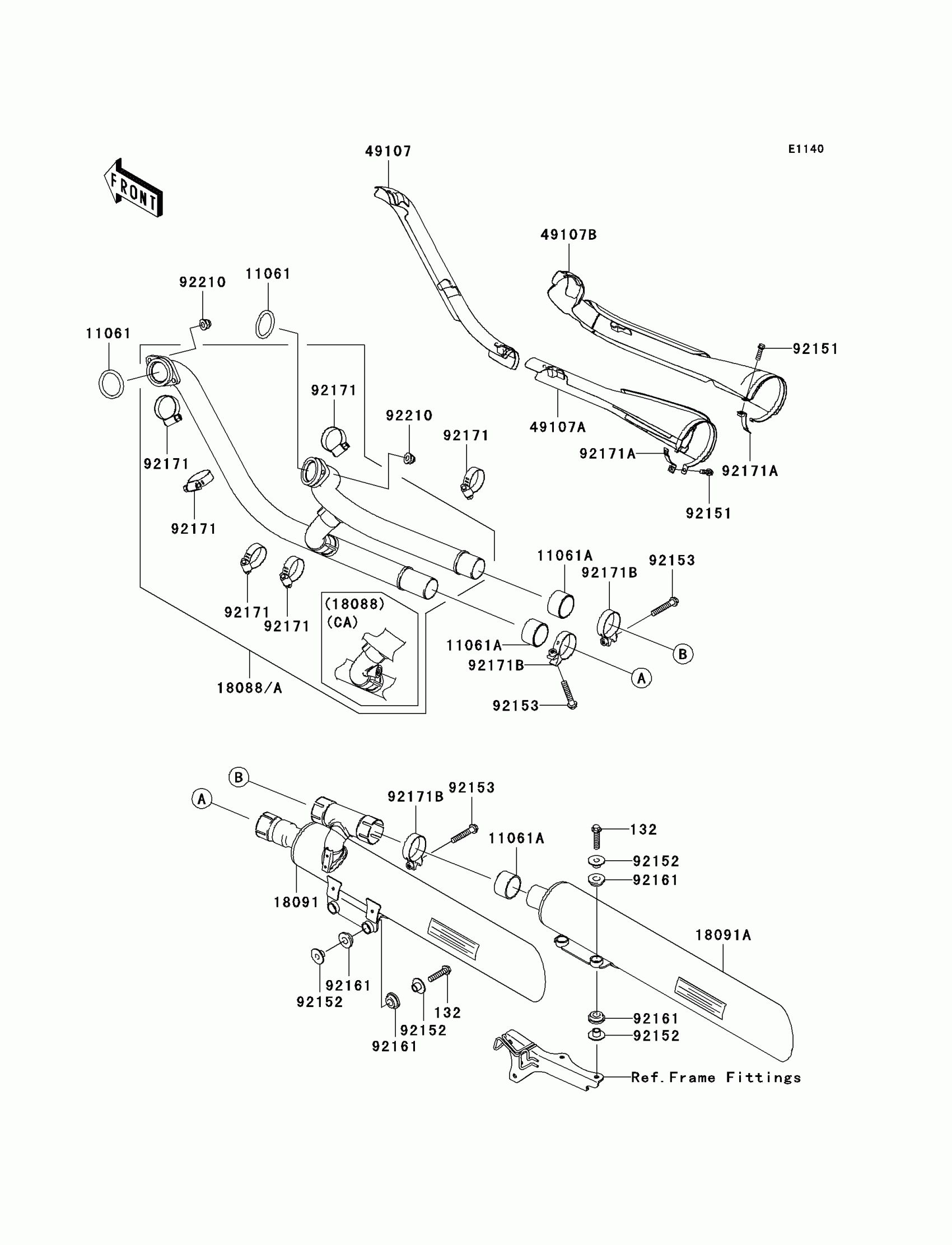

Kawasaki Vulcan 2000 Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X35

132L0835

Unavailable

11061

GASKET,EXHAUST PIPE

11061-0013

$11.73

11061A

GASKET,MUFFLER CONNECTING

11061-0023

$37.26

18091

BODY-COMP-MUFFLER,LWR

18091-0139

$973.72

18091A

BODY-COMP-MUFFLER,UPP

18091-0173

$973.72

49107

COVER-EXHAUST PIPE,FR,FR

49107-0005

$239.19

49107A

COVER-EXHAUST PIPE,FR,RR

49107-0033

$444.23

49107B

COVER-EXHAUST PIPE,RR

49107-0048

$425.82

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92152

COLLAR,8.8X12X10.6

92152-0082

$8.81

92153

BOLT,8X45

92153-0702

$2.76

92161

DAMPER

92161-0135

$2.38

92171

CLAMP

92171-0072

$9.42

92171A

CLAMP

92171-0294

$14.76

92171B

CLAMP

92171-0358

$25.08

92210

NUT,CAP,8MM

92210-1132

$3.19

18088

PIPE-EXHAUST

18088-0132

$956.60

18088A

PIPE-EXHAUST

18088-0133

$859.11
