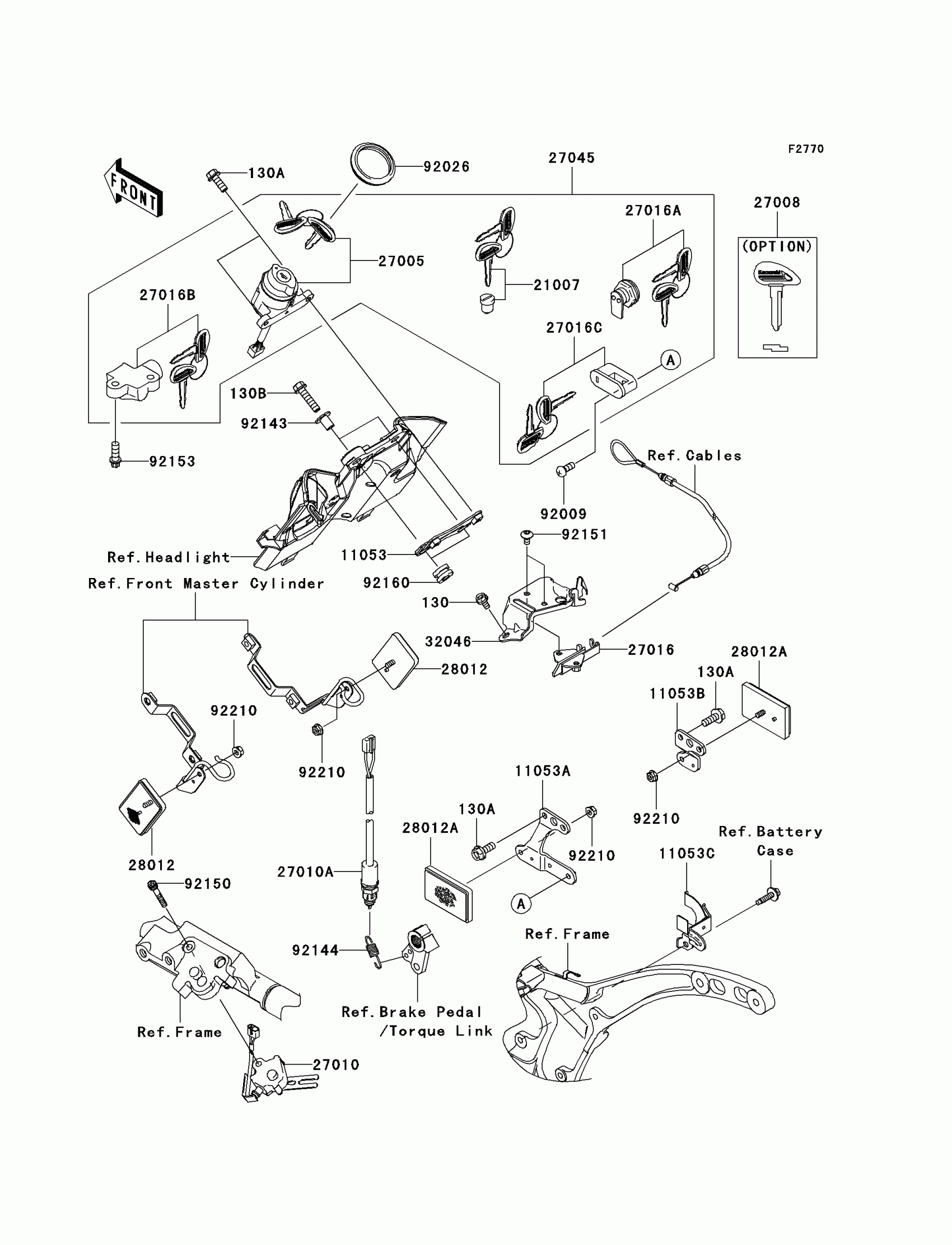

Kawasaki Vulcan 2000 Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130L0612

Unavailable

130A

BOLT-FLANGED,6X16

130L0616

Unavailable

130B

BOLT-FLANGED,6X25

130L0625

Unavailable

11053

BRACKET,IGNITION SWITCH

11053-0218

$14.71

11053A

BRACKET,REFLECTOR,RR,LH

11053-0222

$14.71

11053B

BRACKET,REFLECTOR,RR,RH

11053-0223

$14.71

11053C

BRACKET,SIDE COVER LOCK

11053-0920

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5053

$56.30

27005

SWITCH-ASSY-IGNITION

27005-0004

$204.39

27008

KEY-LOCK,BLANK

27008-1211

$29.23

27010

SWITCH,SIDE STAND

27010-0011

$76.57

27010A

SWITCH,REAR BRAKE

27010-0023

$39.88

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,LID

27016-5279

$74.62

27016B

LOCK-ASSY,STEERING

27016-5298

$113.62

27016C

LOCK-ASSY,HELMET

27016-5311

$69.10

27045

SWITCH-ASSY

27045-5212

$624.29

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012A

REFLECTOR-REFLEX

28012-1088

$20.82

32046

BRACKET-SEAT

32046-0037

$36.73

92009

SCREW,5X12

92009-1296

$3.53

92026

SPACER,IGNITION SWITCH

92026-0018

$8.66

92143

COLLAR,L=15.6

92143-1041

$7.93

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.34

92150

BOLT,SOCKET,6X40

92150-1958

$4.85

92151

BOLT,SOCKET,6X12

92151-1219

$4.81

92153

BOLT,TORX,8X22

92153-1273

$4.59

92160

DAMPER,10X20X12

92160-1167

$3.72

92210

NUT,FLANGED,5MM

92210-0007

$2.20
