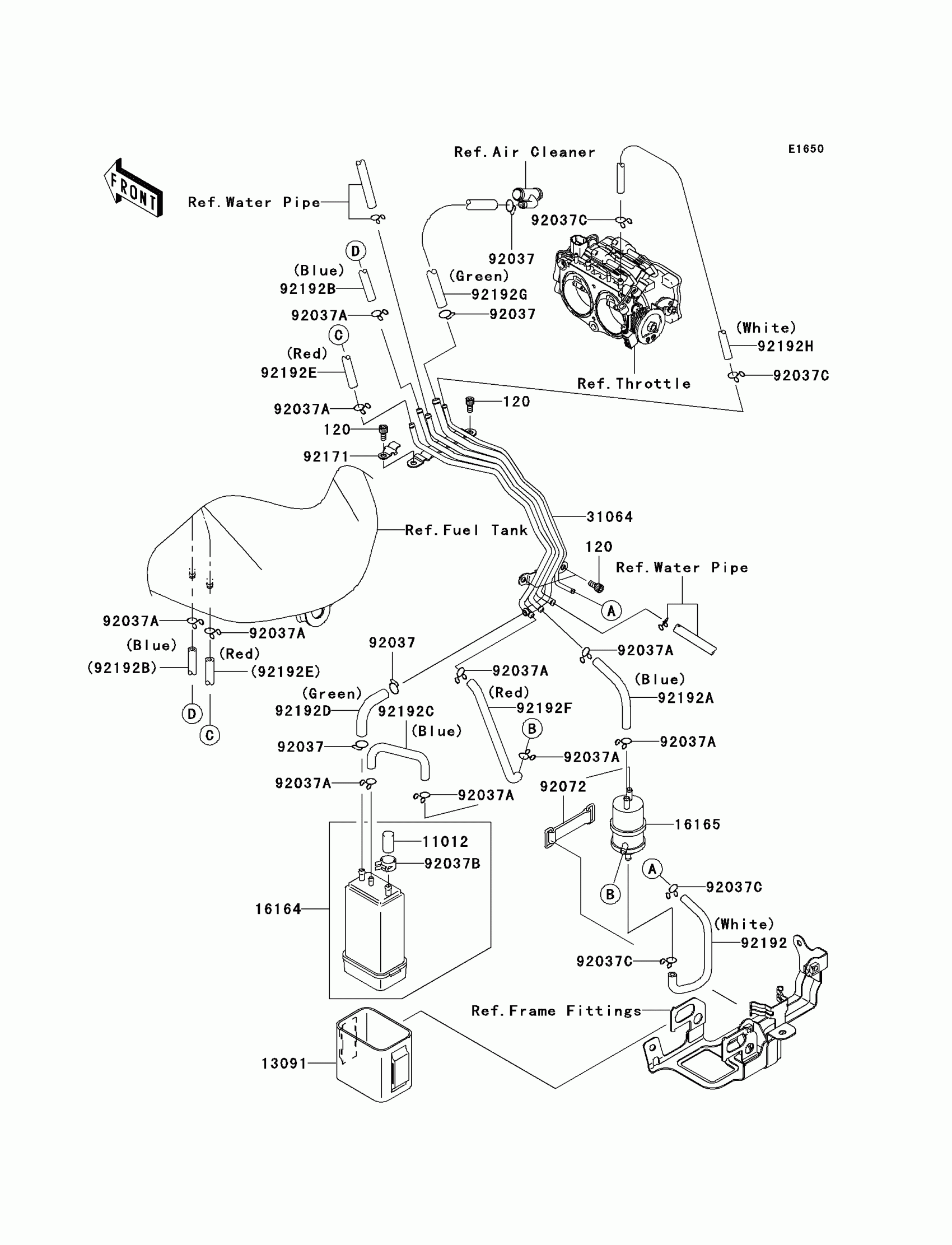

Kawasaki Vulcan 2000 Fuel Evaporative System(CA) Diagram

Description

Price

120

BOLT-SOCKET,6X12

120W0612

Unavailable

11012

CAP,CANISTER

11012-1388

$8.31

13091

HOLDER,CANISTER

13091-1308

$39.18

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

31064

PIPE-COMP

31064-0010

$230.54

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.97

92072

BAND,L=50

92072-1419

$12.72

92171

CLAMP

92171-0209

$8.29

92192

TUBE,SEPARATOR-PIPE,WHITE

92192-0013

$14.58

92192A

TUBE,SEPARATOR-PIPE,BLUE

92192-0014

$12.97

92192B

TUBE,BLUE

92192-0037

$13.22

92192C

TUBE,CANISTER-SEPARATOR,BLUE

92192-0061

$5.56

92192D

TUBE,CANISTER-PIPE,GREEN

92192-0107

$8.58

92192E

TUBE,TANK-PIPE,RED

92192-0112

$8.71

92192F

TUBE,SEPARATOR-PIPE,RED

92192-0113

$11.24

92192G

TUBE,7X12X430,GREEN

92192-0114

$12.97

92192H

TUBE,4X9X510,WHITE

92192-0121

$15.92
