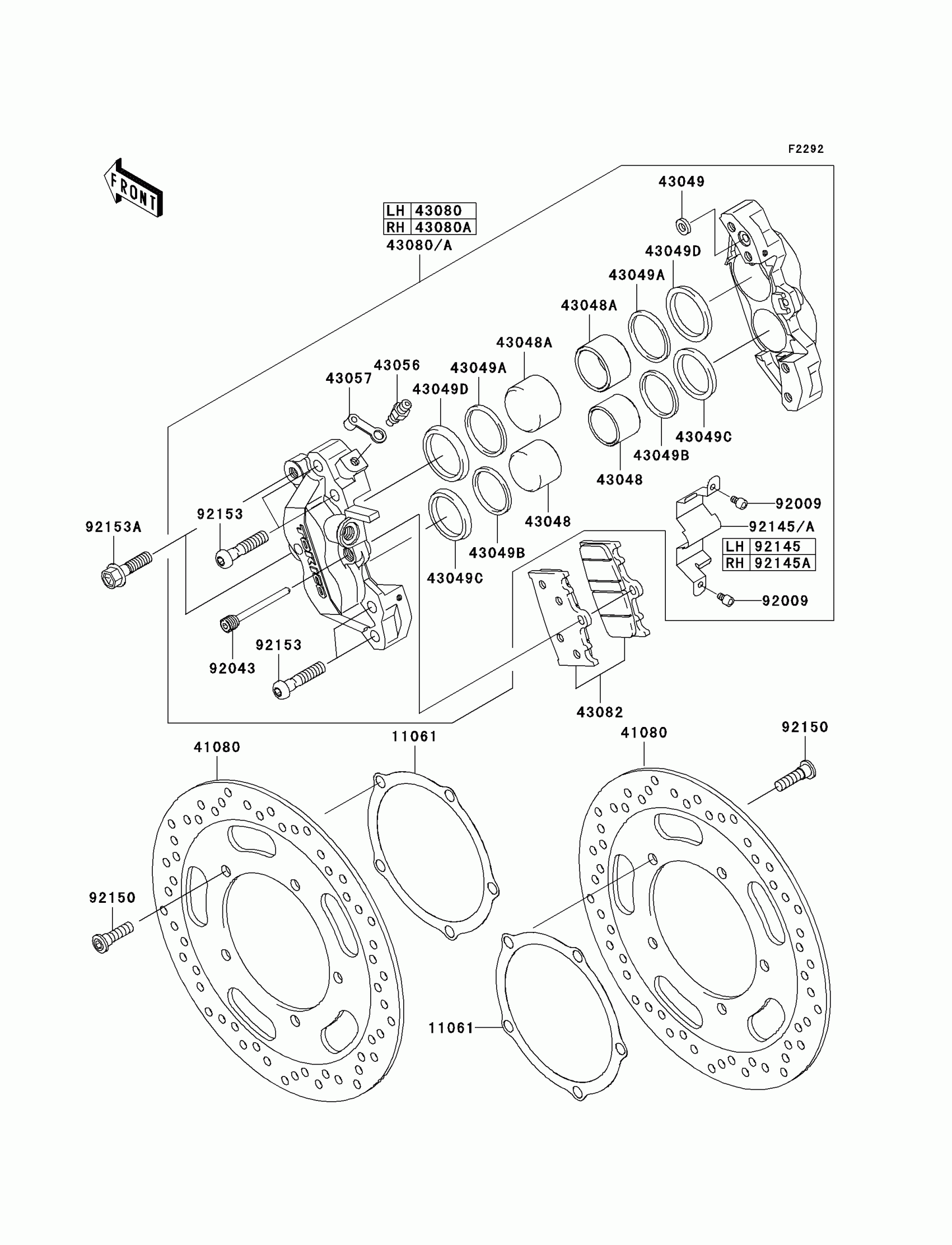

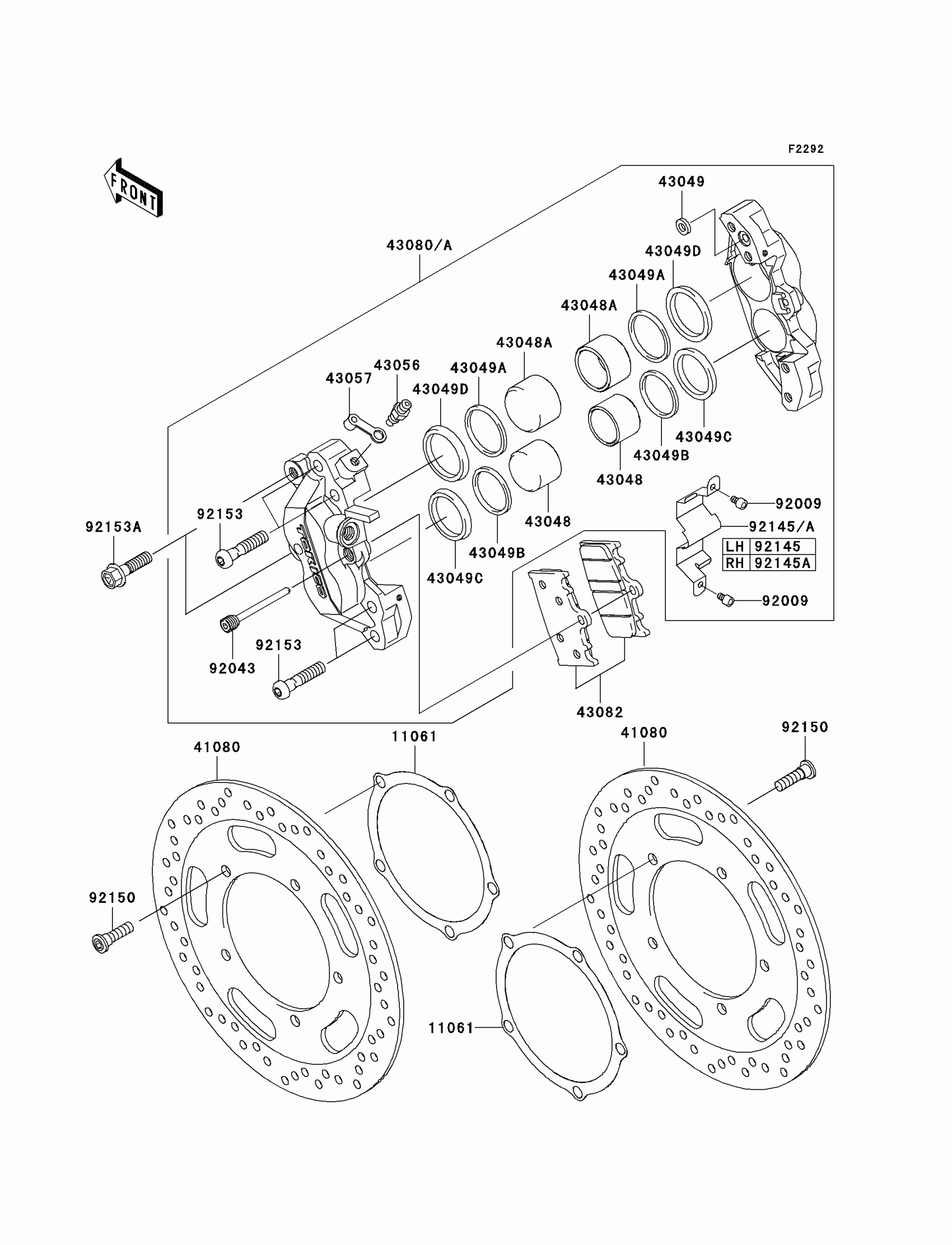

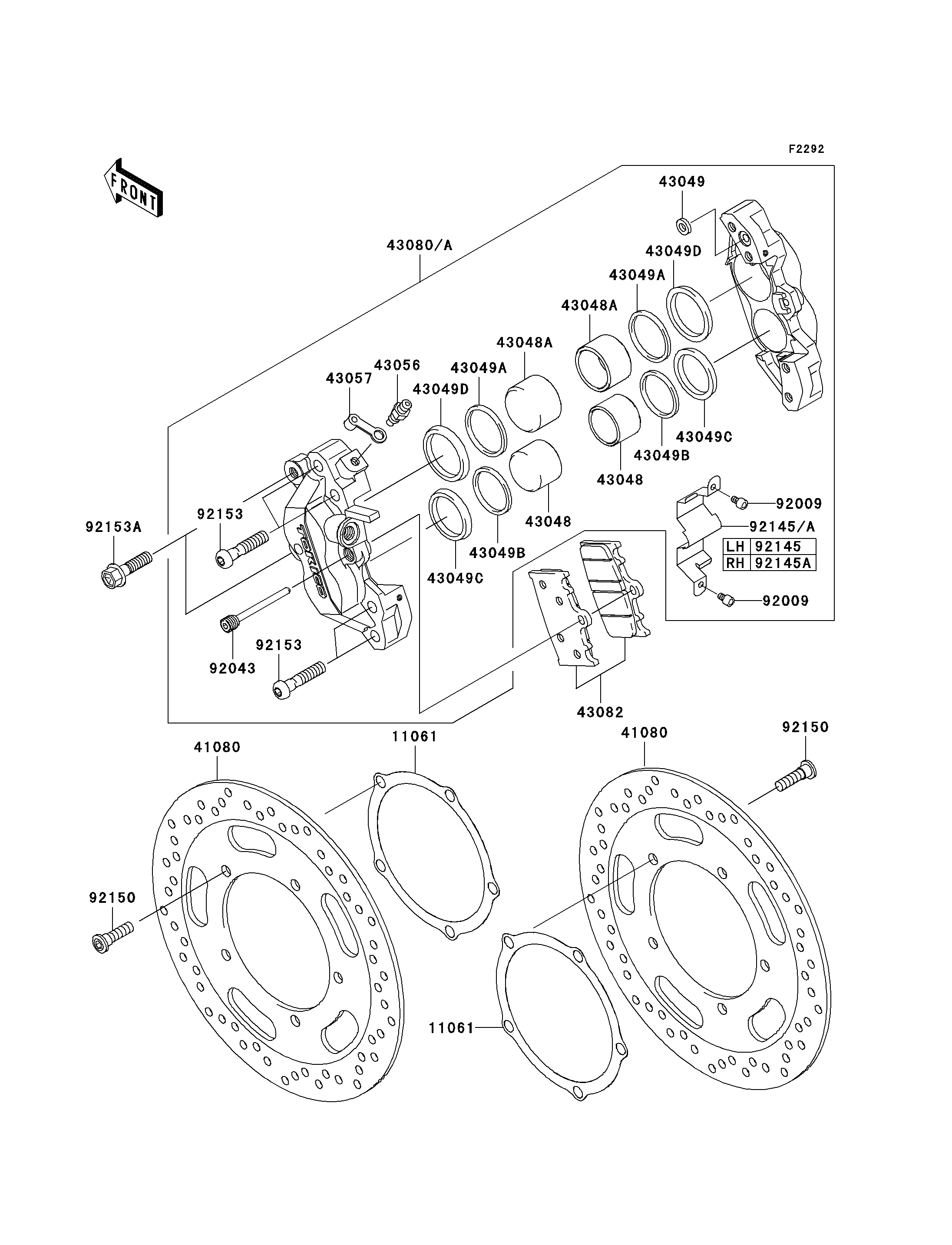

Kawasaki Vulcan 2000 Front Brake Diagram

#

Description

Price

11061

GASKET,DISC PLATE

11061-0103

Unavailable

41080

DISC,FR,SILVER

41080-1530-CM

Unavailable

43048

PISTON-CALIPER,DIA=30.2

43048-1098

Unavailable

43048A

PISTON-CALIPER,DIA=33.934

43048-1099

Unavailable

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

Unavailable

43049A

PACKING,PISTON

43049-1057

Unavailable

43049B

PACKING

43049-1068

Unavailable

43049C

PACKING,PISTON SEAL

43049-1092

Unavailable

43049D

PACKING,PISTON SEAL

43049-1095

Unavailable

43056

BREATHER-BRAKE

43056-1054

Unavailable

43057

CAP-BREATHER

43057-003

Unavailable

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0009-GN

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-0010-GN

Unavailable

43082

PAD-ASSY-BRAKE

43082-0016

Unavailable

92009

BOLT,SOCKET,4X6

92009-1758

Unavailable

92043

PIN,PAD

92043-1683

Unavailable

92145

SPRING,COVER,LH

92145-1503

Unavailable

92145A

SPRING,COVER,RH

92145-1504

Unavailable

92150

BOLT,SOCKET,8X30

92150-1771

Unavailable

92153

BOLT,SOCKET,8X40

92153-0360

Unavailable

92153A

BOLT,FLANGED,8X30

92153-1089

Unavailable
