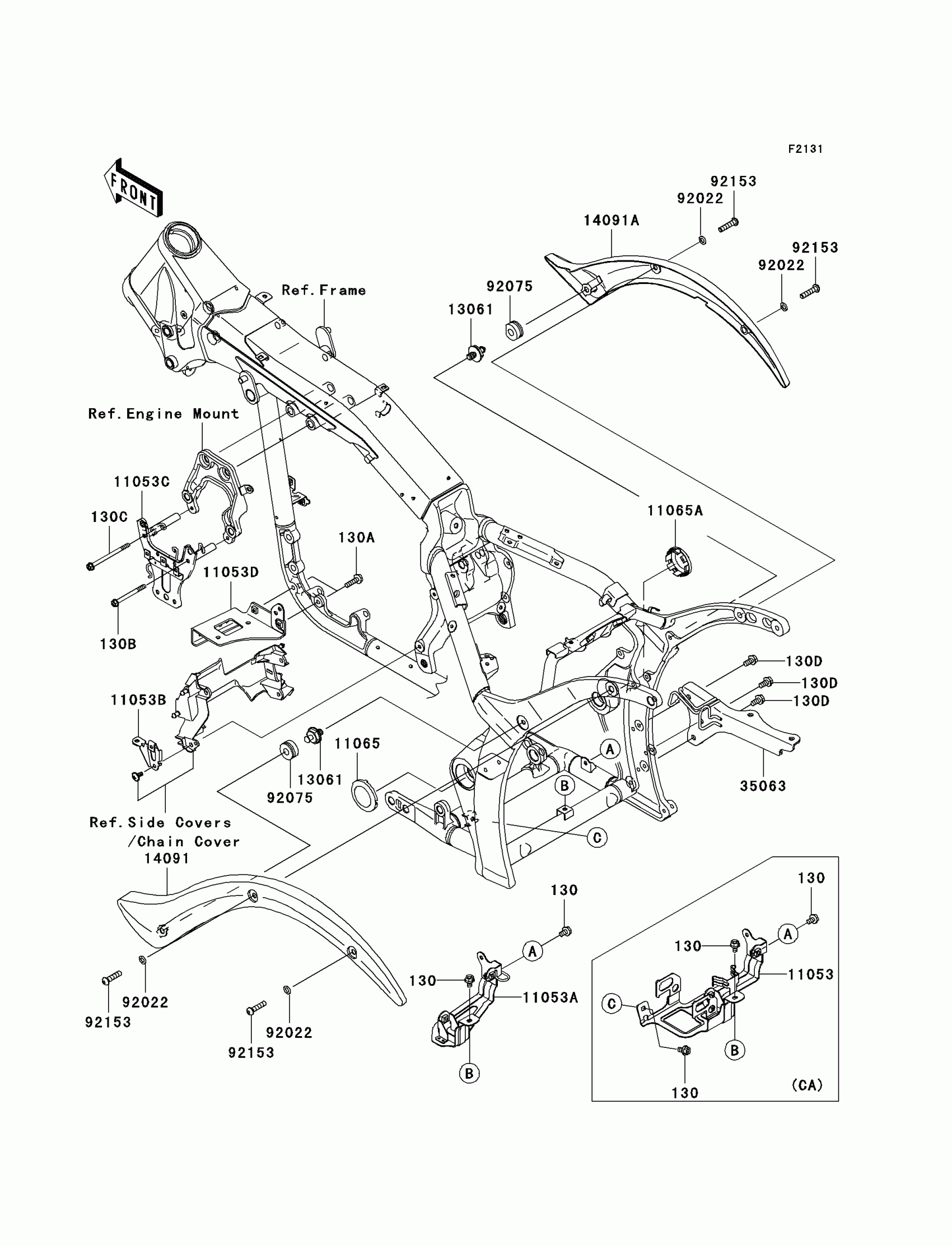

Kawasaki Vulcan 2000 Frame Fittings Diagram

Description

Price

130A

BOLT-FLANGED,6X22

130L0622

Unavailable

130B

BOLT-FLANGED,6X70

130L0670

Unavailable

130C

BOLT-FLANGED,6X90

130L0690

Unavailable

130D

BOLT-FLANGED,8X16

130L0816

Unavailable

11053B

BRACKET,FUSE&SENSOR

11053-0494

$13.10

11053C

BRACKET,IGNITION COIL

11053-1254

$102.39

11053D

BRACKET,REGULATOR

11053-1625

$33.35

11065

CAP,PIVOT,LH

11065-0052

$23.16

11065A

CAP,PIVOT,RH

11065-0053

$23.16

13061

BOSS

13061-0060

$23.16

14091

COVER,FENDER,LH

14091-0253

$215.75

14091A

COVER,FENDER,RH

14091-0255

$219.02

35063

STAY,MUFFLER

35063-0048

Unavailable

92022

WASHER,PLAIN,8MM

92022-3043

$2.91

92075

DAMPER

92075-1986

$4.73

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

130

BOLT-FLANGED,6X10

130L0610

Unavailable

130

BOLT-FLANGED,6X10

130L0610

Unavailable

11053

BRACKET,RESERVOIR

11053-0312

$76.21

11053A

BRACKET,RESERVOIR

11053-0350

$56.97
