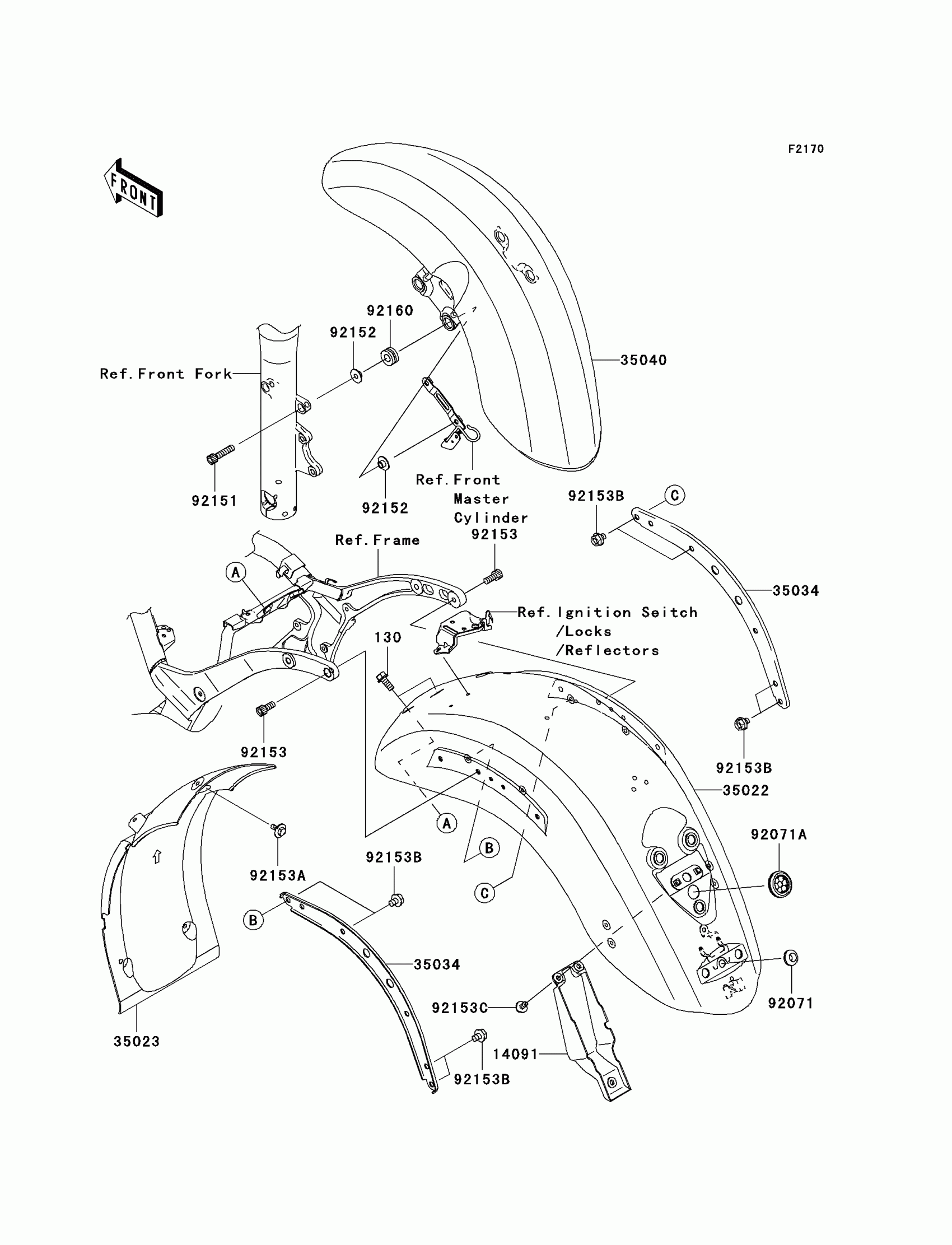

Kawasaki Vulcan 2000 Fenders Diagram

Description

Price

130

BOLT-FLANGED,8X16

130L0816

Unavailable

14091

COVER,REAR FENDER

14091-0070

$18.02

35022

FENDER-COMP-REAR,RED/EBONY

35022-0021-776

$1,708.02

35023

FENDER-REAR,INNER

35023-0033

$67.68

35034

REINFORCE,RR FENDER

35034-0049

$77.67

35040

FENDER-COMP-FRONT,RED/EBONY

35040-0008-776

$1,468.76

92071

GROMMET,10MM

92071-019

$3.10

92071A

GROMMET

92071-1265

$4.12

92151

BOLT,SOCKET,8X35

92151-1535

$2.16

92152

COLLAR

92152-0249

$5.51

92153

BOLT,SOCKET,8X18

92153-0672

$3.59

92153A

BOLT,6X16

92153-0698

$4.42

92153B

BOLT,FLANGED,8X10

92153-0724

$3.95

92153C

BOLT,SOCKET,6X14

92153-0729

$2.75

92160

DAMPER

92160-1007

$4.37
