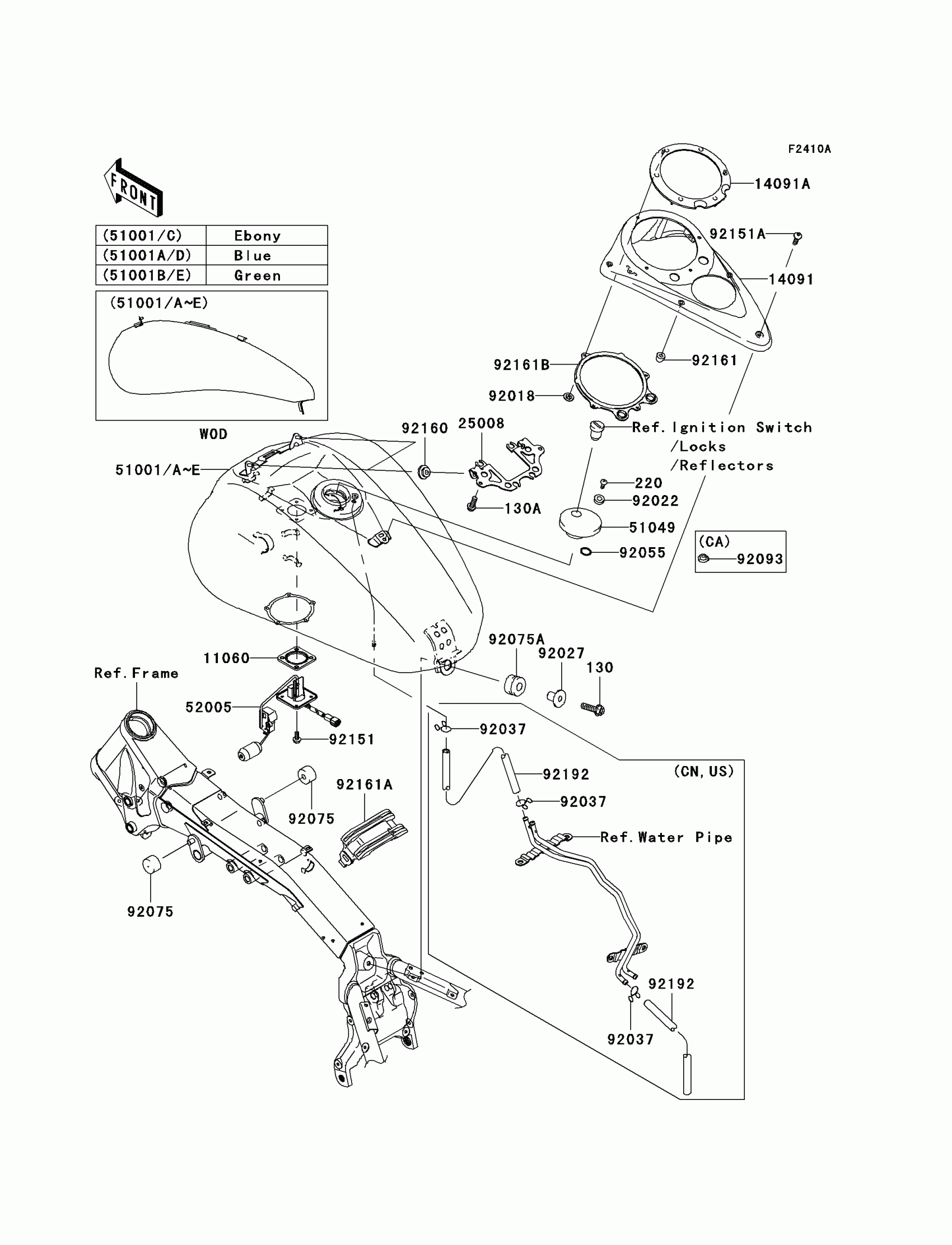

Kawasaki Vulcan 2000 Fuel Tank(A2) Diagram

#

Description
Price

130

BOLT-FLANGED,8X30

130H0830

Unavailable

130A

BOLT-FLANGED,6X16

130L0616

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

11060

GASKET,FUEL GAUGE

11060-1952

$19.64

14091

COVER,METER,LWR

14091-0187

$866.62

14091A

COVER,METER,UPP

14091-0284

$51.88

25008

BRACKET-METER

25008-0001

$25.68

51049

CAP-TANK,FUEL

51049-0003

$107.25

52005

GAUGE,FUEL

52005-0002

$208.50

92018

NUT,PUSH,3MM

92018-005

$2.25

92022

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,L=19.3

92027-1780

$5.21

92055

RING-O,ID=9

92055-1552

$2.80

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER

92075-1736

$5.21

92151

BOLT,5X12

92151-1599

$1.28

92151A

BOLT,SOCKET,6X12

92151-1940

$2.97

92160

DAMPER

92160-1613

$2.97

92161

DAMPER,METER COVER

92161-0040

$3.59

92161A

DAMPER,FUEL TANK,CNT

92161-0042

$20.10

92161B

DAMPER,METER

92161-0173

$20.10

51001

TANK-COMP-FUEL,EBONY

51001-0064-H8

$1,442.11

51001A

TANK-COMP-FUEL,M.O.BLUE

51001-0064-726

$1,111.46

51001B

TANK-COMP-FUEL,M.D.GREEN

51001-0064-727

$1,509.22

51001C

TANK-COMP-FUEL,EBONY

51001-0065-H8

$1,556.00

51001D

TANK-COMP-FUEL,M.O.BLUE

51001-0065-726

$1,442.11

51001E

TANK-COMP-FUEL,M.D.GREEN

51001-0065-727

Unavailable

92037

CLAMP,TUBE

92037-147

$5.84

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92192

TUBE,BLUE

92192-0037

$13.22
