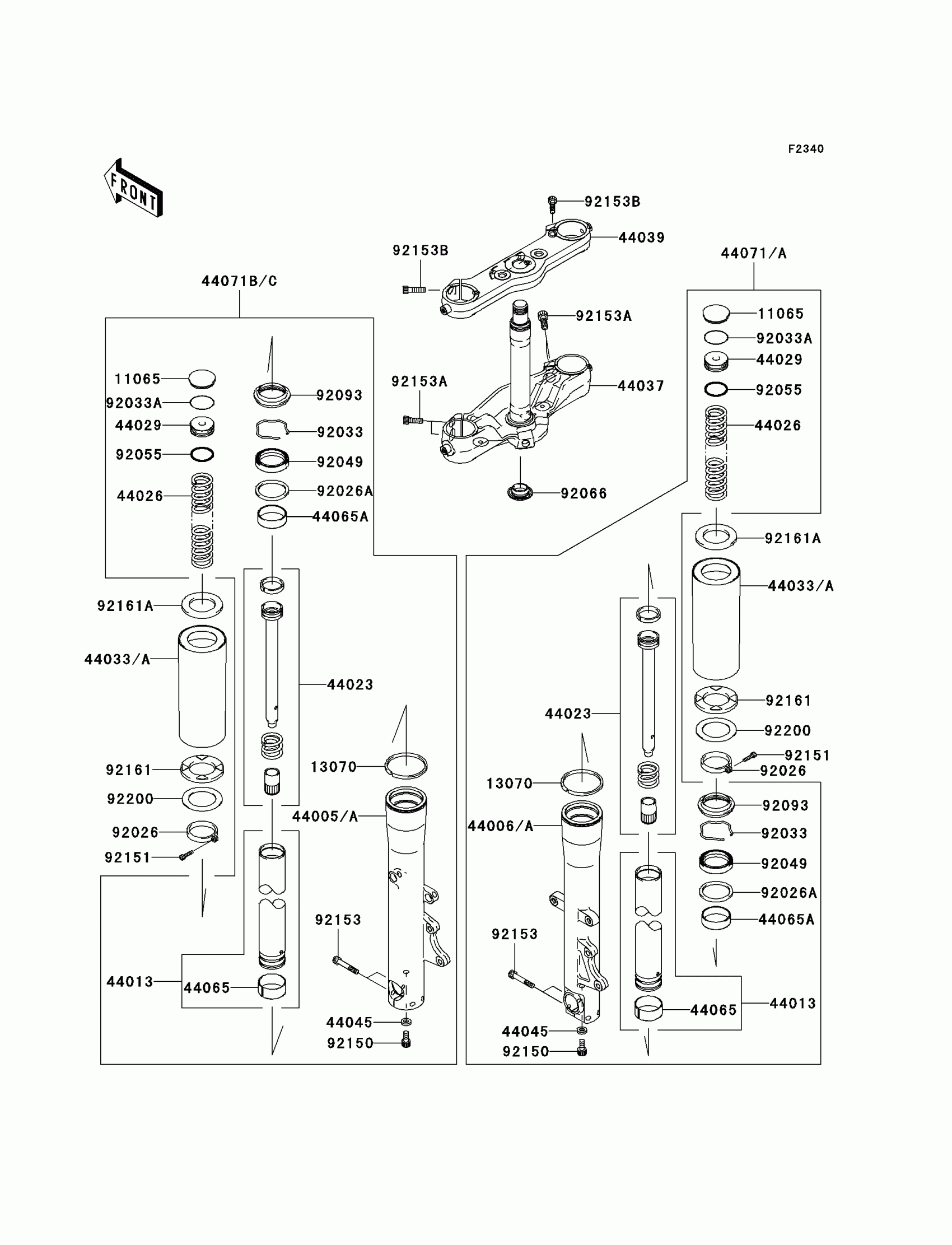

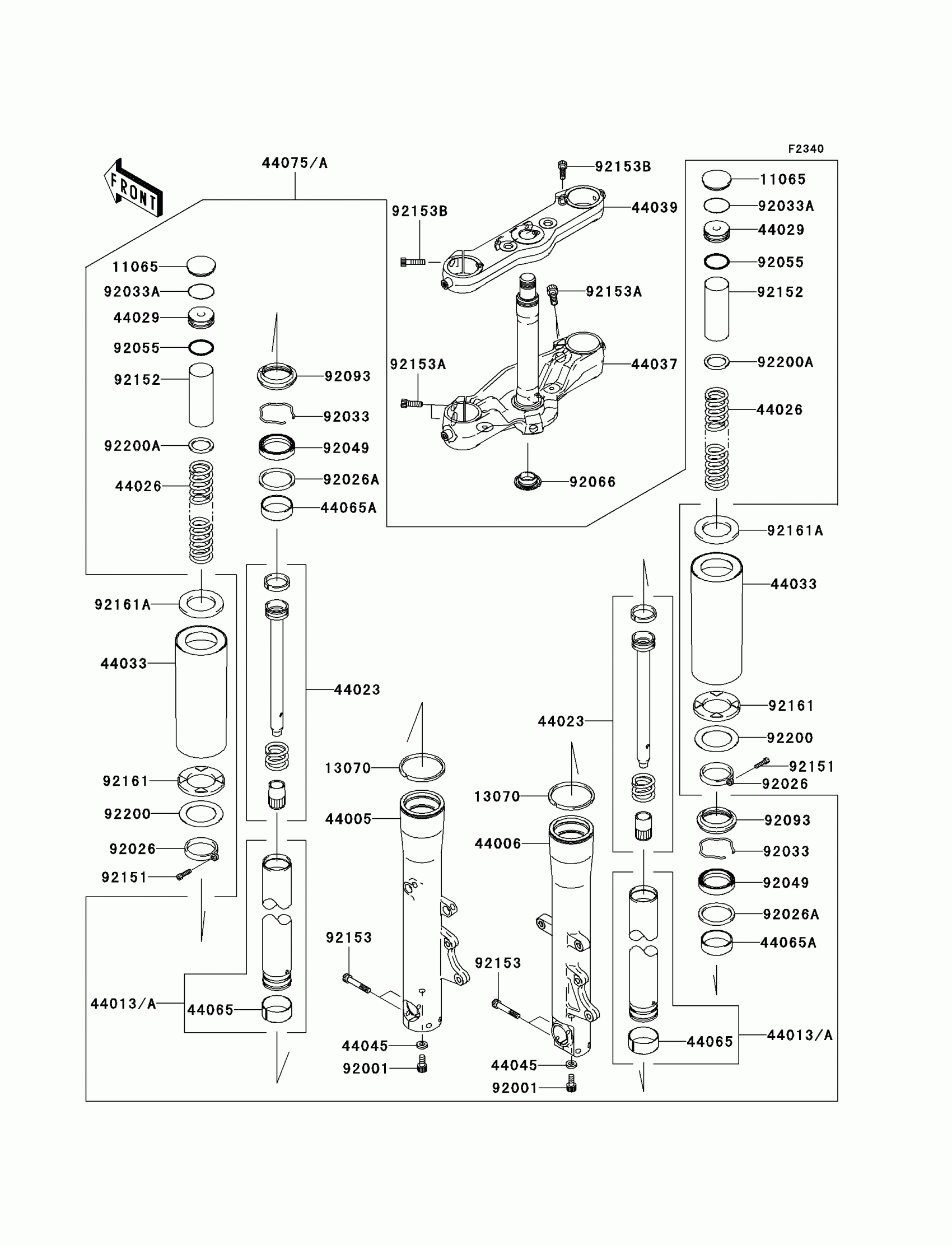

Kawasaki Vulcan 2000 Front Fork Diagram

#

Description
Price

11065

CAP

11065-0034

$12.95

13070

GUIDE,CASE

13070-0017

$3.92

44005

PIPE-LEFT FORK OUTER

44005-0008

$555.59

44006

PIPE-RIGHT FORK OUTER

44006-0009

$582.13

44013A

PIPE-FORK INNER

44013-0027

$474.56

44023

CYLINDER-SET-FORK

44023-0007

$154.39

44026

SPRING-FRONT FORK

44026-0038

$89.57

44029

SEAT-FORK SPRING

44029-0002

$61.52

44033

COVER-FORK

44033-0019

$131.86

44037

HOLDER-FORK UNDER

44037-0001

$586.42

44039

HOLDER-FORK UPPER

44039-0001

$438.67

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0012

$25.08

44065A

BUSHING-FRONT FORK

44065-0013

$23.97

44075A

DAMPER-SET-FORK

44075-0058

$1,700.12

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92026

SPACER

92026-0050

$11.44

92026A

SPACER

92026-0054

$20.10

92033

RING-SNAP

92033-0026

$8.24

92033A

RING-SNAP

92033-0027

$8.59

92049

SEAL-OIL

92049-0044

$29.79

92055

RING-O

92055-0055

$3.78

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-0023

$25.44

92151

BOLT,SOCKET,4X16

92151-1356

$2.03

92152

COLLAR

92152-0094

$33.67

92153

BOLT

92153-0499

$9.22

92153A

BOLT,SOCKET

92153-0711

$3.95

92153B

BOLT,SOCKET,8X30

92153-0712

$3.56

92161

DAMPER

92161-0086

$18.19

92161A

DAMPER

92161-0087

$32.89

92200

WASHER

92200-0132

$8.66

92200A

WASHER

92200-0145

$4.78
