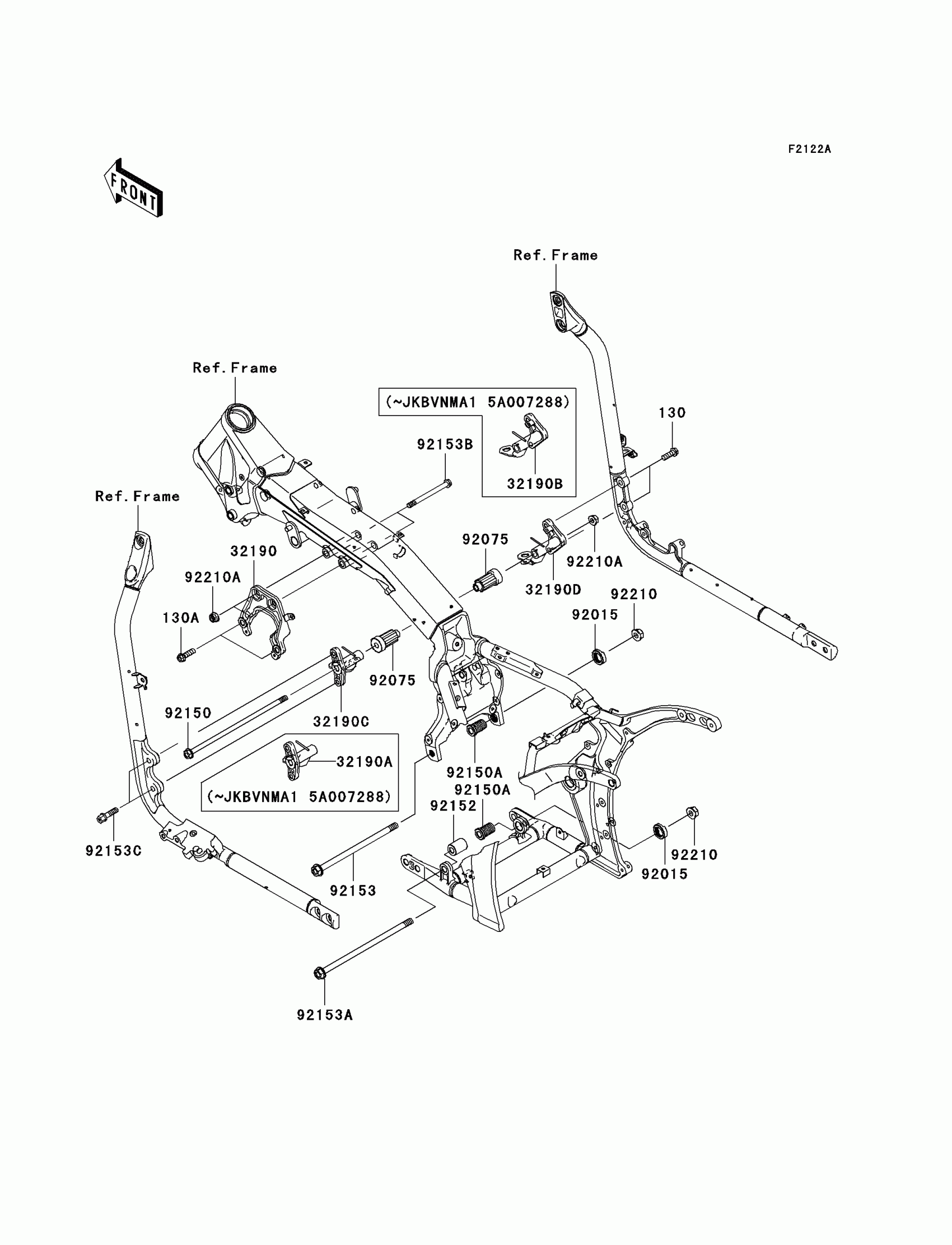

Kawasaki Vulcan 2000 Engine Mount(A2) Diagram

Description

Price

130

BOLT-FLANGED,10X30

130L1030

Unavailable

130A

BOLT-FLANGED,10X35

130L1035

Unavailable

32190

BRACKET-ENGINE,UPP

32190-0054

$99.59

32190A

BRACKET-ENGINE,FR,LH

32190-0161

$89.68

32190B

BRACKET-ENGINE,FR,RH

32190-0162

$89.68

32190C

BRACKET-ENGINE,FR,LH

32190-0164

$85.61

32190D

BRACKET-ENGINE,FR,RH

32190-0165

Unavailable

92015

NUT,ENGINE MOUNT,22MM

92015-1846

$20.18

92075

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$29.30

92150

BOLT,FLANGED,10X295

92150-1223

$16.51

92150A

BOLT,ENGINE MOUNT,22X38

92150-1471

$38.86

92152

COLLAR,12.5X26X35.5

92152-0056

$34.73

92153

BOLT,FLANGED,12X237

92153-0390

$39.51

92153A

BOLT,FLANGED,12X275

92153-0391

$41.24

92153B

BOLT,FLANGED,10X117

92153-0664

$20.10

92153C

BOLT,10X40

92153-0891

$2.68

92210

NUT,LOCK,FLANGED,12MM

92210-0110

Unavailable

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

$9.78
