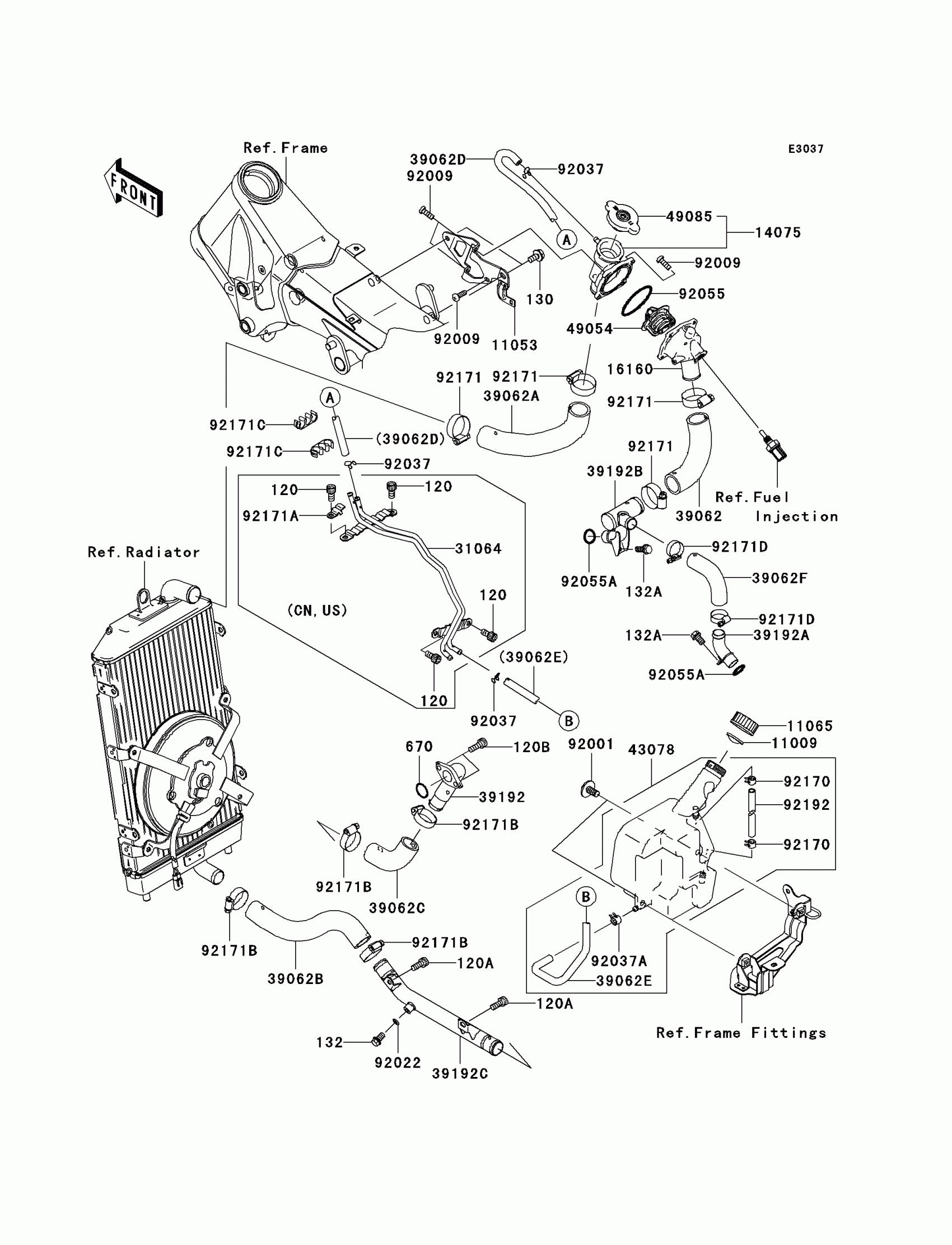

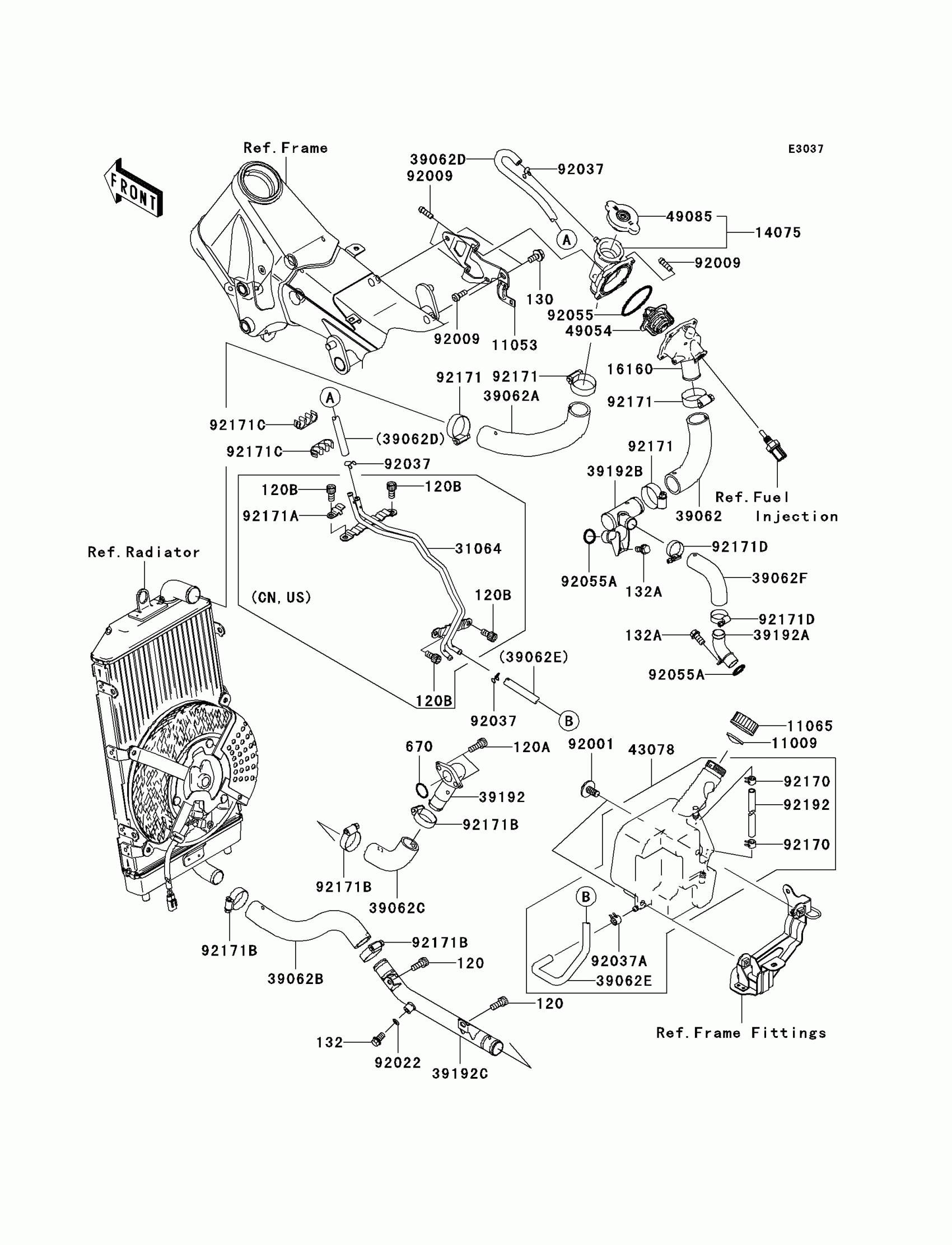

Kawasaki Vulcan 2000 Water Pipe Diagram

#

Description
Price

120

BOLT-SOCKET,6X14

120R0614

$3.31

120A

BOLT-SOCKET,6X16

120R0616

$2.76

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11053

BRACKET,THERMOSTAT

11053-0733

$20.88

11065

CAP

11065-0063

$3.76

14075

CAP-ASSY

14075-0001

$145.52

16160

BODY,THERMOSTAT

16160-0095

$66.77

39062

HOSE-COOLING,THERMO-PIPE

39062-0004

Unavailable

39062A

HOSE-COOLING,THERMO-RADIATOR

39062-0005

$21.66

39062B

HOSE-COOLING,RADIATOR-PIPE

39062-0008

$21.66

39062C

HOSE-COOLING,PIPE-WATER PUMP

39062-0009

$10.54

39062D

HOSE-COOLING,L=797

39062-0047

$13.93

39062E

HOSE-COOLING,RESERVOIR-PIPE

39062-0062

$11.22

39062F

HOSE-COOLING,RR HEAD-PIPE

39062-0064

$11.22

39192

PIPE-WATER

39192-0001

$47.13

39192A

PIPE-WATER,RR HEAD

39192-0007

$32.59

39192B

PIPE-WATER,FR HEAD

39192-0008

$66.49

39192C

PIPE-WATER,RADIATOR-W/P

39192-0009

$66.49

43078

RESERVOIR

43078-0020

$83.67

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

92001

BOLT,6X16

92001-1950

$3.29

92009

SCREW,5X14

92009-1341

$3.75

92022

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-1505

$3.63

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,16.8X2.4

92055-1258

$3.74

92170

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-0179

$6.25

92171B

CLAMP

92171-0261

$12.75

92171C

CLAMP

92171-0334

$4.42

92171D

CLAMP

92171-0338

$6.37

92192

TUBE,7X10X120

92192-0010

$4.58

130

BOLT-FLANGED,6X12

130L0612

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132L0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132L0612

Unavailable

670

O RING,20MM

670B2020

$0.97

120B

BOLT-SOCKET,6X12

120W0612

Unavailable

31064

PIPE-COMP

31064-0011

$142.98

92171A

CLAMP

92171-0209

$8.29
