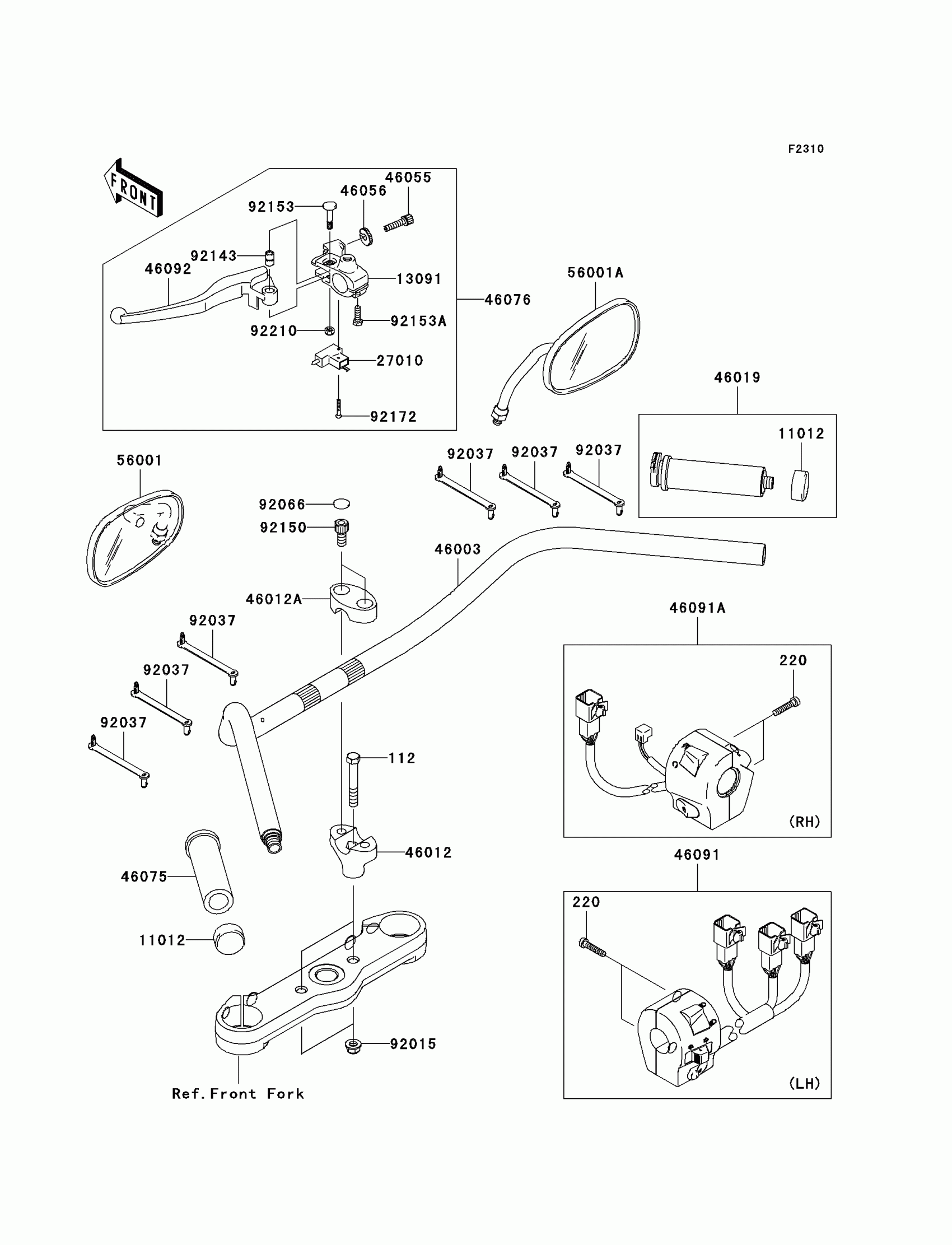

Kawasaki Vulcan 2000 Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,10X65

112H1065

Unavailable

220

SCREW-PAN-CROS,5X25

220R0525

$4.23

11012

CAP,GRIP END

11012-1975

$16.55

13091

HOLDER,CLUTCH LEVER

13091-1632

$44.47

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003

HANDLE

46003-0091

$224.83

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$52.72

46019

GRIP-ASSY,THROTTLE

46019-1109

$62.08

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1074

$19.86

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0010

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-0075

$341.05

46091A

HOUSING-ASSY-CONTROL,RH

46091-0076

$257.77

46092

LEVER-GRIP,CLUCTH

46092-1204

$23.22

56001

MIRROR-ASSY,LH

56001-0032

$67.24

56001A

MIRROR-ASSY,RH

56001-0033

$67.24

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92066

PLUG

92066-1285

$5.93

92143

COLLAR

92143-1351

$16.78

92150

BOLT,SOCKET,10X23

92150-1942

$5.61

92153

BOLT,LEVER SET

92153-0716

$5.08

92153A

BOLT,6X20

92153-0721

$2.78

92172

SCREW,3X20

92172-0164

$2.47

92210

NUT,LOCK,6MM

92210-0006

$1.76
