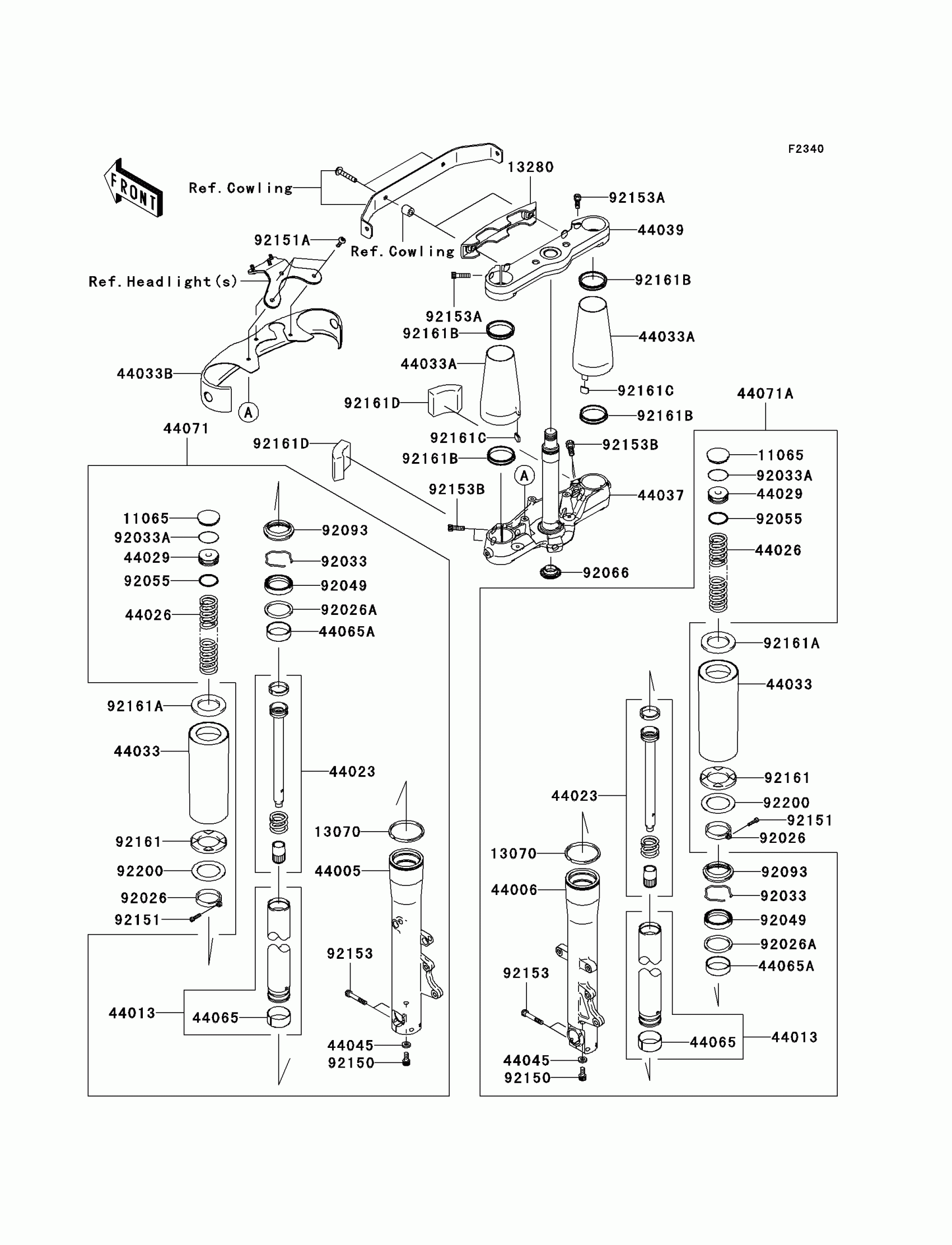

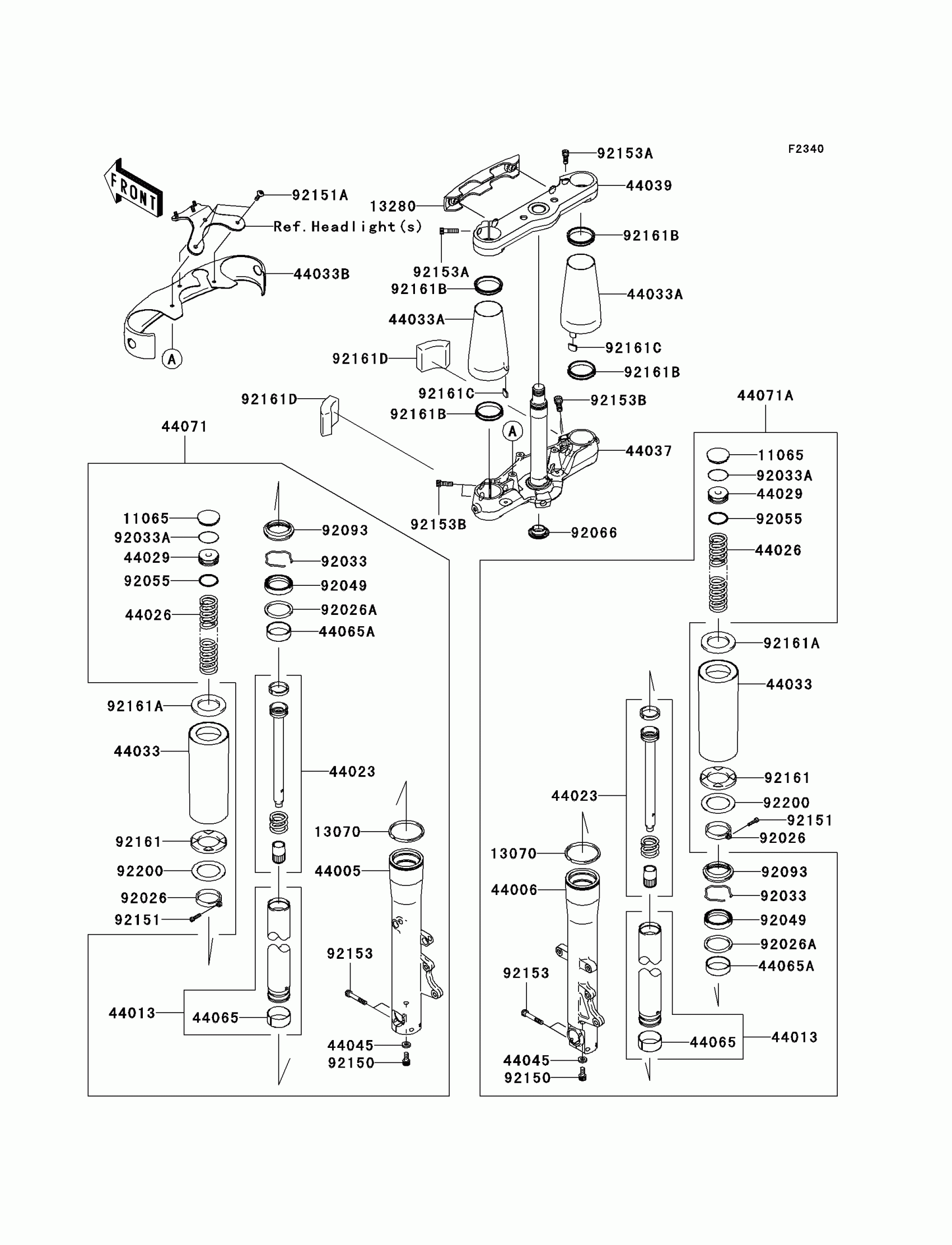

Kawasaki Vulcan 2000 Front Fork Diagram

#

Description
Price

11065

CAP,FORK

11065-0146

$13.64

13070

GUIDE,CASE

13070-0017

$3.92

13280

HOLDER,UPPER BRACKET

13280-0167

$38.54

44005

PIPE-LEFT FORK OUTER

44005-0008

$555.59

44006

PIPE-RIGHT FORK OUTER

44006-0009

$582.13

44013

PIPE-FORK INNER

44013-0027

$474.56

44023

CYLINDER-SET-FORK

44023-0007

$154.39

44026

SPRING-FRONT FORK

44026-0073

$109.00

44029

SEAT-FORK SPRING

44029-0002

$61.52

44033

COVER-FORK

44033-0019

$131.86

44033A

COVER-FORK

44033-0041

$130.59

44033B

COVER-FORK

44033-0045

$109.57

44037

HOLDER-FORK UNDER

44037-0044

$559.67

44039

HOLDER-FORK UPPER

44039-0042

$431.46

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0012

$25.08

44065A

BUSHING-FRONT FORK

44065-0013

$23.97

44071

DAMPER-ASSY,FORK,LH

44071-0325

$1,249.08

44071A

DAMPER-ASSY,FORK,RH

44071-0326

$1,249.08

92026

SPACER

92026-0050

$11.44

92026A

SPACER

92026-0054

$20.10

92033

RING-SNAP

92033-0026

$8.24

92033A

RING-SNAP

92033-0027

$8.59

92049

SEAL-OIL

92049-0044

$29.79

92055

RING-O

92055-0055

$3.78

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-0023

$25.44

92150

BOLT,SOCKET,8X18

92150-1432

$7.54

92151

BOLT,SOCKET,4X16

92151-1356

$2.03

92151A

BOLT,SOCKET,6X25

92151-1945

$4.59

92153

BOLT

92153-0499

$9.22

92153A

BOLT,SOCKET,8X30

92153-0500

$10.44

92153B

BOLT,SOCKET

92153-0711

$3.95

92161

DAMPER

92161-0086

$18.19

92161A

DAMPER

92161-0087

$32.89

92161B

DAMPER,FORK COVER

92161-0323

$12.71

92161C

DAMPER

92161-0383

$3.56

92161D

DAMPER

92161-0389

$5.92

92200

WASHER

92200-0132

$8.66
