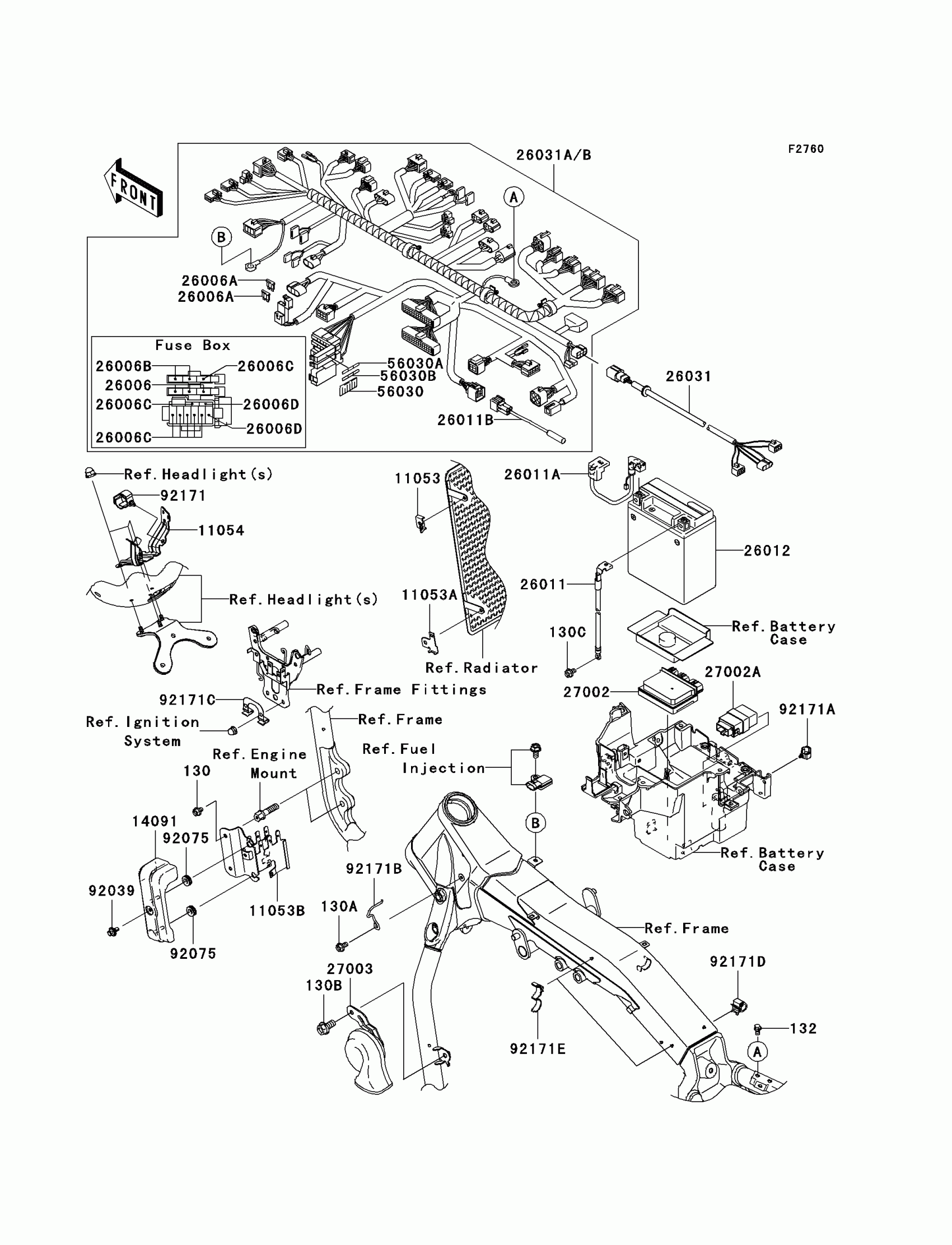

Kawasaki Vulcan 2000 Chassis Electrical Equipment Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130J0608

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,8X16

130L0816

Unavailable

130C

BOLT-FLANGED,6X10

130V0610

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132L0610

Unavailable

11053

BRACKET,RADIATOR,UPP

11053-0528

$4.42

11053A

BRACKET,RADIATOR,LWR

11053-1624

$4.34

11053B

BRACKET,COUPLER

11053-1655

$37.80

11054

BRACKET,HEAD LAMP BODY

11054-0098

$102.01

14091

COVER,ACG COUPLER

14091-0417

$12.63

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$3.50

26006D

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.87

26011

WIRE-LEAD,BATTERY(-)

26011-0013

$65.69

26011A

WIRE-LEAD,BATTERY(+)

26011-0043

$65.69

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

$15.02

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

$177.03

26031

HARNESS,RR

26031-0167

Unavailable

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

$118.36

27003

HORN

27003-0021

$92.05

56030

LABEL,FUSE BOX

56030-0015

$5.69

56030A

LABEL,FUSE BOX

56030-0017

$5.69

56030B

LABEL,FUSE BOX

56030-0080

$5.61

92039

RIVET

92039-1227

$1.54

92075

DAMPER

92075-1629

$3.97

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.08

92171B

CLAMP,HARNESS

92171-0331

$3.27

92171C

CLAMP,HARNESS

92171-0368

$14.71

92171D

CLAMP,DIA=15

92171-1424

$3.33

92171E

CLAMP,25MM DIA.

92171-1559

$5.39

26031A

HARNESS,MAIN

26031-0392

$712.68

26031B

HARNESS,MAIN

26031-0393

$712.68
