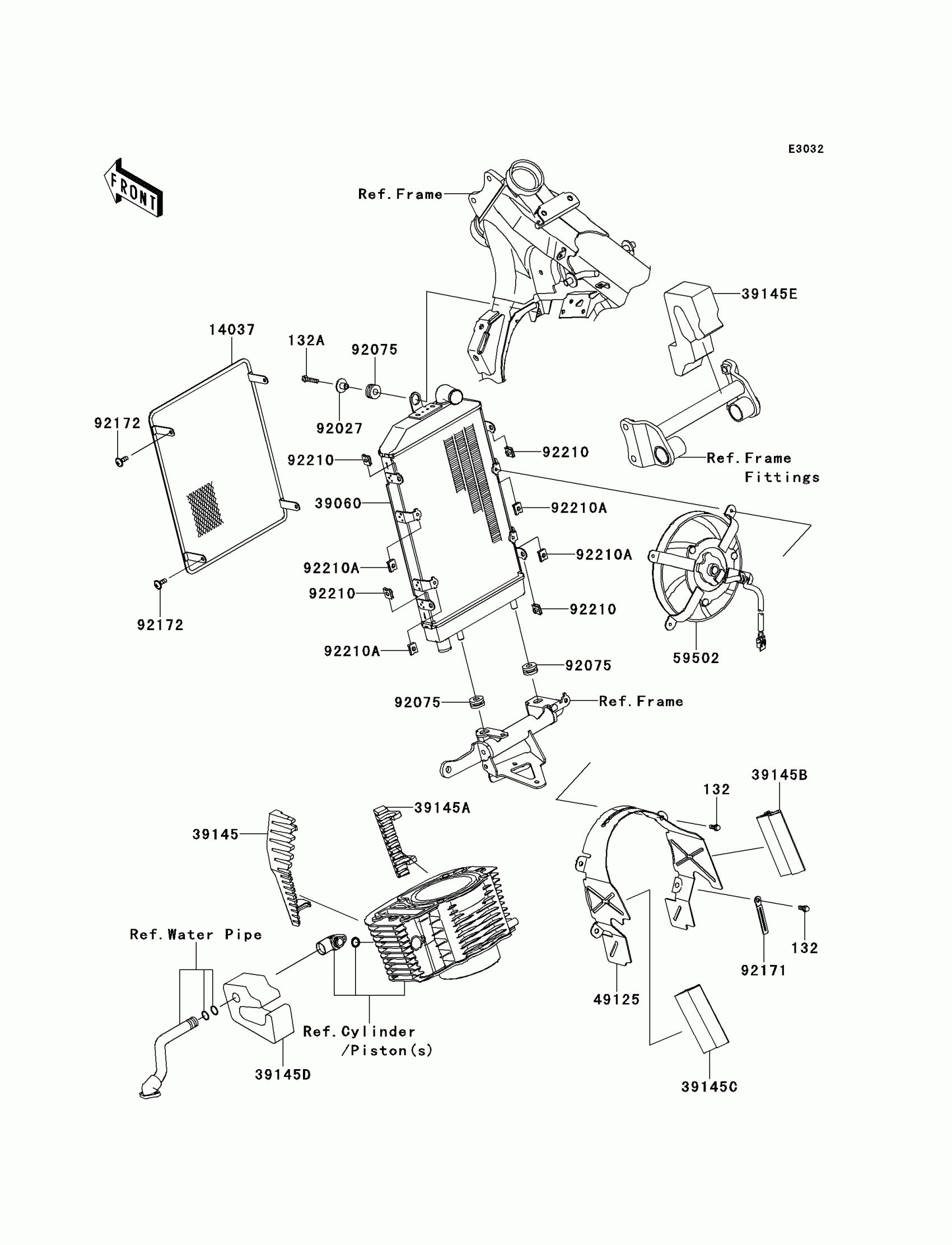

Kawasaki VULCAN® 1700 VOYAGER® Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

132A

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

14037

SCREEN,INNER

14037-0014

$73.48

39060

RADIATOR

39060-0706

$701.76

39145

TRIM-SEAL,HEAD LH

39145-0704

$54.04

39145A

TRIM-SEAL,HEAD RH

39145-0705

$45.45

39145B

TRIM-SEAL,SHROUD RH

39145-0706

$4.46

39145C

TRIM-SEAL,SHROUD LH

39145-0707

$7.46

39145D

TRIM-SEAL,SHROUD LH,LWR

39145-0708

$10.49

39145E

TRIM-SEAL,SHROUD RH,LWR

39145-0709

$11.76

49125

SHROUD

49125-0567

$67.13

59502

FAN-ASSY

59502-0040

$801.03

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER,10X24X12

92075-1690

$3.81

92171

CLAMP

92171-0791

$5.56

92172

SCREW,6X14

92172-0004

$1.98

92210

NUT

92210-1125

$3.63

92210A

NUT

92210-1323

$3.19
