2012 Kawasaki Vulcan® 1700 Voyager® Other Diagram

← All diagrams

Find the part on the Other diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

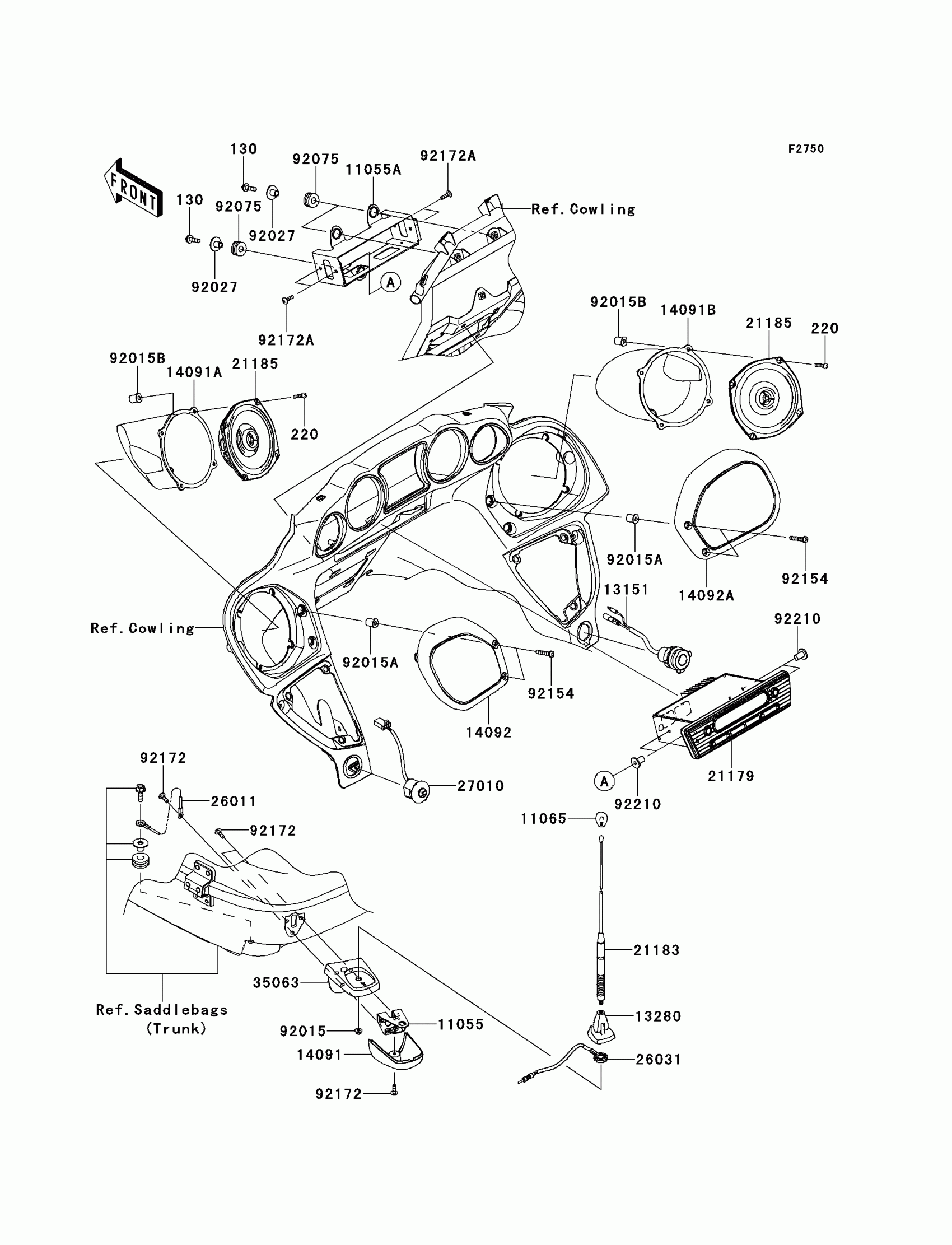

2012 Kawasaki Vulcan® 1700 Voyager® Other Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

220

SCREW-PAN-CROS,5X20

220AB0520

1
Out of stock

11055

BRACKET,ANTENNA STAY

11055-0683

1
Out of stock

11055A

BRACKET,AUDIO

11055-1510

1
Out of stock

11065

CAP,ANTENNA

11065-0305

1
Out of stock

13151

SWITCH-COMP

13151-0040

1
Out of stock

13280

HOLDER,ANTENNA

13280-0285

1
Out of stock

14091B

COVER,ANTENNA STAY

14091-1576

1
Out of stock

14091C

COVER,SPEAKER BOX,LH

14091-1773

1
Out of stock

14091D

COVER,SPEAKER BOX,RH

14091-1774

1
Out of stock

14092

COVER,SPEAKER,LH

14092-0811

1
Out of stock

14092A

COVER,SPEAKER,RH

14092-0812

1
Out of stock

21179C

RADIO-TUNER

21179-0059

1
Out of stock

21183

ANTENNA

21183-0006

1
Out of stock

21185

SPEAKER

21185-0001

1
Out of stock

26011

WIRE-LEAD,ANTENNA

26011-0287

1
Out of stock

26031

HARNESS,ANTENNA

26031-0735

1
Out of stock

27010

SWITCH,SUB LAMP

27010-0107

1
Out of stock

35063

STAY,ANTENNA

35063-0519

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0206

1
Out of stock

92172

SCREW,5X16

92172-0322

1
Out of stock

92172A

SCREW,5X18

92172-0428

1
Out of stock

92210

NUT,WELL,5MM

92210-0532

1
Out of stock
