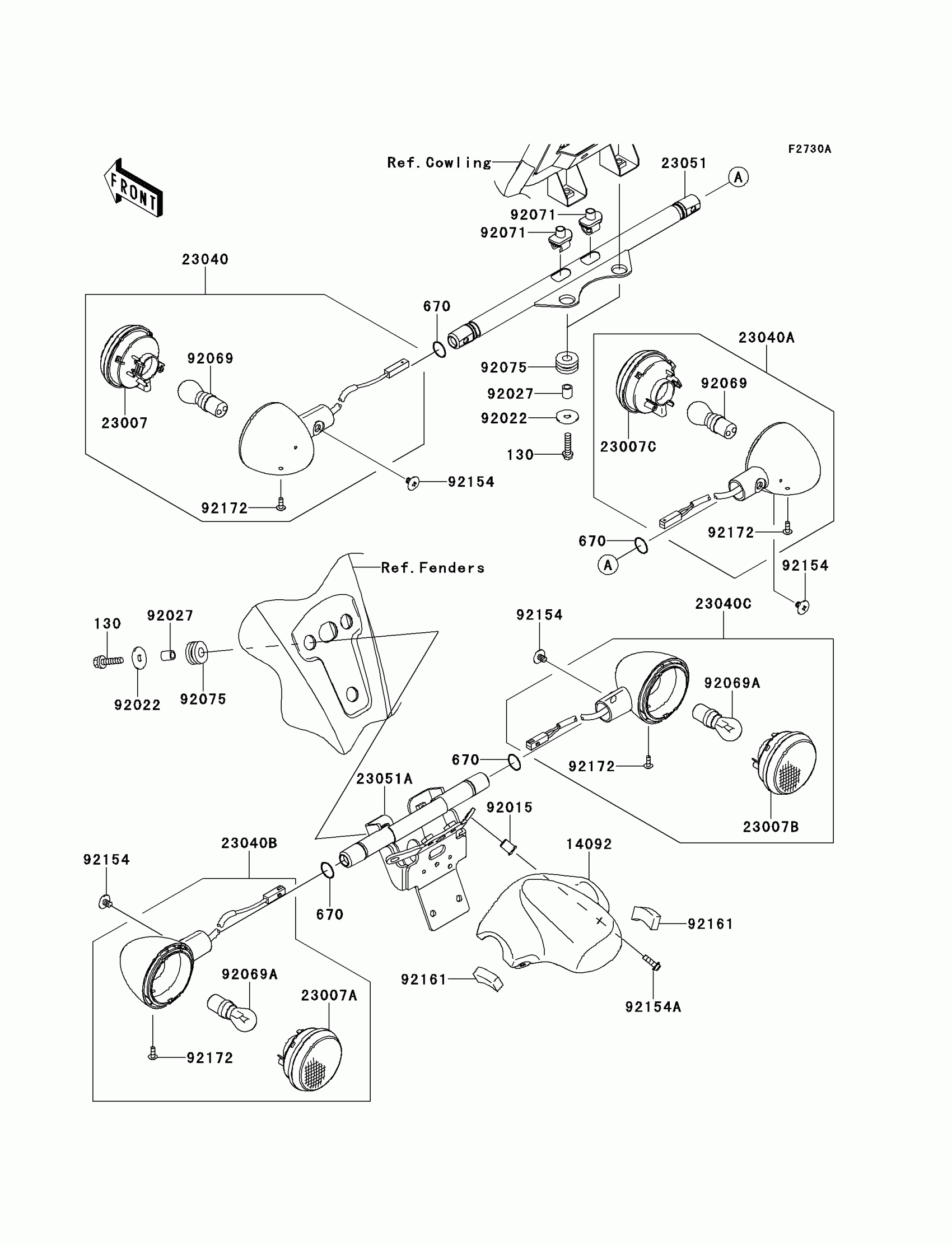

Kawasaki VULCAN® 1700 VOYAGER® ABS Turn Signals(BCF) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$1.92

670

O RING,16MM

670B2016

$1.20

14092

COVER,LICENSE LAMP

14092-0090

$57.77

23007

LENS-COMP,SIGNAL LAMP

23007-0119

$40.30

23007A

LENS-COMP,SIGNAL LAMP

23007-0123

$40.30

23007B

LENS-COMP,SIGNAL LAMP

23007-0124

$40.30

23007C

LENS-COMP,SIGNAL LAMP

23007-0128

$40.30

23040

LAMP-SIGNAL,FR,LH

23040-0081

$114.13

23040A

LAMP-SIGNAL,FR,RH

23040-0082

$114.13

23040B

LAMP-SIGNAL,RR,LH

23040-0087

$114.13

23040C

LAMP-SIGNAL,RR,RH

23040-0088

$114.13

23051

BRACKET-SIGNAL LAMP,FR

23051-0036

$165.93

23051A

BRACKET-SIGNAL LAMP,RR

23051-0038

$133.31

92015

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,7X24X1.6

92022-1160

$3.12

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,12V 21/5W

92069-063

$7.39

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SIGNAL LAMP

92071-0043

$4.81

92075

DAMPER,10X24X12

92075-1690

$3.97

92154

BOLT,6X8

92154-0097

$1.71

92154A

BOLT,SOCKET,5X16

92154-0209

$2.25

92161

DAMPER

92161-0841

$4.92

92172

SCREW,TAPPING,4X12

92172-0389

$3.12
